Helpful ReplyBumblebee (another NA -> turbo conversion)

Page: < 12345.. > >> Showing page 2 of 13
Author
Deco
MR2 Deity
  • Total Posts : 338
  • Scores: 44
  • Reward points: 3946
  • Joined: 2011/11/10 01:15:21
  • Location: Northern Hills District , NSW
  • Status: offline
Re: Bumblebee (another NA -> turbo conversion) 2013/05/28 17:58:01 (permalink)
0
Senor_2
Deco
Not to worry, ill just remove it. Like you, i really dont use it much either. How did you go re-routing the throttle cable to suit?

I can only pray it hasn't been tuned for higher octane fuel and has only been done to eliminate boost cut.


It was pretty straight forward, I just disconnected the throttle cable from the cruise actuator and had it going straight from the firewall to the throttle body; the only adjustment needed was to sit the little mounting bracket on the throttle body a little further back due to the length of the cable, I can show you at the next meet




Cheers! That would be greatly appreciated.

1994 GT with 96 3SGTE (217rwkw)


#16
MR2QIK
MR2 Deity
  • Total Posts : 2015
  • Scores: 106
  • Reward points: 3479
  • Joined: 2011/04/07 19:51:15
  • Location: Sydney NSW Australia
  • Status: offline
Re: Bumblebee (another NA -> turbo conversion) 2013/05/29 17:46:09 (permalink)
0
Is the muffler rusted or just the piping? You can easily replace the piping on the cheap.

MR2QIK - "The Little Car That Could"



320rwkw @ 19psi (pump fuel, no giggle gas)
11.96 @ 116mph (with 228rwkw)
#17
Deco
MR2 Deity
  • Total Posts : 338
  • Scores: 44
  • Reward points: 3946
  • Joined: 2011/11/10 01:15:21
  • Location: Northern Hills District , NSW
  • Status: offline
Re: Bumblebee (another NA -> turbo conversion) 2013/05/29 19:05:02 (permalink)
0
I havnt had a detailed look at it yet. It is rusted through on the piping just before it goes into the muffler, the muffler itself has some minor dents in it and the piping just before the flex section is pretty severely crushed.

Ill pop some photos of it up in the next 15 mins.

1994 GT with 96 3SGTE (217rwkw)


#18

Deco
MR2 Deity
  • Total Posts : 338
  • Scores: 44
  • Reward points: 3946
  • Joined: 2011/11/10 01:15:21
  • Location: Northern Hills District , NSW
  • Status: offline
Re: Bumblebee (another NA -> turbo conversion) 2013/05/29 19:24:20 (permalink)
0
Here are a couple of quick snaps.





1994 GT with 96 3SGTE (217rwkw)


#19
Senor_2
MR2 Deity
  • Total Posts : 600
  • Scores: 74
  • Reward points: 4558
  • Joined: 2011/04/07 19:51:15
  • Location: Sydney NSW Australia
  • Status: offline
Re: Bumblebee (another NA -> turbo conversion) 2013/05/30 08:07:17 (permalink)
0
Looks like it's seen better days, a lot of the crushed piping and dents are probably due to moving the half cut around; you'd probably be better off picking up a good cond 2nd hand exhaust for similar money to redoing all the piping, plus the condition of the muffler itself is questionable seeing as the piping is rusted all the way upto it, it looks like it might be quite loud (small single muffler system) as well if that's not what you're after.

A man in Dandism
==========================
SW20 Midship Runabout
#20
Deco
MR2 Deity
  • Total Posts : 338
  • Scores: 44
  • Reward points: 3946
  • Joined: 2011/11/10 01:15:21
  • Location: Northern Hills District , NSW
  • Status: offline
Re: Bumblebee (another NA -> turbo conversion) 2013/05/30 11:08:48 (permalink)
0
Absolutely. From what i can tell everything from the dump pipe backwards needs to be scrapped. Hopefully i can find an exhaust for it locally. Dudeman gave me a tip that RHD Japan are selling new fujitsubo exhausts for $900 delivered which is a whole lot cheaper that getting an exhaust shop to fabricate one.

I would prefer not to have a single exhaust as i prefer the look of the duel.....but im not really fussy at the moment. Any exhaust to pass the blue slip will suffice.

1994 GT with 96 3SGTE (217rwkw)


#21
Senor_2
MR2 Deity
  • Total Posts : 600
  • Scores: 74
  • Reward points: 4558
  • Joined: 2011/04/07 19:51:15
  • Location: Sydney NSW Australia
  • Status: offline
Re: Bumblebee (another NA -> turbo conversion) 2013/05/30 11:43:01 (permalink)
0
I've got a stock turbo back exhaust (currently being used by another member to clear a defect) that you can use for blueslip if you don't pick up something else in the meantime.
$900 delivered for a Fujitsubo sounds like a good deal, love mine.

A man in Dandism
==========================
SW20 Midship Runabout
#22
Deco
MR2 Deity
  • Total Posts : 338
  • Scores: 44
  • Reward points: 3946
  • Joined: 2011/11/10 01:15:21
  • Location: Northern Hills District , NSW
  • Status: offline
Re: Bumblebee (another NA -> turbo conversion) 2013/05/30 13:39:49 (permalink)
0
Thanks, ill keep that in mind. The exhaust isn't a pressing matter at the moment. Can be sorted once the engine is in my engine bay. The turbo looks like it may be on its way out from the video of them starting it up since it was blowing some smoke. So that will be the first problem i will solve before the exhaust.

I am going to try and aim to have the engine out of the halfcut this weekend so ill have a better idea of what im dealing with.

1994 GT with 96 3SGTE (217rwkw)


#23
Deco
MR2 Deity
  • Total Posts : 338
  • Scores: 44
  • Reward points: 3946
  • Joined: 2011/11/10 01:15:21
  • Location: Northern Hills District , NSW
  • Status: offline
Re: Bumblebee (another NA -> turbo conversion) 2013/06/09 19:33:17 (permalink)
0
Update:

The engine is now out of the half cut and is ready for basic part replacement e.g. Thermostat, timing belt, Hoses from Hell etc

The turbo clearly has a shot oil seal and the compressor wheel has minor left and right movement, but there doesn't seem to be any contact between the wheel and the housing. Hopefully just a seal rebuild.

Also had had my Walbro 255 come in the mail this week. I have also ordered a turbo back exhaust and i should be seeing that arrive from perth this coming week.

1994 GT with 96 3SGTE (217rwkw)


#24
Deco
MR2 Deity
  • Total Posts : 338
  • Scores: 44
  • Reward points: 3946
  • Joined: 2011/11/10 01:15:21
  • Location: Northern Hills District , NSW
  • Status: offline
Re: Bumblebee (another NA -> turbo conversion) 2013/06/12 14:59:48 (permalink)
0
My 3" turbo back exhaust arrived today. Just need to work out where to add in a cat.

Also here a couple more photos of the condition of the turbo.

1994 GT with 96 3SGTE (217rwkw)


#25
Deco
MR2 Deity
  • Total Posts : 338
  • Scores: 44
  • Reward points: 3946
  • Joined: 2011/11/10 01:15:21
  • Location: Northern Hills District , NSW
  • Status: offline
Re: Bumblebee (another NA -> turbo conversion) 2013/07/03 21:09:34 (permalink)
0
So in the last few weeks. Not a lot of progress has happened, mostly due to waiting for parts to arrive. Though a lot staring at wiring diagrams has been happening since i am re-pinning the NA body loom to suit the turbo as the turbos body loom has been cut.

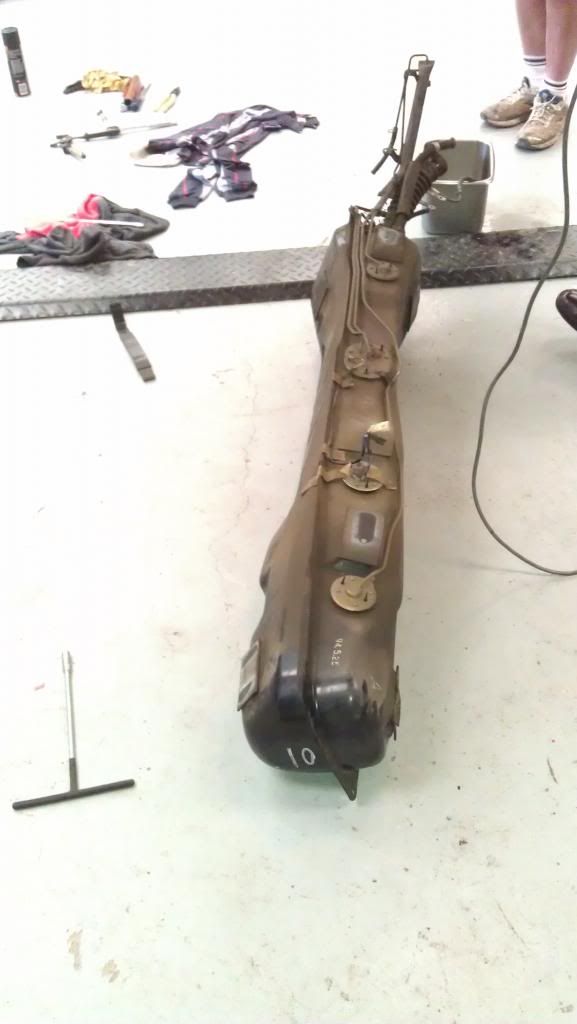

Nonetheless the NA engine has been removed from my Sdub (hopefully for the last time), the fuel tank removed, drained/cleaned, the Walbro installed and then bolted back in. The second picture shows all the gunk that was in my fuel tank which may be the source of the fuel issues i have been having.


Whilst the fuel tank was removed the turbo shifter cables were installed. The turbo was removed from the new motor and upon learning the cost of a rebuild. I had to find a better condition turbo, which luckily wasnt too difficult with many thanks to a forum member who had a recently rebuilt/low km ct20b that i was able to get my hands on.


I have also given the IC a quick clean and have installed it into my car. (This was very exciting for the fact that it will soon be a proper MR2)


The turbo has now been installed back on the engine along with a new thermostat, water pump and timing belt.
My dump pipe as we speak is off at an exhaust shop having a cat installed into it. With any hope the engine should be ready to be put into the car this weekend and then the wiring begins.

On a separate note. I found this whilst changing out the shifter cables. It was sitting under the cables directly beneath the center console storage box. Does anyone know what this is related to or knows whether this is stock or not? I did a search on the part number but apparently it doesn't exist.


1994 GT with 96 3SGTE (217rwkw)


#26
robk
MR2 Deity
  • Total Posts : 2172
  • Scores: 313
  • Reward points: 4896
  • Joined: 2011/04/07 19:51:15
  • Location: Sydney / Central Coast, NSW Australia
  • Status: offline
Re: Bumblebee (another NA -> turbo conversion) 2013/07/04 15:47:19 (permalink)
0
Fantastic progress mate!

There is an extensive build thread for my car here: http://www.mr2australia.com/mr2play/tm.aspx?m=18316
#27
SW20_3sgte
MR2 Scholar
  • Total Posts : 1337
  • Scores: 14
  • Reward points: 4539
  • Joined: 2011/04/07 19:51:15
  • Location: Rowville, Victoria
  • Status: offline
Re: Bumblebee (another NA -> turbo conversion) 2013/07/04 18:05:06 (permalink)
0
Nice project! reminds me of the days I was doing my Turbo conversion. if you can find a turbo body loom and fuse box from the same year it was just a case of plug and play for my turbo conversion wiring wise. The wiring loom will go all the way into the boot and attach to your lights I believe.

Will be sure to save you some time.

Really looking forward to seeing your progress. Its an awesome feeling when the motors in place.

1998 Toyota Caldina GTT Manual
#28
Deco
MR2 Deity
  • Total Posts : 338
  • Scores: 44
  • Reward points: 3946
  • Joined: 2011/11/10 01:15:21
  • Location: Northern Hills District , NSW
  • Status: offline
Re: Bumblebee (another NA -> turbo conversion) 2013/07/04 18:40:36 (permalink)
0
robk
Fantastic progress mate!


Thanks Rob. Wont be too much longer

SW20_3sgte
Nice project! reminds me of the days I was doing my Turbo conversion. if you can find a turbo body loom and fuse box from the same year it was just a case of plug and play for my turbo conversion wiring wise. The wiring loom will go all the way into the boot and attach to your lights I believe.

Will be sure to save you some time.

Really looking forward to seeing your progress. Its an awesome feeling when the motors in place.


It has been a lot of fun so far...except for the excitement of actually wanting to drive it.

It would be nice to find a complete body loom but nonetheless it doesnt seem too difficult to use the NA loom. The wires that are similar between the two just need to be re-pinned in the correct positions for ECU. Other than that from what i can tell the two white connecters in the fuse box should be plug and play and the EA1 connector is basically plug and play also save a couple of wires that are not similar between the two (probably not needed).

Cant explain how excited i am too see how different the car will be.

1994 GT with 96 3SGTE (217rwkw)


#29
artymr2
MR2 Deity
  • Total Posts : 1105
  • Scores: 44
  • Reward points: 6098
  • Joined: 2011/04/07 19:51:15
  • Location: WA
  • Status: offline
Re: Bumblebee (another NA -> turbo conversion) 2013/07/06 15:09:43 (permalink)
0
Good work!

Depending on the years of car/motor, you might need to do some re pinning in the rear fuse box connectors.

You will be amazed at the difference, it will be a different car.

Cheers

Black SW20 GT Turbo T-top


#30
