Re:EOI: Quick ratio steering pinion 2012/06/16 07:53:10 (permalink)
0
Soft parts so far, but no yet finished. Still getting excuses but still putting the pressure on to get them manufactured.


-Totenkopf-
Moderator
  • Total Posts : 1356
  • Scores: 18
  • Reward points: 5145
  • Joined: 2011/04/07 19:51:15
  • Location: Ipswich, Queensland, Australia
  • Status: offline
Re:EOI: Quick ratio steering pinion 2012/06/16 11:34:07 (permalink)
0
I hope they pull their finger out.  This is what happens when a manufacturer gets full payment up front.  The motivation disappears.  I've been burnt before, I hope this doesn't end up being another instance.
MANDALAY
MR2 Deity
  • Total Posts : 666
  • Scores: 41
  • Reward points: 2320
  • Joined: 2011/04/07 19:51:15
  • Location: CHELTENHAM VICTORIA Australia
  • Status: offline
Re:EOI: Quick ratio steering pinion 2012/06/17 18:21:09 (permalink)
0
Paid in advance ?
Hot damn they will do them in between jobs which stretches time :(


Marty J
MR2 Enthusiast
  • Total Posts : 146
  • Scores: 0
  • Reward points: 1527
  • Joined: 2011/05/11 22:13:12
  • Status: offline
Re:EOI: Quick ratio steering pinion 2012/07/17 02:22:16 (permalink)
0
UPDATE

To cut a long story short, the soft sample should be sent off to me tomorrow.
Marty J
MR2 Enthusiast
  • Total Posts : 146
  • Scores: 0
  • Reward points: 1527
  • Joined: 2011/05/11 22:13:12
  • Status: offline
Re:EOI: Quick ratio steering pinion 2012/07/21 00:54:16 (permalink)
0
UPDATE

Good news, I received the soft sample less than a hour ago. Providing the weather stays good I will install it today and report back tomorrow.

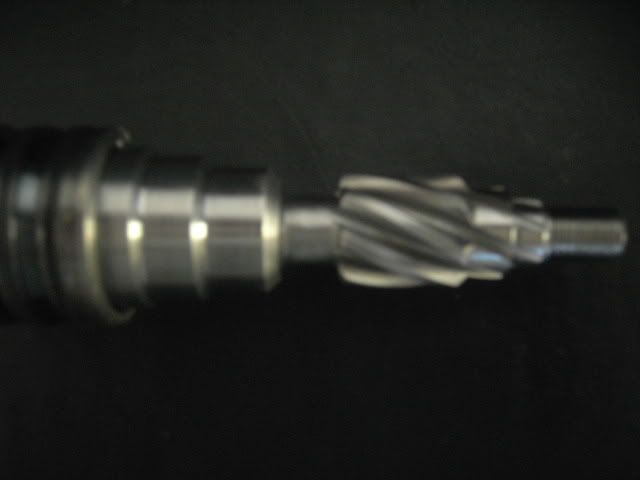

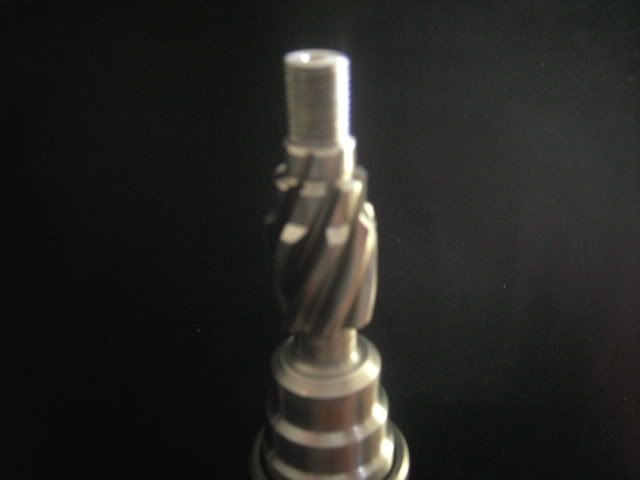

Below are photos of the upgraded power steering pinion soft sample.








Marty J
MR2 Enthusiast
  • Total Posts : 146
  • Scores: 0
  • Reward points: 1527
  • Joined: 2011/05/11 22:13:12
  • Status: offline
Re:EOI: Quick ratio steering pinion 2012/07/22 05:29:15 (permalink)
0
I tried the soft sample in my power steering rack, but not on my car. The new part fits, turns and has reduced the number of turns lock to lock with no problems.

However I have noticed three things that need to be addressed. With one of them I had a feeling that fluid may leak as the manufacturer has turned the helical part right down to the thread on the end. There should be a smooth section in between the helical and the thread that goes into a bearing.

Marty J
MR2 Enthusiast
  • Total Posts : 146
  • Scores: 0
  • Reward points: 1527
  • Joined: 2011/05/11 22:13:12
  • Status: offline
Re:EOI: Quick ratio steering pinion 2012/08/10 07:10:49 (permalink)
0
UPDATE

I am 99% sure that there are two types of power steering pinion on our SW20 MR2.

I have taken measurements from two revision two pinions and one revision three pinions. I have no reason to believe that revision one is any different to revision two and revision three, four and five are the same as each other.

I must admit that I am relying on some internet sites for information and doing a cross reference with them.

I will be in contact with the manufacturer on Monday as he is not there on Fridays.

I am glad that I noticed this before production started as there would have been a few annoyed MR2 owners out there.

Thank you for your patience.

Marty.
Marty J
MR2 Enthusiast
  • Total Posts : 146
  • Scores: 0
  • Reward points: 1527
  • Joined: 2011/05/11 22:13:12
  • Status: offline
Re:EOI: Quick ratio steering pinion 2012/09/05 07:39:38 (permalink)
0
Sorry for not getting back to you sooner. I had to move to a new house in short notice and then wait for a phone line to be installed. So my life has been hectic this past few weeks and now the baby is over due.

I have been in touch with the manufacturer about there being differences between pinions. In the past I asked about the MR2 power steering pinions and never got an answer on any forum. So this did set us back, but not by much.

I will be sending the other revision pinion for measurements and the soft sample to the manufacturer.

I have sent emails to people that have placed an order asking which revision MR2 they have as this is important that I know how many to produce for each revision. If anybody thinks they did not receive that email, then please let me know here as soon as possible.

Providing there are no more hiccups then I estimate that the pinions should be ready for October.
ashtwo
MR2 Aficionado
  • Total Posts : 373
  • Scores: 15
  • Reward points: 4402
  • Joined: 2011/04/07 19:51:15
  • Location: Melbourne Australia
  • Status: offline
Re:EOI: Quick ratio steering pinion 2012/09/05 14:15:17 (permalink)
0
Hi marty, I did not receive an email regarding different revisions
Marty J
MR2 Enthusiast
  • Total Posts : 146
  • Scores: 0
  • Reward points: 1527
  • Joined: 2011/05/11 22:13:12
  • Status: offline
Re:EOI: Quick ratio steering pinion 2012/09/05 21:04:11 (permalink)
0

I need to find out which revision MR2 everybody in the group buy has. If you are not sure of the revision, the year of the car will do. Please post your answer here. I will make a list on the forum of all the customers and the revisions they have.

There is a overlap regarding revisions for 1993. Revision 2 stopped around the month of September. I'm afraid you will need to find out for yourself if you have a 1993 MR2 and are not sure which revision. The car could have been modified by a previous owner, so don't assume just by something like the type of rear lights that are on the MR2.

For those who have bought a spare power steering rack for this project, you will need to know which revision it came from. If you do not know then you will need to take measurements of the pinion. Please send me a pm for more info.

If you do happen to get it wrong, then all is not lost. It will mean that you will have to purchase new bearings which are different in size. This means that if you change the bearings you could use a revision 2 in a revision 4, but it is more expense.

If I have not received an answer from any customer by the start of October then I will send them a pinion for revision 1 & 2, as I am sure most of us we would agree that we have waited long enough.

Thanks to the people who have replied to the email I sent a while back.
Can I ask all of you who are in the group buy to reply on this forum as to which pinion you require. This is so there is no misunderstanding on both sides.

For revision 1 and 2 = 1989 - 1993 = pinion A.

For revision 3,4 and 5 = 1993 - 1999 = pinion B

Thank you.
dwyer125
MR2 Enthusiast
  • Total Posts : 218
  • Scores: 1
  • Reward points: 4121
  • Joined: 2011/04/07 19:51:15
  • Location: Geelong/Warrnambool Vic Australia
  • Status: offline
Re:EOI: Quick ratio steering pinion 2012/09/05 22:39:44 (permalink)
0
Pinion A please

So the only difference is bearing size? Is pinion B a thicker shaft? If so by how much?
October sounds good. Will hope to have my car running by then :)
WHITCHY
MR2 Aficionado
  • Total Posts : 180
  • Scores: 10
  • Reward points: 5932
  • Joined: 2011/04/07 19:51:15
  • Status: offline
Re:EOI: Quick ratio steering pinion 2012/09/06 08:06:17 (permalink)
0
Pinion B please.

Thanks dude.
5SGTE
MR2 Deity
  • Total Posts : 1909
  • Scores: 163
  • Reward points: 4724
  • Joined: 2011/04/07 19:51:15
  • Location: qld Australia
  • Status: offline
Re:EOI: Quick ratio steering pinion 2012/09/06 18:45:39 (permalink)
0
Pinion A for me thanks.
Marty J
MR2 Enthusiast
  • Total Posts : 146
  • Scores: 0
  • Reward points: 1527
  • Joined: 2011/05/11 22:13:12
  • Status: offline
Re:EOI: Quick ratio steering pinion 2012/09/06 22:16:46 (permalink)
0
I am currently experiencing a technical problem sending my emails. If anybody needs to ask me a question regarding the group buy, please use the pm for now, thanks.

Service has been resumed.
post edited by Marty J - 2012/09/09 05:47:32
Marty J
MR2 Enthusiast
  • Total Posts : 146
  • Scores: 0
  • Reward points: 1527
  • Joined: 2011/05/11 22:13:12
  • Status: offline
Re:EOI: Quick ratio steering pinion 2012/09/06 22:24:57 (permalink)
0
dwyer125 - pinion A
Whitchy - pinion B
5SGTE - pinion A
lmt - pinion A
ashtwo - pinion A
-Totenkopf- - pinion A
WIDEMR - pinion ?
Twincams - pinion ?
Lemoncake - pinion ?
post edited by Marty J - 2012/09/27 05:50:18
