XS power 3" dump with 120cell cat on fleabay

Page: << < ..678910.. > >> Showing page 7 of 11 - Powered by APG vNext Trial
Author
Post
Essentials Only Full Version
purple5ive
MR2 Deity
  • Total Posts : 2337
  • Scores: 45
  • Reward points: 2132
  • Joined: 2011/04/07 19:51:15
  • Location: melbourne vic Australia
  • Status: offline
RE: XS power 3" dump with 120cell cat on fleabay 2010/11/26 20:36:29 (permalink)
0
quote:
Originally posted by RobYob

Recon you could bring it up to HH so I can have a look please?


me , if so yeah can do if i dont forget
#91
cogs
MR2 Deity
  • Total Posts : 511
  • Scores: 40
  • Reward points: 5597
  • Joined: 2011/04/07 19:51:15
  • Location: Vic Australia
  • Status: offline
RE: XS power 3" dump with 120cell cat on fleabay 2010/11/26 21:57:34 (permalink)
0

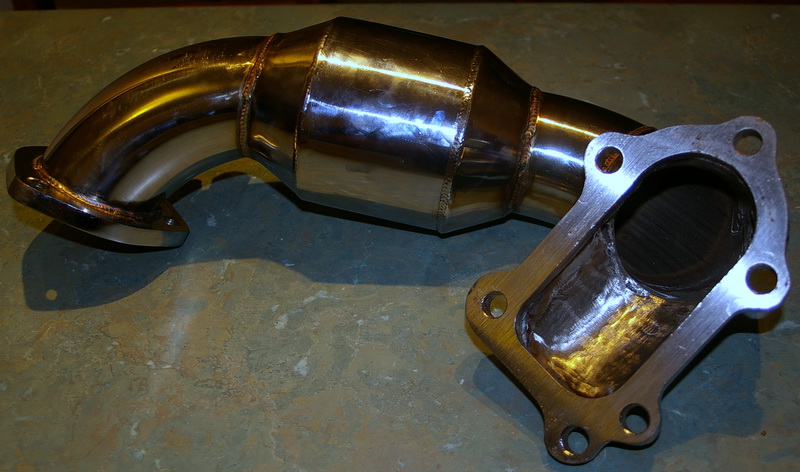

Some pics of the pipes:

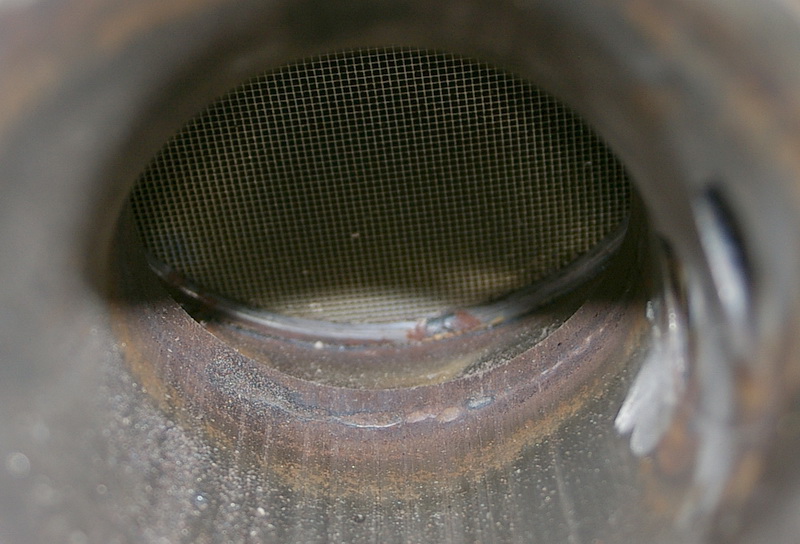

Cat:

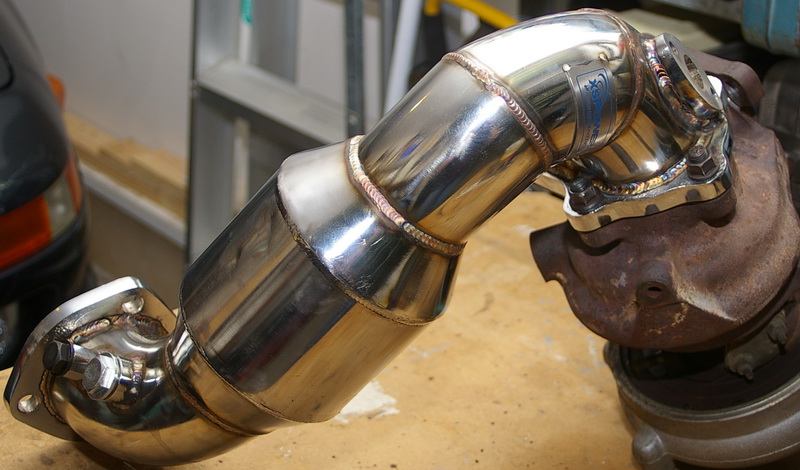

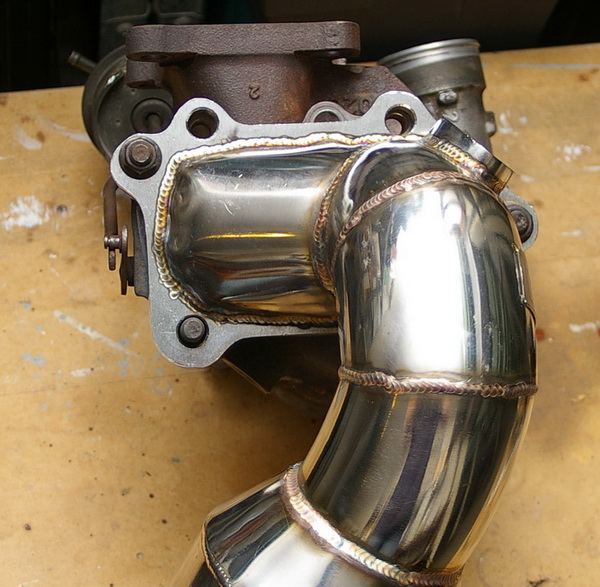

Bolted to a CT26, the gasket is from a CT20B so you can see where the stud is that needs to be removed:





And the factory gasket sitting on the turbo end flange:

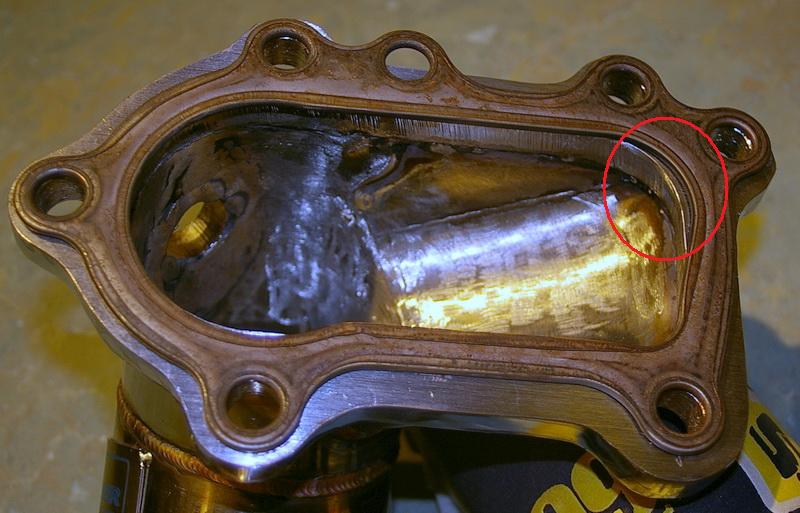

The bit circled in red is right next to the wastegate flap. I found that the flap could catch on this part of the flange and get stuck open. I'd suggest to put your factory gasket on there and mark that small area so you can remove it with a die grinder prior to fitment. Shouldn't take too long at all.

I'm about to get some postage quotes then I'll PM final figures.
#92
zmit
MR2 Aficionado
  • Total Posts : 664
  • Scores: 15
  • Reward points: 5005
  • Joined: 2011/04/07 19:51:15
  • Location: Adelaide SA
  • Status: offline
RE: XS power 3" dump with 120cell cat on fleabay 2010/11/27 02:11:01 (permalink)
0
thank you for that cogs.

so, to clarify, this dump pipe is designed for a gen 2 (CT26) or gen 3 (CT20B)?
#93

artymr2
MR2 Deity
  • Total Posts : 1105
  • Scores: 45
  • Reward points: 7867
  • Joined: 2011/04/07 19:51:15
  • Location: WA
  • Status: offline
RE: XS power 3" dump with 120cell cat on fleabay 2010/11/27 02:17:23 (permalink)
0
looks great, thanks cogs!!

some nice bling for the motor!!

Cheers
#94
RobYob
MR2 Aficionado
  • Total Posts : 631
  • Scores: 5
  • Reward points: 1346
  • Joined: 2011/04/07 19:51:15
  • Location: Melbourne Vic Australia
  • Status: offline
RE: XS power 3" dump with 120cell cat on fleabay 2010/11/27 07:34:49 (permalink)
0
quote:
Originally posted by purple5ive

quote:
Originally posted by RobYob

Recon you could bring it up to HH so I can have a look please?


me , if so yeah can do if i dont forget


Thanks
#95
2hardtop
MR2 Aficionado
  • Total Posts : 547
  • Scores: 4
  • Reward points: 0
  • Joined: 2011/04/07 19:51:15
  • Location: NSW Australia
  • Status: offline
RE: XS power 3" dump with 120cell cat on fleabay 2010/11/27 08:09:31 (permalink)
0
quote:
Originally posted by zmit

thank you for that cogs.

so, to clarify, this dump pipe is designed for a gen 2 (CT26) or gen 3 (CT20B)?


Yes designed for gen2 CT26
but will fit gen3 CT20B if you remove the stud that the dump pipe flange does not have provision for
see second top hole of the gasket in cogs last pic above
#96

purple5ive
MR2 Deity
  • Total Posts : 2337
  • Scores: 45
  • Reward points: 2132
  • Joined: 2011/04/07 19:51:15
  • Location: melbourne vic Australia
  • Status: offline
RE: XS power 3" dump with 120cell cat on fleabay 2010/11/27 11:41:03 (permalink)
0
collin replied to your email
can pick up tommorow, any chance you can help me out with the die grinder part as i dont have one
the dump looks like the usual ebay spec one lets hope it wont crack like the other ones and this catalytic core holds up
did they come with the support brackets as shown in the ebay page or is it just the dump pipe by itself



on a side note - i went to the epa Victoria building at rosanna yesterday on a site visit and let me tell you the amount of testing poo poo they have there is unbelievable good enough reason to get one of these lol
cheers
#97
zmit
MR2 Aficionado
  • Total Posts : 664
  • Scores: 15
  • Reward points: 5005
  • Joined: 2011/04/07 19:51:15
  • Location: Adelaide SA
  • Status: offline
RE: XS power 3" dump with 120cell cat on fleabay 2010/11/27 12:19:26 (permalink)
0
Ah. i see what he did there now.
it's the CT20B gasket that threw me out in the picture above.
#98
cogs
MR2 Deity
  • Total Posts : 511
  • Scores: 40
  • Reward points: 5597
  • Joined: 2011/04/07 19:51:15
  • Location: Vic Australia
  • Status: offline
RE: XS power 3" dump with 120cell cat on fleabay 2010/11/27 15:32:03 (permalink)
0
quote:
Originally posted by purple5ive

collin replied to your email
did they come with the support brackets as shown in the ebay page or is it just the dump pipe by itself

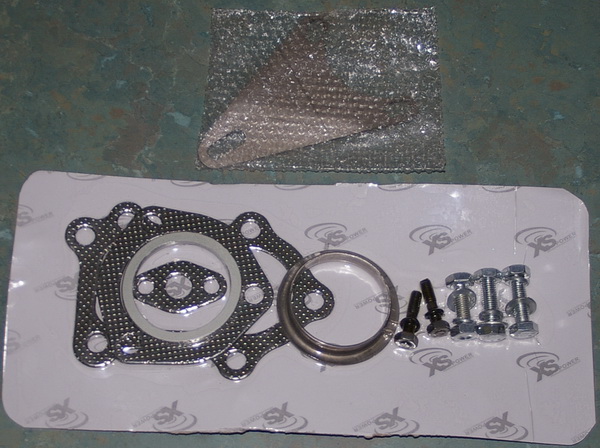

Yep, they came with all the parts shown in the eBay listing. There's the pipe itself, plugs for the two bungs at the bottom, gaskets for each end and the O2 sensor flange, bolts/nuts/washers for the outlet flange, studs/nuts/washers for the O2 sensor, and the stainless steel support plate.

It's incredibly good value, even for a Chinese made product!

#99
just_ace
Moderator
  • Total Posts : 2508
  • Scores: 89
  • Reward points: 4598
  • Joined: 2011/04/07 19:51:15
  • Location: perth wa Australia
  • Status: offline
RE: XS power 3" dump with 120cell cat on fleabay 2010/11/27 16:10:08 (permalink)
0
that comes with a more comprehensive fitting kit than i've ever seen.

hopefully they only check what's on the list when i go over the pits the second time, if not i'll be in for the next group buy.....hah
#100
zmit
MR2 Aficionado
  • Total Posts : 664
  • Scores: 15
  • Reward points: 5005
  • Joined: 2011/04/07 19:51:15
  • Location: Adelaide SA
  • Status: offline
RE: XS power 3" dump with 120cell cat on fleabay 2010/11/27 21:06:29 (permalink)
0
i really hope it still fits with my aircon compressor....
#101
khiem
MR2 Enthusiast
  • Total Posts : 60
  • Scores: 1
  • Reward points: 1232
  • Joined: 2011/04/07 19:51:15
  • Location: Brisbane QLD Australia
  • Status: offline
RE: XS power 3" dump with 120cell cat on fleabay 2010/11/28 02:48:01 (permalink)
0
will definitely be interested if there is ever a second batch
#102
cogs
MR2 Deity
  • Total Posts : 511
  • Scores: 40
  • Reward points: 5597
  • Joined: 2011/04/07 19:51:15
  • Location: Vic Australia
  • Status: offline
RE: XS power 3" dump with 120cell cat on fleabay 2010/11/28 11:54:27 (permalink)
0
quote:
Originally posted by zmit

i really hope it still fits with my aircon compressor....

The pipe is shaped where it exits the turbo at an angle towards the front of the car. This appears to be designed for clearance by passing between the back of the A/C compressor and the firewall.

Looking at the eBay listing there is definitely an A/C compressor on the Celica pictured, and you can see that the pipe passes between this and the radiator.

I probably won't get time to fit mine and verify the clearance for a while, so if anyone gets it fitted in the meantime please post up some pics showing the A/C clearance.
#103
MRGen3Turbo
MR2 Enthusiast
  • Total Posts : 269
  • Scores: 1
  • Reward points: 1169
  • Joined: 2011/04/07 19:51:15
  • Location: Victoria Australia
  • Status: offline
RE: XS power 3" dump with 120cell cat on fleabay 2010/11/28 14:32:50 (permalink)
0
Amazing price but I wonder how long the cat will last being so close to the turbo.
#104
artymr2
MR2 Deity
  • Total Posts : 1105
  • Scores: 45
  • Reward points: 7867
  • Joined: 2011/04/07 19:51:15
  • Location: WA
  • Status: offline
RE: XS power 3" dump with 120cell cat on fleabay 2010/11/28 15:44:38 (permalink)
0
isn't this just a copy of a big brand dump/cat (cant recall the name)? So i think longevitiy should be fine.

If mine arrives before the weekend, i should be able to fit it up to confirm the ac clearance and post up some pics.

cheers
#105
