RE: DASIC1 SW20
2010/12/30 22:10:22
(permalink)
|
B24
Supporter
- Total Posts : 2405
- Scores: 278
- Reward points: 5936
- Joined: 2011/04/07 19:51:15
- Location: Sydney NSW Australia
- Status: offline
RE: DASIC1 SW20
2010/12/31 10:07:58
(permalink)
Looks very nice. Great to see an engine bay completely clear to see what can be changed if required. Looks like you can really fit a decent cooler beside the driver if you fabricate ducting to suit.
AS for ATS, I suprised it was delivered within 12 months!
Can you provide more details on the exhaust manifold? Nice unit.
|
dasic1
Moderator
- Total Posts : 1323
- Scores: 83
- Reward points: 5910
- Joined: 2011/04/07 19:51:15
- Location: melbourne vic Australia
- Status: offline
RE: DASIC1 SW20
2010/12/31 10:26:09
(permalink)
The manifold is a Greddy one that came with the T67. I had to change the flange that bolts to the head because it was off a gen2.
Have you had problems with ATS? I sent them a email to ask if they had them in stock before I brought them. They said the axle cages would be two weeks and it was about that before they got sent. Did take about 20 days for them to get hear.
this is the response I got about the gasket
"You can port match to the gasket if you want, no harm in that. Check that the gasket matches the intake manifold and head as well. Usually gaskets are slightly oversize so they do not obstruct the port."
Just dont know why they wouldn't make them the right size to start with.
|
kameleon
Supporter
- Total Posts : 2733
- Scores: 106
- Reward points: 6018
- Joined: 2011/04/07 19:51:15
- Location: melbourne vic Australia
- Status: offline
RE: DASIC1 SW20
2010/12/31 11:56:29
(permalink)
but its ats it must be good. Thats why i bought the stronger cv kit from tcs motorsport. Was here within the week.
|
B24
Supporter
- Total Posts : 2405
- Scores: 278
- Reward points: 5936
- Joined: 2011/04/07 19:51:15
- Location: Sydney NSW Australia
- Status: offline
RE: DASIC1 SW20
2010/12/31 15:15:14
(permalink)
It was one of them which was a problem. ATS from memory. After two months I made a claim with my credit card provider. It was then here within a week. Go figure..
Also had delays with Hux regarding alternator bracket. Over two months after payment and three emails and now looking at over 3 months for Lower contol arm links from Southwest. Some people have been waiting for 8 months for their links.
Quite frankly I have lost trust in dealing with the U.S. crew.
Just regarding the spacer, are they really all that useful? As for the adjustments required, I can see that being right as some may have standard ports and other may have modified units.
The car is coming along very nice. I will have to do the same to mine one of these days.
|
Bionikal
MR2 Scholar
- Total Posts : 1003
- Scores: -171
- Reward points: 2607
- Joined: 2011/04/07 19:51:15
- Status: offline
RE: DASIC1 SW20
2010/12/31 15:50:18
(permalink)
spacer is pretty much only to remove TVIS. The material weakens the transmission of heat but you have several nice big bolts running through anyway.. that and the air actually travels through it aswell.
So phenolic spacers, not a whole lot of good, any spacer, useful for removing tvis.
|
dasic1
Moderator
- Total Posts : 1323
- Scores: 83
- Reward points: 5910
- Joined: 2011/04/07 19:51:15
- Location: melbourne vic Australia
- Status: offline
RE: DASIC1 SW20
2010/12/31 17:49:48
(permalink)
B24 yours was through TCS (I seen your posts on US site)
I havent really delt much with the US for the rebuild apart from this stuff from ATS and the alt bracket and havent had a problem. The rest has come through Dylan
It only cost $85ish for the gasket (thats all it really is on the gen3)so I thought id give it a go.
Maybe your right about the adjustments. It is 6mm thick so if it was larger than the ports it could cause some flow disruption.
|
B24
Supporter
- Total Posts : 2405
- Scores: 278
- Reward points: 5936
- Joined: 2011/04/07 19:51:15
- Location: Sydney NSW Australia
- Status: offline
RE: DASIC1 SW20
2011/01/01 09:47:32
(permalink)
quote:
Originally posted by dasic1
B24 yours was through TCS (I seen your posts on US site)
I havent really delt much with the US for the rebuild apart from this stuff from ATS and the alt bracket and havent had a problem. The rest has come through Dylan
It only cost $85ish for the gasket (thats all it really is on the gen3)so I thought id give it a go.
Maybe your right about the adjustments. It is 6mm thick so if it was larger than the ports it could cause some flow disruption.
Thanks Dasic for the update on who Im actually buying things off!! Should be easy enough to port match it. Hope to see it all together soon enough. What have you done to the fuel system?
|
dasic1
Moderator
- Total Posts : 1323
- Scores: 83
- Reward points: 5910
- Joined: 2011/04/07 19:51:15
- Location: melbourne vic Australia
- Status: offline
RE: DASIC1 SW20
2011/01/01 22:04:43
(permalink)

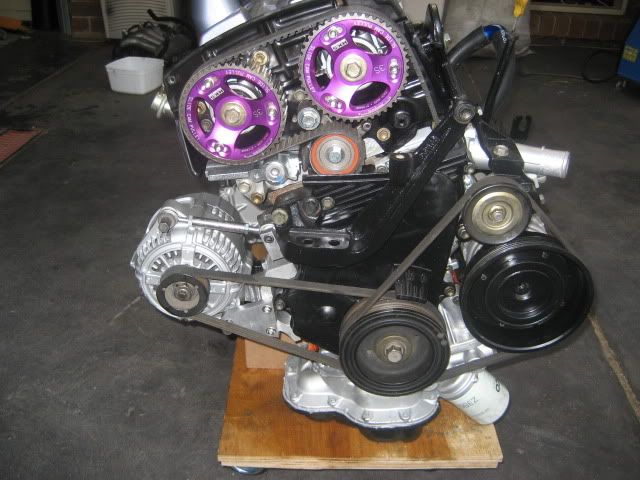

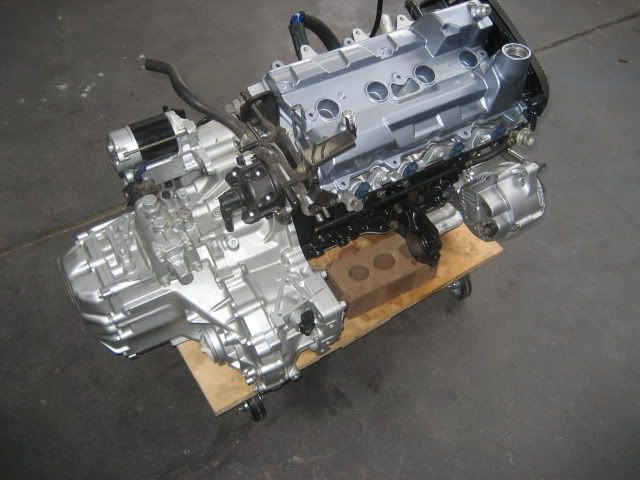

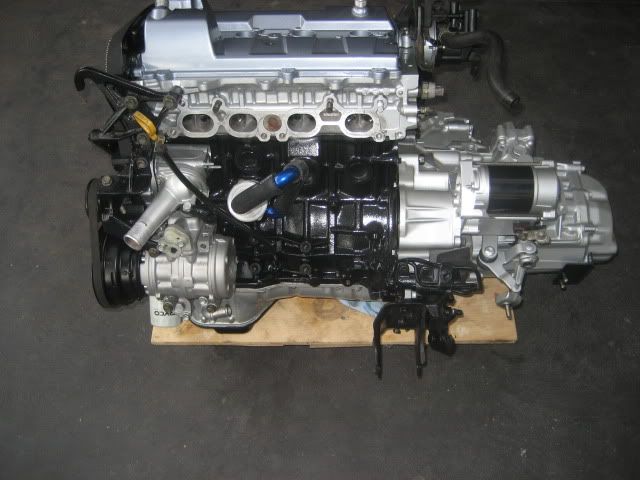

I have 800cc sard and a walbro pump. All the lines are stock, not sure if ill replace them yet as im thinking of doing something like the wolfkatz high hp kit and using E85. Got a little more done today
|
artymr2
MR2 Deity
- Total Posts : 1105
- Scores: 45
- Reward points: 7867
- Joined: 2011/04/07 19:51:15
- Location: WA
- Status: offline
RE: DASIC1 SW20
2011/02/01 01:55:41
(permalink)
wow, that looks fantastic, amazingly clean. is the valve cover same colour as the car?
|
MANDALAY
MR2 Deity
- Total Posts : 666
- Scores: 41
- Reward points: 2320
- Joined: 2011/04/07 19:51:15
- Location: CHELTENHAM VICTORIA Australia
- Status: offline
RE: DASIC1 SW20
2011/02/01 13:14:02
(permalink)
Looks very nice.
Love seeing clean engines.
BTW just remember when earthing take the paint off especially the main one on the gear box
|
stuka
MR2 Deity
- Total Posts : 1183
- Scores: 113
- Reward points: 4767
- Joined: 2011/04/07 19:51:15
- Status: offline
RE: DASIC1 SW20
2011/02/01 16:42:36
(permalink)
excellent work there, looks great
|
dasic1
Moderator
- Total Posts : 1323
- Scores: 83
- Reward points: 5910
- Joined: 2011/04/07 19:51:15
- Location: melbourne vic Australia
- Status: offline
RE: DASIC1 SW20
2011/02/01 21:22:06
(permalink)

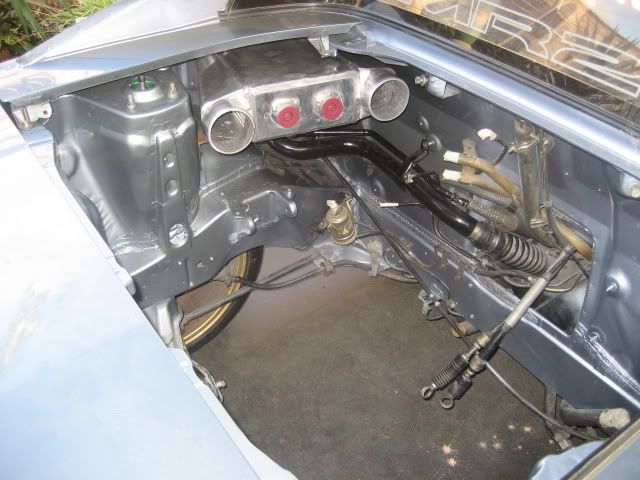

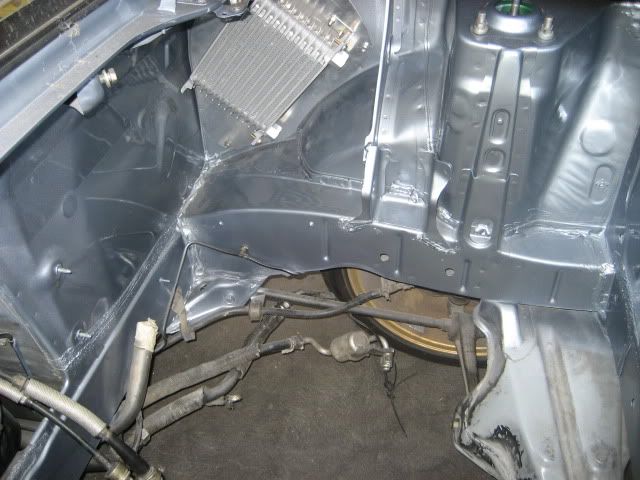

artymr2 Thanks, yeah the rocker cover is the same colour as the car MANDALAY Thanks, I just hope I can keep it clean for a long time, I couldnt beleve how dirty it was. And yeah ill make sure I grind some paint of where I ground it stuka Thanks Got the oil cooler mounted and started on the intercooler. Im thinking about putting a fan on the oil cooler as well. Im going to modify the fuel filler so the air filter can sit under the intercooler
|
MANDALAY
MR2 Deity
- Total Posts : 666
- Scores: 41
- Reward points: 2320
- Joined: 2011/04/07 19:51:15
- Location: CHELTENHAM VICTORIA Australia
- Status: offline
RE: DASIC1 SW20
2011/02/01 21:43:50
(permalink)
How big is the oil cooler ? If you have time and really want to and the oil cooler isn't to big you might get 2 fans in there like mine  There is also a small 4inch to work as per normal by the engine lid sensor. At least there will be some circulation. Also the OEM car fan computer there is a pin number 8 which if you connect an earth it will bypass the sensor and turn on the fan. My fan on the oil cooler can always be on because its the SC cooler and the colder the better but my MoTec turns it on at 55 degrees. If you have a fan it will have a predetermined temp range to turn on so reall there isn't much fan movement in your bay. Being a turbo i still would want a fan. BTW are you going to use a aftermarket ECU ? If so see if it can handle a wide band knock sensor. Its Toyota part Wide band OEM knock sensor  and do check your fuel line before you put the engine in. Last thing you want is a leak Also we checked that we had no fuel line leaks :)
|
B24
Supporter
- Total Posts : 2405
- Scores: 278
- Reward points: 5936
- Joined: 2011/04/07 19:51:15
- Location: Sydney NSW Australia
- Status: offline
RE: DASIC1 SW20
2011/02/01 21:47:07
(permalink)
I envious, I might pull my engine out next week!
Great work mate
|
