Tom Tucker
MR2 Enthusiast
- Total Posts : 22
- Scores: 0
- Reward points: 0
- Joined: 2011/04/07 19:51:15
- Status: offline
RE: My Money Pit - SW20
2010/04/28 19:04:49
(permalink)
So hard to get power out of aren't they?!
Goodluck with it
|
beagle_senior
SA Moderator
- Total Posts : 882
- Scores: 10
- Reward points: 2418
- Joined: 2011/04/07 19:51:15
- Location: Mount Barker SA Australia
- Status: offline
RE: My Money Pit - SW20
2010/04/28 19:17:30
(permalink)
quote:
Originally posted by Tom Tucker
So hard to get power out of aren't they?!
Goodluck with it
yeah seems to be the case, then you look at james (totenkopf) and anthony (51CMR), and hayley (70Ymr) and the money they have spent, it begs to differ, why its so hard to get the power from the 2L Toyota motor, when its rather easy to do with the nissan sr20??
|
just_ace
Moderator
- Total Posts : 2508
- Scores: 89
- Reward points: 4598
- Joined: 2011/04/07 19:51:15
- Location: perth wa Australia
- Status: offline
RE: My Money Pit - SW20
2010/04/28 19:35:15
(permalink)
put a little ATA cooler in not so good airflow place on your sr20 powered nissan and you'll prob notice it's hard to get power as well.
|
beagle_senior
SA Moderator
- Total Posts : 882
- Scores: 10
- Reward points: 2418
- Joined: 2011/04/07 19:51:15
- Location: Mount Barker SA Australia
- Status: offline
RE: My Money Pit - SW20
2010/04/28 20:44:39
(permalink)
|
nuk1ear
MR2 Aficionado
- Total Posts : 680
- Scores: 9
- Reward points: 4665
- Joined: 2011/04/07 19:51:15
- Status: offline
RE: My Money Pit - SW20
2010/04/29 00:34:59
(permalink)
really interested to see how you mount the intercooler and the heat exchanger. I mean brackets etc, not just the location :)
|
beagle_senior
SA Moderator
- Total Posts : 882
- Scores: 10
- Reward points: 2418
- Joined: 2011/04/07 19:51:15
- Location: Mount Barker SA Australia
- Status: offline
RE: My Money Pit - SW20
2010/04/29 06:49:11
(permalink)
ill try and take a few pics this arvo for you its not an A grade mechanic mount by any means, but basically, i taped threaded holes into the back of the reinforcement bar, and got a few strips of metal, cut them to size ad bolted it all together..
|
nuk1ear
MR2 Aficionado
- Total Posts : 680
- Scores: 9
- Reward points: 4665
- Joined: 2011/04/07 19:51:15
- Status: offline
RE: My Money Pit - SW20
2010/05/14 21:32:17
(permalink)
any news on those pics of the HE and cooler mounting?
|
beagle_senior
SA Moderator
- Total Posts : 882
- Scores: 10
- Reward points: 2418
- Joined: 2011/04/07 19:51:15
- Location: Mount Barker SA Australia
- Status: offline
RE: My Money Pit - SW20
2010/05/15 08:47:17
(permalink)
not really... the project has pretty much come to a stand still for a few months, i just dont have time atm, as we are trying to plan for a wedding in september, and im going away with work quite often, so the HE and pump are both installed, but i have to pull the engine out when i get around to fixing things up, then once its back in i will sort something out with the cooler...
Did you end up getting a kit yet?
|
beagle_senior
SA Moderator
- Total Posts : 882
- Scores: 10
- Reward points: 2418
- Joined: 2011/04/07 19:51:15
- Location: Mount Barker SA Australia
- Status: offline
RE: My Money Pit - SW20
2011/04/01 15:46:18
(permalink)

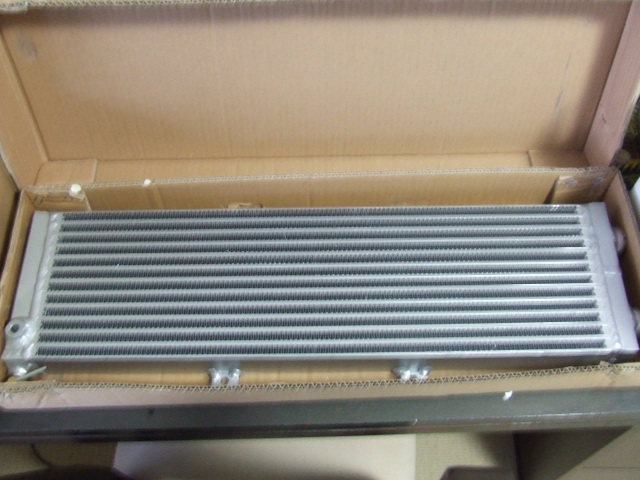

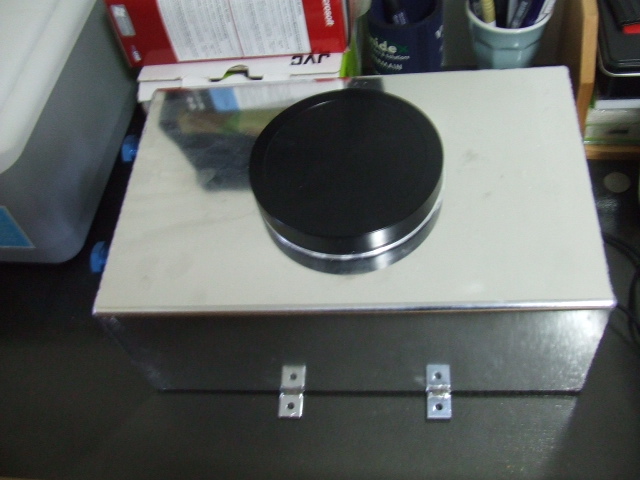

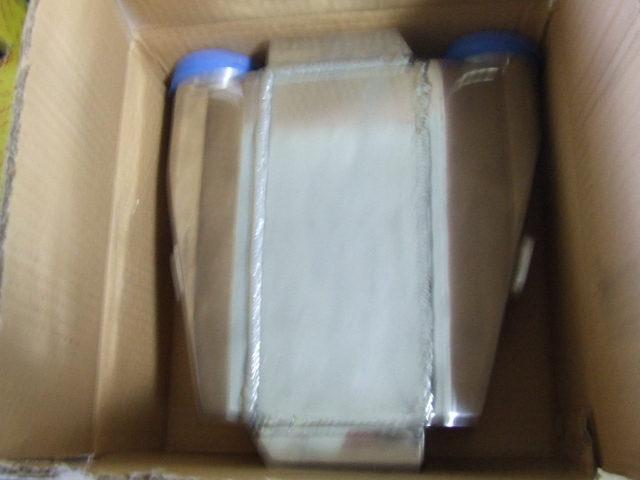

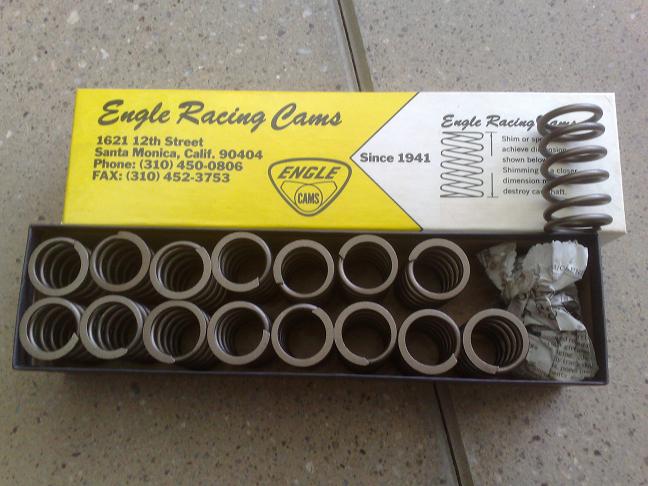

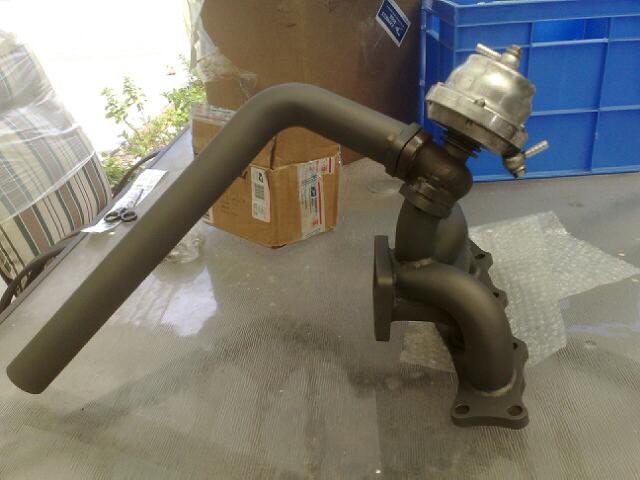

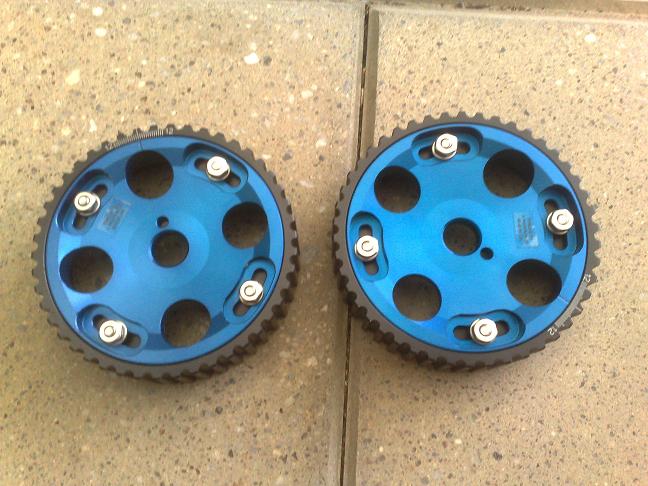

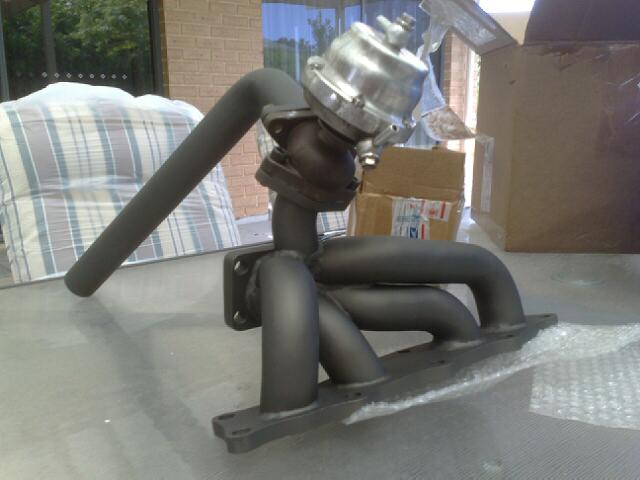

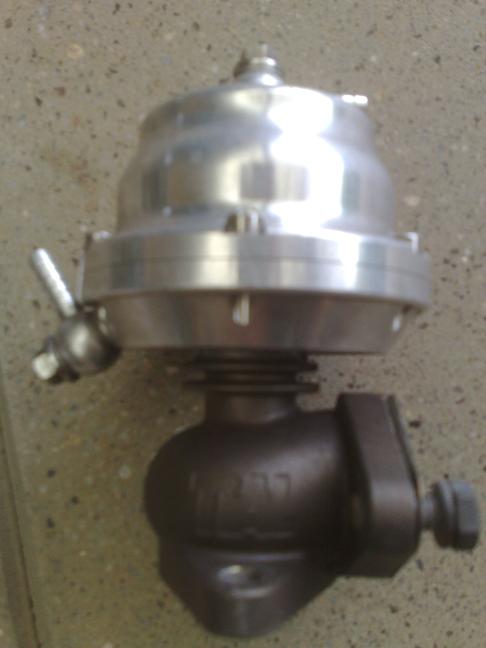

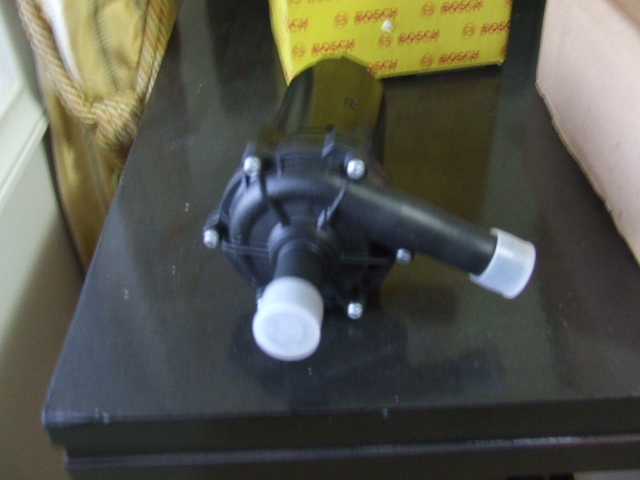

ok its been a while since i updated this so here are a few pics of some purchases, and i am looking at getting a heap of stuff from mvp motorsports in the US when im over there... bosch cobra water pump  water reservoir for cooler setup  intercooler  heat exchanger  38mm tial wastegate  fidenza cam gears  engle valve springs  New exhaust manifold with wastegate attached
|
5SGTE
MR2 Deity
- Total Posts : 1909
- Scores: 163
- Reward points: 4724
- Joined: 2011/04/07 19:51:15
- Location: qld Australia
- Status: offline
RE: My Money Pit - SW20
2011/04/01 16:47:19
(permalink)
Man thats the same ghey heat exchanger I've got. Its not a true duel pass. James n I took one if the inlets and moved it to the other side making it a x flow. Was the only way to make it work. In saying all that it is a nice thick freaker.
|
beagle_senior
SA Moderator
- Total Posts : 882
- Scores: 10
- Reward points: 2418
- Joined: 2011/04/07 19:51:15
- Location: Mount Barker SA Australia
- Status: offline
RE: My Money Pit - SW20
2011/03/13 12:07:03
(permalink)
ok i am currently in America, and have been since January, finally get home in April, but I cam over with a shopping list, and here is what will be at home waiting to be installed:
TRD Engine Mounts, ST Sway Bars, Tanabe Front Under Brace Bar, Mishimoto Alloy Radiator, Mishimoto Fans and Shroud, 1mm o/s ferrea comp plus valves, ATS Racing inner CV joints, Mueller Lightened Flywheel, RPS Max 6-puck clutch, Ferrea valve locks, ferrea valve seals, Gsc 274 degree cams, New OEM Retainers, RacerX Alloy Alternator Bracket, Speed Source Top feed rail, 1000cc Injectors, Few bits of new interior plastics, Aeromotive 340lph intank fuel pump
and last but not least, a new Precision Dual Ball Bearing Billet 6262 Turbo, .63 A/R T3 Flange, SP Cover
Let me just say, I can't wait to get home and get wroking on this again....
|
MRTurbo
SA Moderator
- Total Posts : 2894
- Scores: 81
- Reward points: 4791
- Joined: 2011/04/07 19:51:15
- Location: Adelaide SA Australia
- Status: offline
RE: My Money Pit - SW20
2011/08/31 15:24:38
(permalink)
Epic BUMP for an epic build mate. I reckon your gonna be the fastest SW20 if not MR2 in SOUTH AUSTRALIA!! this'll make mine look slow haha, damn I could fit my fist in your turbo and you should reach your power goals with a decent E85 tune mate for sure! Keep up the good work.
post edited by MRTurbo - 2011/08/31 15:30:40
1990 SW20 GT 3S-GTE Targa 2001 Honda CBR600F4i
|
beagle_senior
SA Moderator
- Total Posts : 882
- Scores: 10
- Reward points: 2418
- Joined: 2011/04/07 19:51:15
- Location: Mount Barker SA Australia
- Status: offline
RE: My Money Pit - SW20
2012/02/02 14:06:44
(permalink)
Well another 'epic bump' just an update on the engine specs now that its finished being built and the other parts that are going into the car: - JE Pistons - Eagle Rods - ACL Race Bearings - ARP Stud throughout - Ferrea Comp plus 1mm o/s valves - Apexi 1.8mm HG - Engle Valve Springs - Manganese Bronze Guides - OEM Retainers - Ferrea valve seals + retainers - 1zz Shimless buckets - GSC 274 degree cams - Fidenza cam gears - Ported + Polished head - Moroso Alloy Sump - Gates Blue Timing Belt - Ats racing intake + exhaust manifolds - 90mm BMI Throttle body - Precision 6262 w .63a/r v-band dump - Tial external 38mm wastegate - 3 inch s/s exhaust - W/a intercooler setup with -12 braided lines - RacerX COP Setup with 60-2 Crank sensor - 1000cc RC Top feed injectors - Speed Source Top feed rail - Aeromotive 340lph fuel pump - Sard Adjustable fuel pressure reguator - Mishimoto x-line radiator w/fans and shroud - RPS 6 puck srung clutch - ATS Racing CV Joints -MuellerAlloy flywheel - 4 inch KO Intake with k&n filter - Turbosmart BOV - Zeintronix Zt-2 Wideband kit with LCD display Thats all for now...
post edited by beagle_senior - 2012/02/02 14:14:29
|
mr2pod
MR2 Aficionado
- Total Posts : 584
- Scores: 9
- Reward points: 1924
- Joined: 2011/04/07 19:51:15
- Location: Adelaide SA Australia
- Status: offline
RE: My Money Pit - SW20
2012/02/02 14:25:35
(permalink)
in the gone in 60 seconds frame "that's a big list.."
|
beagle_senior
SA Moderator
- Total Posts : 882
- Scores: 10
- Reward points: 2418
- Joined: 2011/04/07 19:51:15
- Location: Mount Barker SA Australia
- Status: offline
Re:My Money Pit - SW20
2012/03/01 12:21:53
(permalink)
I finished putting this in today, just need a sparky to give me power in the shed..
Should make putting the motor back in a little easier...
|
