Fully Built 3SGTE with Haltech1000 sydney pickup

FOR SALE 1992 TOYOTA MR2 3sgte
I have been building this engine for the last 12mths however I no longer have the time and space to put this into a shell.
When this engine was tuned it ran 255rwkw on 18psi before oversized valves.
The head gasket blew so I decided to tear the engine down and rebuild from scratch, ceramic coat and clean up everything including new water,oil pumps and hi tensile bolts for every part.

This would be perfect if you are considering a rebuild or engine swap.  Heaps of money spent with receipts and pics of all stages of the build.  Engine is ready to drop in and run as the harness is all wired and is stand alone cpu, no need to wire into the old computer.

Don't hesitate to call or msg Adam on 0427 947 067 if you want more info.
Looking for $7,000, engine, exhaust, radiator, cpu everything ready to go.
More than happy to accommodate viewings, inner west sydney.

ENGINE

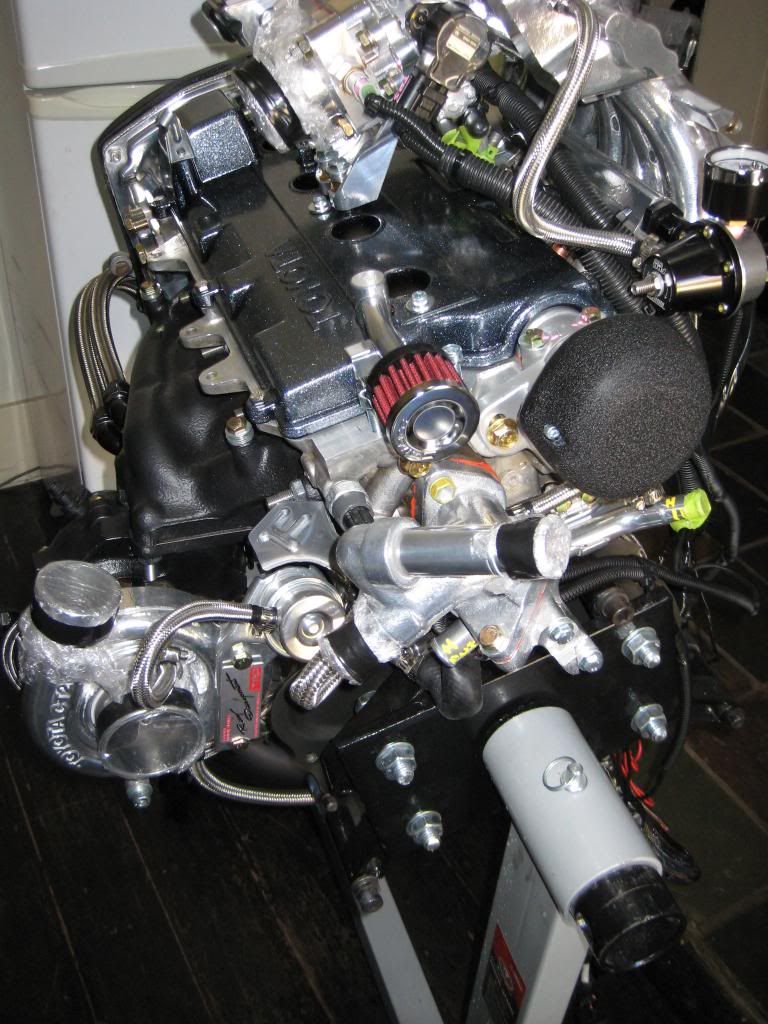

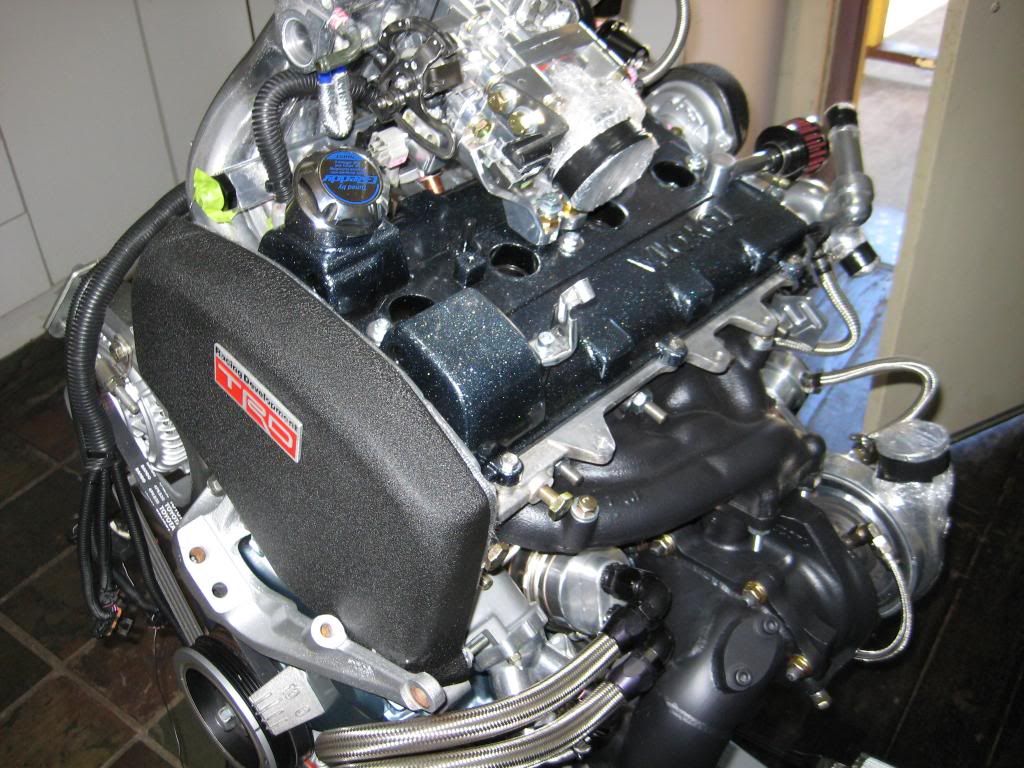

3SGTE Block and Head
HEAD
Pressure Tested, seat cut, decked and assembled by Wilkins Engineering
Intake Mild Port & Polished by Wilkins Engineering
http://www.wilkinsengineering.com.au/
Ferrea 6000 series comp special alloy 1mm oversized Valves
Both exhaust and intake
http://www.ferrea.com/Toyota-Engine-Valves/p34275
JUN Intake & Exhaust Cams 264 with 9mm lift
http://www.junauto.co.jp/products/camshaft/3sg.en.html

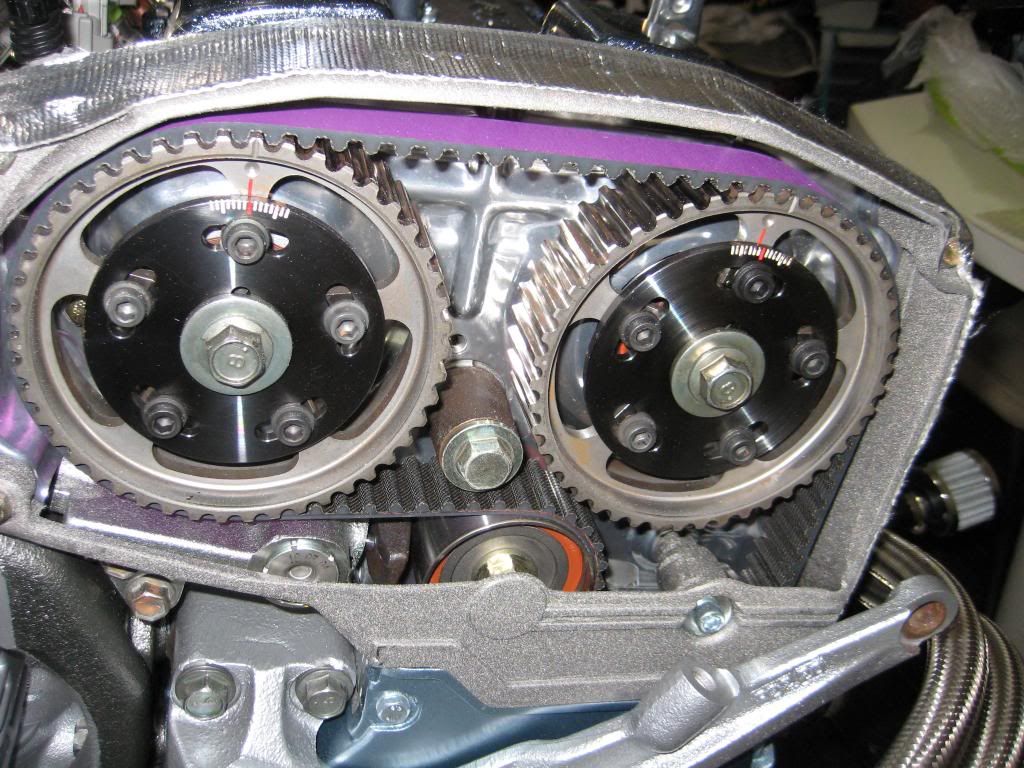

JUN Adjustable Cam Sprockets Intake & Exhaust
http://www.junauto.co.jp/products/camsprocket/index.en.html
JUN Titanium Single Valve Springs
http://www.junauto.co.jp/products/valvespring/index.en.html
JUN Titanium SOB Valve Retainers
http://www.junauto.co.jp/products/valveretainer/index.en.html
HKS 3 Layer Metal Head 1.6mm
http://www.hksaustralia.com.au/products/engine
HKS Fine tune timing belt
http://www.hksaustralia.com.au/products/engine
ARP Head Stud & Nut Replacement
TOYOTA Genuine Gasket Kit (Japan)

BLOCK
Block Bored, Honed & Decked by Wilkins Engineering 20 thou over
Crack Tested & Balanced 3SGTE Crank, Rods & Pistons by Westend Performance
CP Forged Aluminium Pistons 20 thou over
http://cppistons.com/
Ceramic Coated face, teflon coated skirts by hi-octane coatings
http://www.performancecoating.com.au/
Eagle Forged Aluminium Rods
Clemite Racing Main & Rod Bearings
ARP main cap Stud & Nut Replacement
ARP Rod Stud & Nut Replacement
TOYOTA Genuine Water & Oil Pumps

COOLING
PWR 780mm 3 Core Aluminium Radiator
Dual 12” Davies Craig Thermo Fans ECU Controlled

ECU, FUEL, INDUCTION, EXTRAS

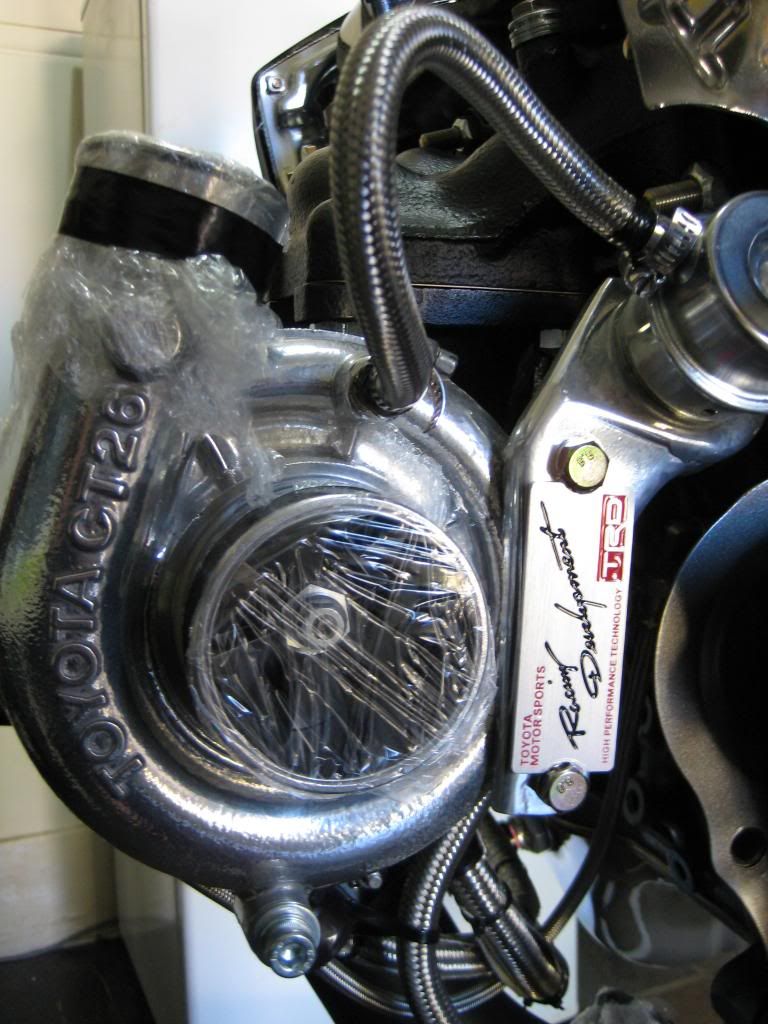

Garrett GT3582R Dual Ball Bearing Turbo Internals in Twin Pulse CT26 Housing by GCG Turbos
http://gcg.com.au/
K & N Oversized Pod Filter
Haltech Platinum Sport 1000 Tuned by Race Solutions
http://www.haltech.com/
Haltech LS1 Coil Packs with Distributor Eliminator
Haltech CPU controlled Solenoid Boost Controller
Haltech WideBand Sensor O2

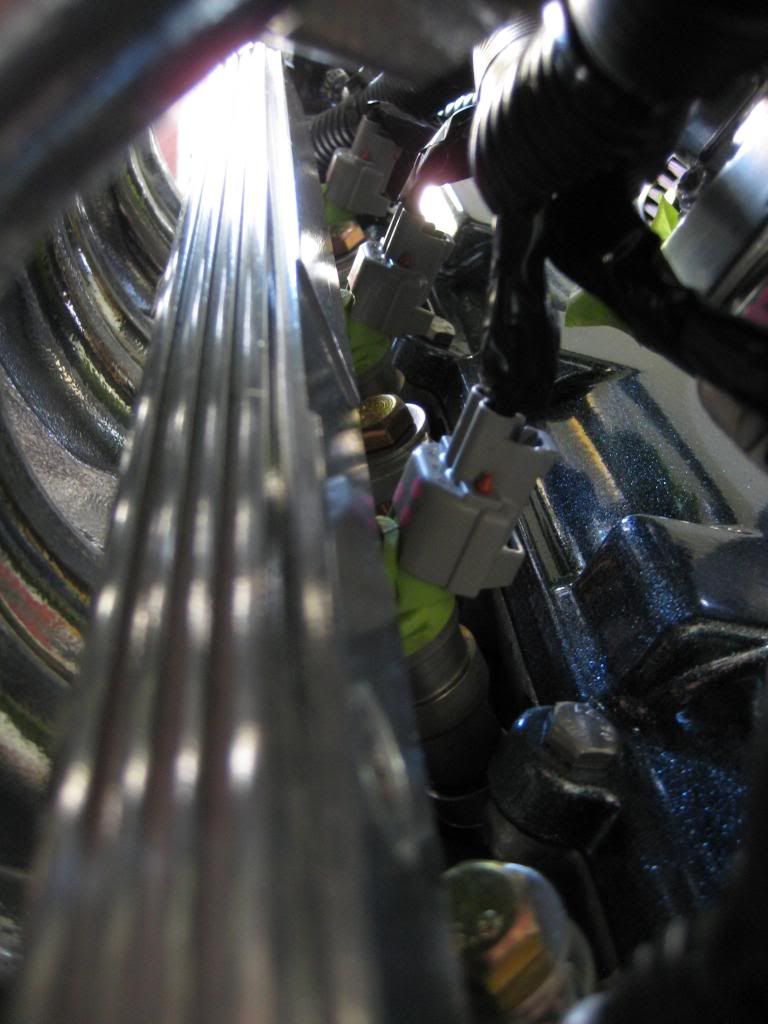

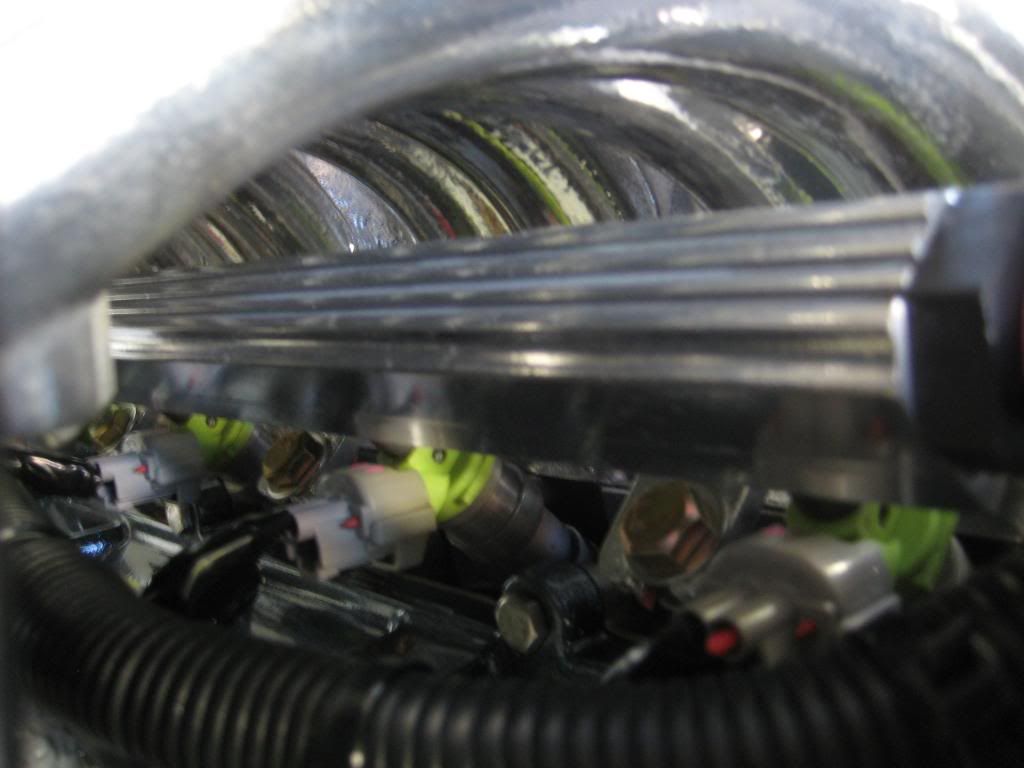

SARD Dual Entry Fuel Rail with Fuel
Turbosmart Fuel Pressure Gauge
SARD 800cc Twin Nozzle Top Mount Injectors
Turbosmart Large Fuel Pressure Regulator
Ceramic Coated chrome stock 3sgte intake manifold
Turbosmart Dual Port BOV with Trumpet & Block Off Cap
TOYOTA Geniune Alternator Rebuilt
KO Racing Phenolic TVIS Eliminator
http://www.koracing.net/
Exedy Triple Plate Clutch made in japan

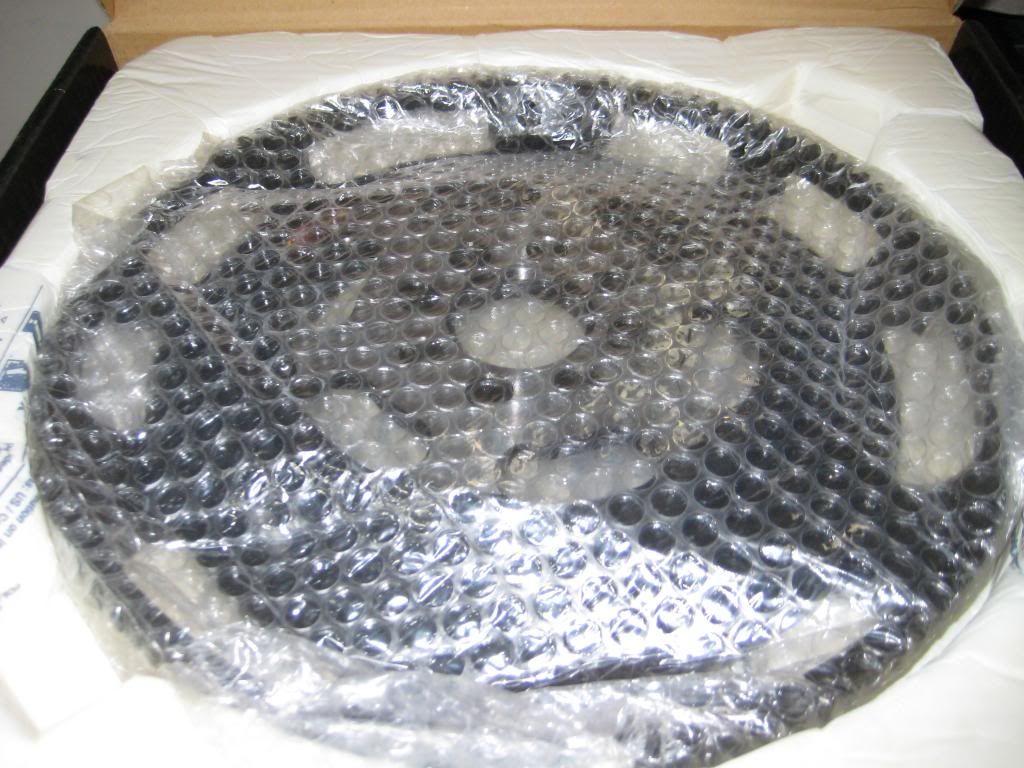

Xtreme Performance Super Lightweight chromolly flywheel

EXHAUST
3” Stainless Steel Dump Pipe
Ceramic Coated hi temp black by hi-octane coatings
HKS Hi Power 2 ¾ Full exhaust system
http://www.hksaustralia.com.au/products/engine















Wow.

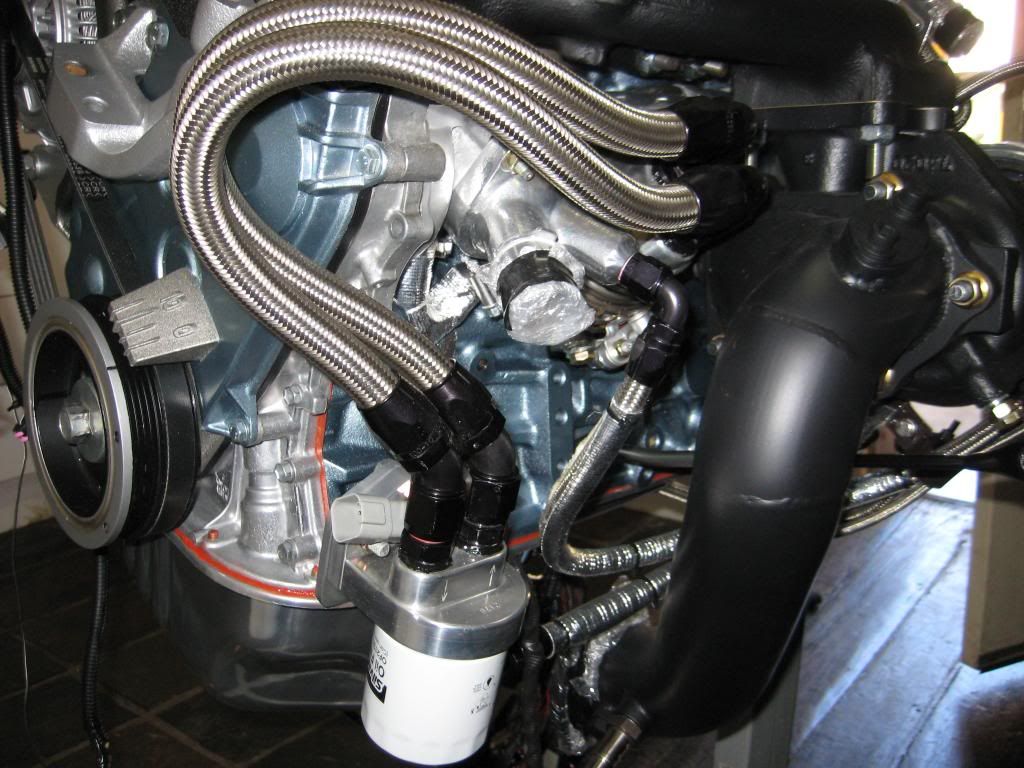

Thanks Guys,  alot of hard work and thought went into the build.  more pics below.
















gearbox was part of the project.  was completely rebuilt.  Just posted that for sale today.
it colour matches the engine block.

Yeh the tune was before the rebuild.

the valves size shouldn't change the tune too much, the tune wouldn't be perfect now because I went from
1.0mm cometic head gasket to 1.6mm HKS.

The comp and timing will be out, but when you drop the engine in it will run good enough to run the engine in for the first 1000km then it will need a full power re-tune.  Have 9lts of run in penn oil and 2 GREDDY filters for the engine run in stage also.

Deposit Taken,

Thanks for the feedback guys. should be sold in a week or two.

yeh sydney
