Gen 2 vs Gen 3
Whats the difference between a gen 2 3SGTE and a gen 3 3SGTE? Is it external, internal or both? Also how do you tell the difference between the two?.. Mine has had engine swap, but im not sure which engine has been used.
|
robk
MR2 Deity
- Total Posts : 2172
- Scores: 314
- Reward points: 5229
- Joined: 2011/04/07 19:51:15
- Location: Sydney / Central Coast, NSW Australia
- Status: offline
Re:Gen 2 vs Gen 3
2012/10/17 21:04:23
(permalink)
If you could post a photo of the engine bay, we would be able to tell you immediately
|
purple5ive
MR2 Deity
- Total Posts : 2337
- Scores: 45
- Reward points: 2132
- Joined: 2011/04/07 19:51:15
- Location: melbourne vic Australia
- Status: offline
Re:Gen 2 vs Gen 3
2012/10/17 21:15:22
(permalink)
☄ Helpful
easiest way to tell if its a gen or gen 3 if its got the stock ecu is wethere or not its got an AFM or not
GEn 2 has AFM, GEN 3 has Speed density setup (no AFM)
Turbo is bigger and better on the gen 3, Gen has CT26 stamped on it, Gen 3 doesnt have anything afaik
Inlet manifold has a badge on it for the gen 2 , Gen 3 is just plain cast metal.
Gen 3 has a factory oil catch system, gen 2 doesnt have one..
these are the usual visual differences
cheers
|
Ant1
MR2 Enthusiast
- Total Posts : 273
- Scores: 3
- Reward points: 1219
- Joined: 2012/10/07 22:18:57
- Location: Gold Coast
- Status: offline
Re:Gen 2 vs Gen 3
2012/10/17 21:25:00
(permalink)
**** I keep hitting the thumbs down icon! Stupid iPhone.. How do you reverse that?
It has an aftermarket ecu, but I'm pretty certain it has CT26 stamped on it. Thanks.
|
Ant1
MR2 Enthusiast
- Total Posts : 273
- Scores: 3
- Reward points: 1219
- Joined: 2012/10/07 22:18:57
- Location: Gold Coast
- Status: offline
Re:Gen 2 vs Gen 3
2012/10/17 21:32:54
(permalink)

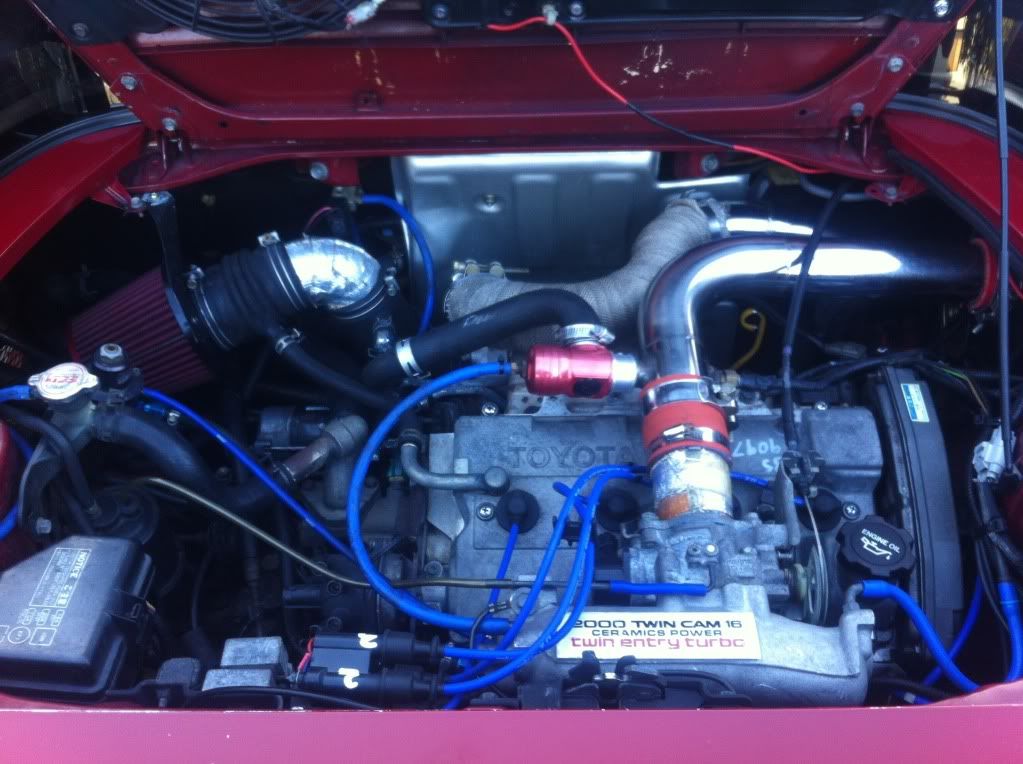

 There's a photo. So what other differences is there performance wise?
|
purple5ive
MR2 Deity
- Total Posts : 2337
- Scores: 45
- Reward points: 2132
- Joined: 2011/04/07 19:51:15
- Location: melbourne vic Australia
- Status: offline
Re:Gen 2 vs Gen 3
2012/10/17 21:38:59
(permalink)
hahaha you cant lol someone else has to bump it up for me..
yeah thats the reason i mentioned if its still got the stock ecu..
the manifold for the gen 2 has the badge saying
2000 twin cam 16
Ceramic power
Twin entry Turbo
also the black box near the intake manifold on passenger side of the car will be missing ( gen 3 factory oil catch can)
cheers
|
purple5ive
MR2 Deity
- Total Posts : 2337
- Scores: 45
- Reward points: 2132
- Joined: 2011/04/07 19:51:15
- Location: melbourne vic Australia
- Status: offline
Re:Gen 2 vs Gen 3
2012/10/17 21:40:33
(permalink)
|
just_ace
Moderator
- Total Posts : 2508
- Scores: 89
- Reward points: 4598
- Joined: 2011/04/07 19:51:15
- Location: perth wa Australia
- Status: offline
Re:Gen 2 vs Gen 3
2012/10/17 21:44:22
(permalink)
☄ Helpful
oyurs is a gen2.
there was a thread that listed the differences.
if your talking just mechanically, technically everything is different tho some bits are interchangeable.
head doesn't have TVIS like gen2 and your old st162 celica.
TB is bigger, shim under buckets, better cams, differnet comp ratio, turbo, rods, oil pump, sump and cooler arrangement is different.
|
Ant1
MR2 Enthusiast
- Total Posts : 273
- Scores: 3
- Reward points: 1219
- Joined: 2012/10/07 22:18:57
- Location: Gold Coast
- Status: offline
Re:Gen 2 vs Gen 3
2012/10/17 21:44:25
(permalink)
Yep, thought so, thanks. What, differences in performance is there? I know the gen 3 puts out more, but that's it lol. Oh and two thumbs up even that out hahaha!
|
Ant1
MR2 Enthusiast
- Total Posts : 273
- Scores: 3
- Reward points: 1219
- Joined: 2012/10/07 22:18:57
- Location: Gold Coast
- Status: offline
Re:Gen 2 vs Gen 3
2012/10/17 21:48:24
(permalink)
That's more then I thought lol.. I guess I could change the cams, throttle
body and turbo easily enough though. Thanks.
|
just_ace
Moderator
- Total Posts : 2508
- Scores: 89
- Reward points: 4598
- Joined: 2011/04/07 19:51:15
- Location: perth wa Australia
- Status: offline
Re:Gen 2 vs Gen 3
2012/10/17 21:50:50
(permalink)
in stock format 240 vs 220 hp. but the gen3 is more responsive to light modding.
the gen3 ecu, fueling and turbo can handle up to about 17.5 psi without too much trouble, where as the gen2 can only really manage 14psi, and the turbo runs out of puff after 5500rpm.
|
Ant1
MR2 Enthusiast
- Total Posts : 273
- Scores: 3
- Reward points: 1219
- Joined: 2012/10/07 22:18:57
- Location: Gold Coast
- Status: offline
Re:Gen 2 vs Gen 3
2012/10/17 21:55:14
(permalink)
Would it even be worth using interchangeable parts from a gen 3?
|
Ant1
MR2 Enthusiast
- Total Posts : 273
- Scores: 3
- Reward points: 1219
- Joined: 2012/10/07 22:18:57
- Location: Gold Coast
- Status: offline
Re:Gen 2 vs Gen 3
2012/10/17 22:06:07
(permalink)
...As opposed to doing an engine conversion with a gen 3.
What's the name of that thread?
|
dasic1
Moderator
- Total Posts : 1323
- Scores: 83
- Reward points: 5910
- Joined: 2011/04/07 19:51:15
- Location: melbourne vic Australia
- Status: offline
Re:Gen 2 vs Gen 3
2012/10/17 22:42:11
(permalink)
IMO its better to just go aftermarket.
Oil filter location is a easy thing to pick. Gen2 is near the turbo and Gen3 is off the front of the sump.
|
adisco
MR2 Enthusiast
- Total Posts : 165
- Scores: 5
- Reward points: 437
- Joined: 2012/06/03 02:38:47
- Status: offline
Re:Gen 2 vs Gen 3
2012/10/17 22:58:04
(permalink)
Gen two with ct20 and 17psi is a fast car. Just ask my mate in his bmw m3!
And if gen3 is quicker, than its QUICK 😄
|
