purple5ive
MR2 Deity
- Total Posts : 2337
- Scores: 45
- Reward points: 2132
- Joined: 2011/04/07 19:51:15
- Location: melbourne vic Australia
- Status: offline
Re:1993 MR2 SW20 Turbo doesnt want to start....PLease Assistance Needed.
2012/09/28 10:03:27
(permalink)
is the hole thats unconnected before or after the AFM, if its after the AFM then your letting in more air than whats been metered by the afm, which will make the ecu go nuts and stall the car as the ECU cant keep up and is noticing somethign isnt right...
if the hole where the BOV is meant to plumb back into is left open then this will cause the problem..
car runs better with the bov plumbed back btw specially on an AFM equipped car.
|
purple5ive
MR2 Deity
- Total Posts : 2337
- Scores: 45
- Reward points: 2132
- Joined: 2011/04/07 19:51:15
- Location: melbourne vic Australia
- Status: offline
Re:1993 MR2 SW20 Turbo doesnt want to start....PLease Assistance Needed.
2012/09/28 10:05:02
(permalink)
take a pic of your inlet piping showing the unplugged areas, if you can , will def help diagnose this issue
a cut down broom handle also works temporarily to plug the bov plumb back hole
|
sredze
MR2 Enthusiast
- Total Posts : 39
- Scores: 1
- Reward points: 64
- Joined: 2012/09/24 20:38:20
- Status: offline
Re:1993 MR2 SW20 Turbo doesnt want to start....PLease Assistance Needed.
2012/09/28 10:49:07
(permalink)
Will do, unfortunately I dont get back home from work until 7-8pm most nights, so I will post it around then. Cheers fellaz. Really appreciate the support.
|
Mrskylighter
MR2 Deity
- Total Posts : 2156
- Scores: 174
- Reward points: 6592
- Joined: 2011/04/07 19:51:15
- Location: NSW Australia, Hills District
- Status: offline
Re:1993 MR2 SW20 Turbo doesnt want to start....PLease Assistance Needed.
2012/09/28 10:57:43
(permalink)
No problem mate. That's what the forum is for.
|
sredze
MR2 Enthusiast
- Total Posts : 39
- Scores: 1
- Reward points: 64
- Joined: 2012/09/24 20:38:20
- Status: offline
Re:1993 MR2 SW20 Turbo doesnt want to start....PLease Assistance Needed.
2012/09/28 20:27:55
(permalink)
|
purple5ive
MR2 Deity
- Total Posts : 2337
- Scores: 45
- Reward points: 2132
- Joined: 2011/04/07 19:51:15
- Location: melbourne vic Australia
- Status: offline
Re:1993 MR2 SW20 Turbo doesnt want to start....PLease Assistance Needed.
2012/09/29 09:03:03
(permalink)

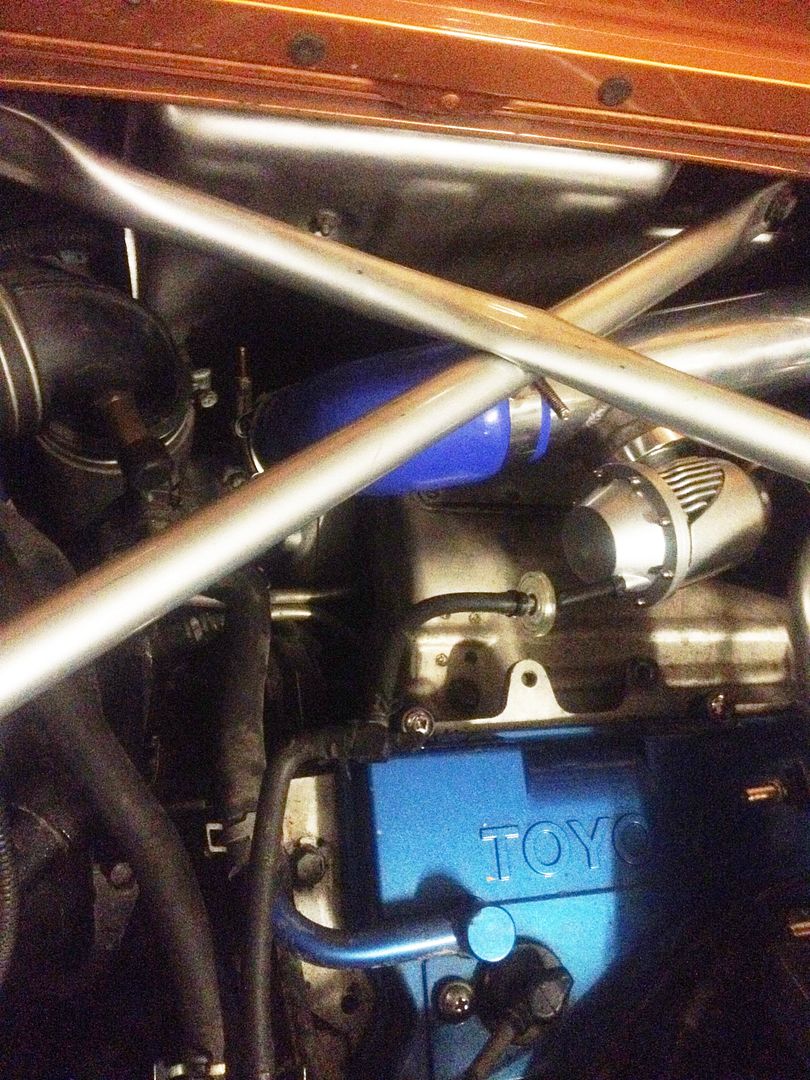

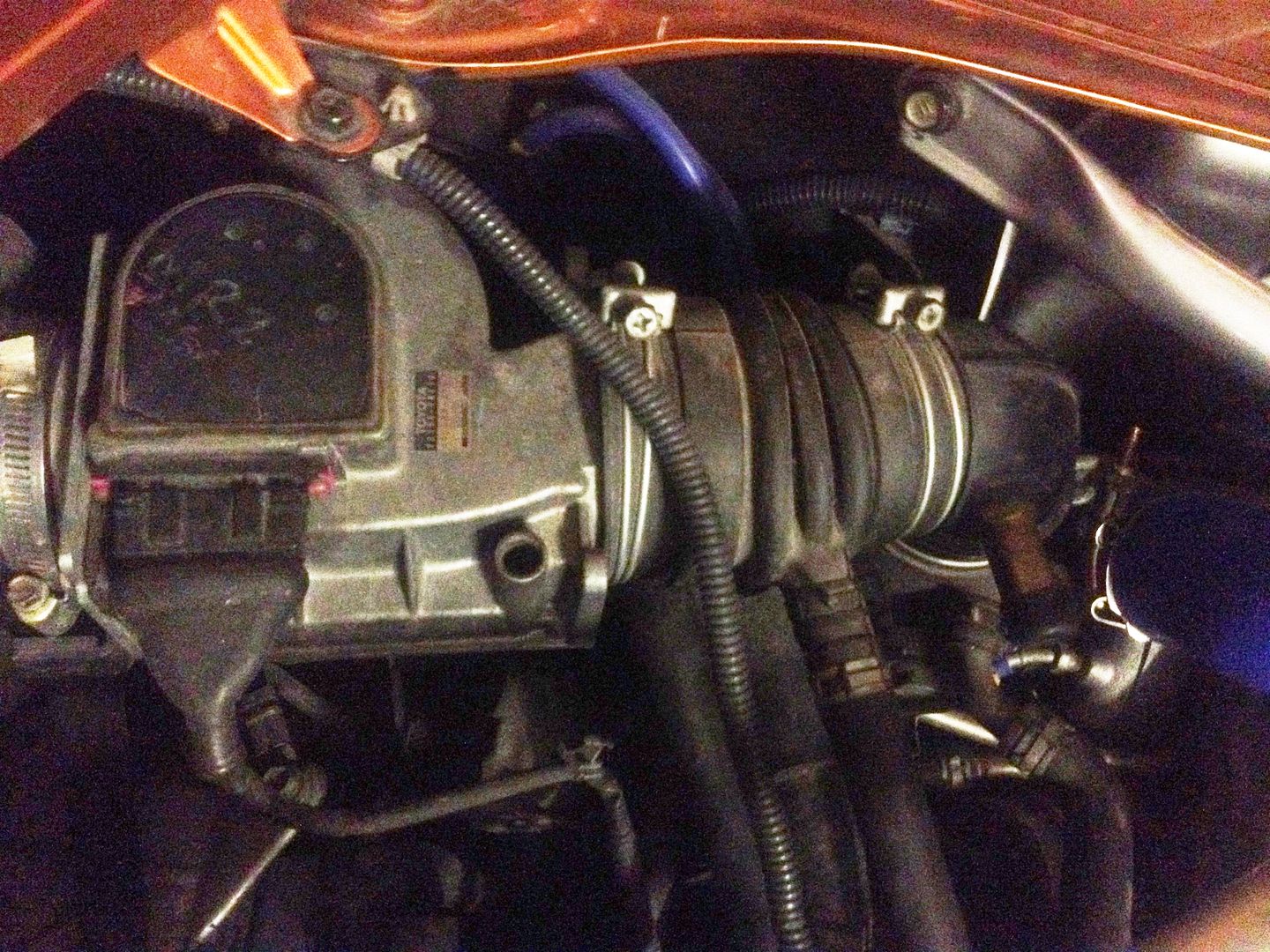

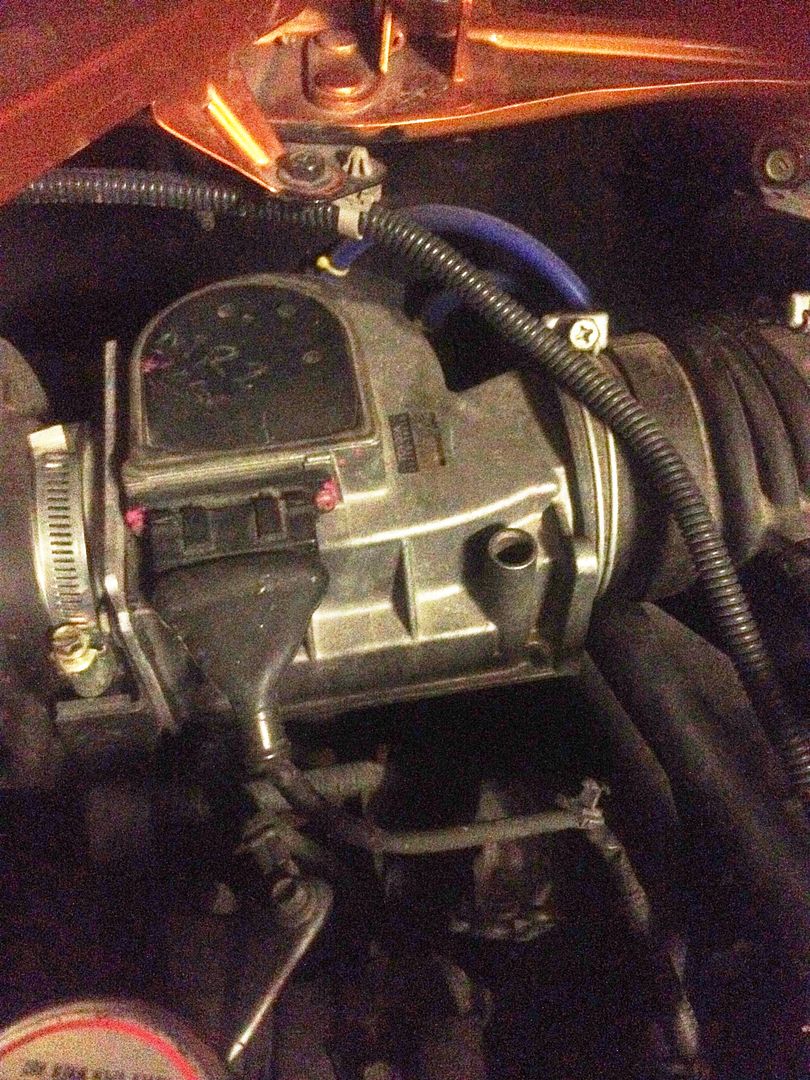

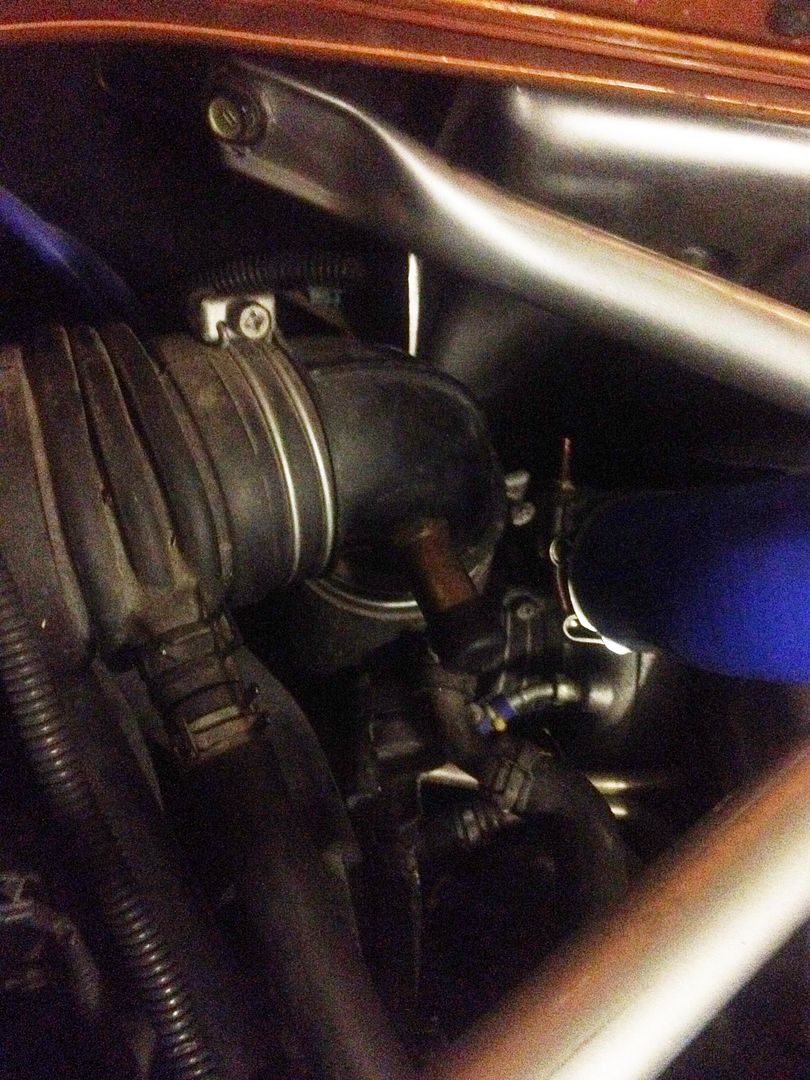

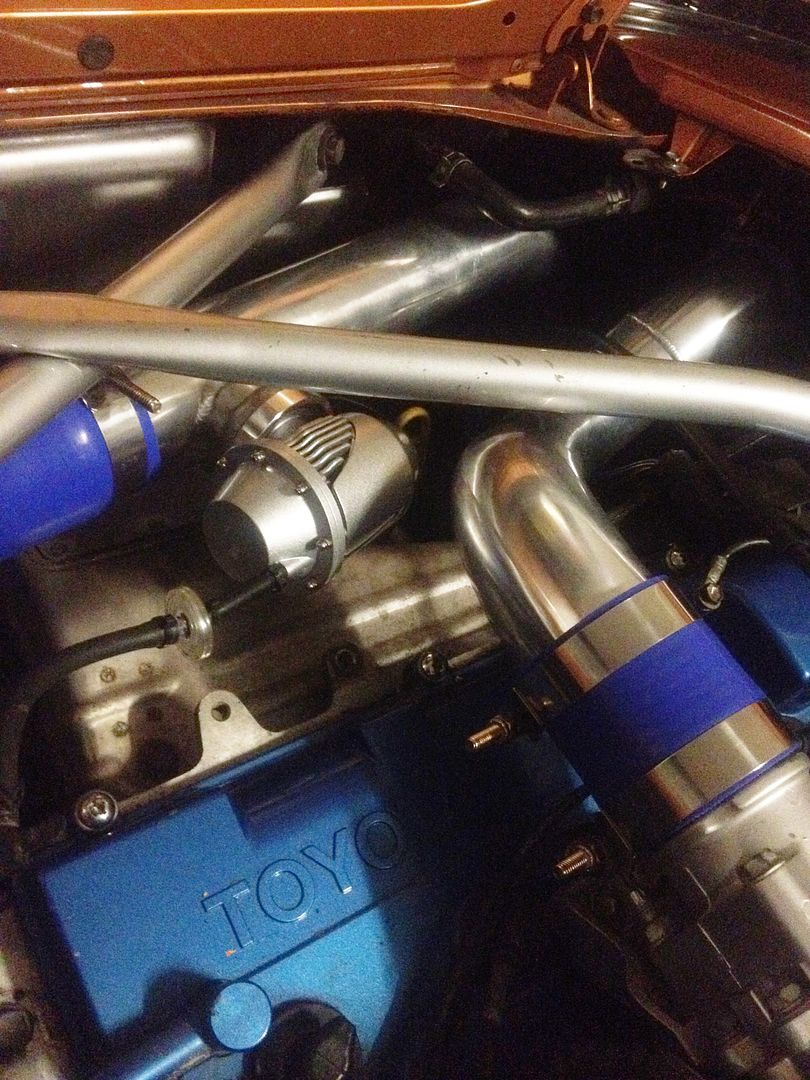

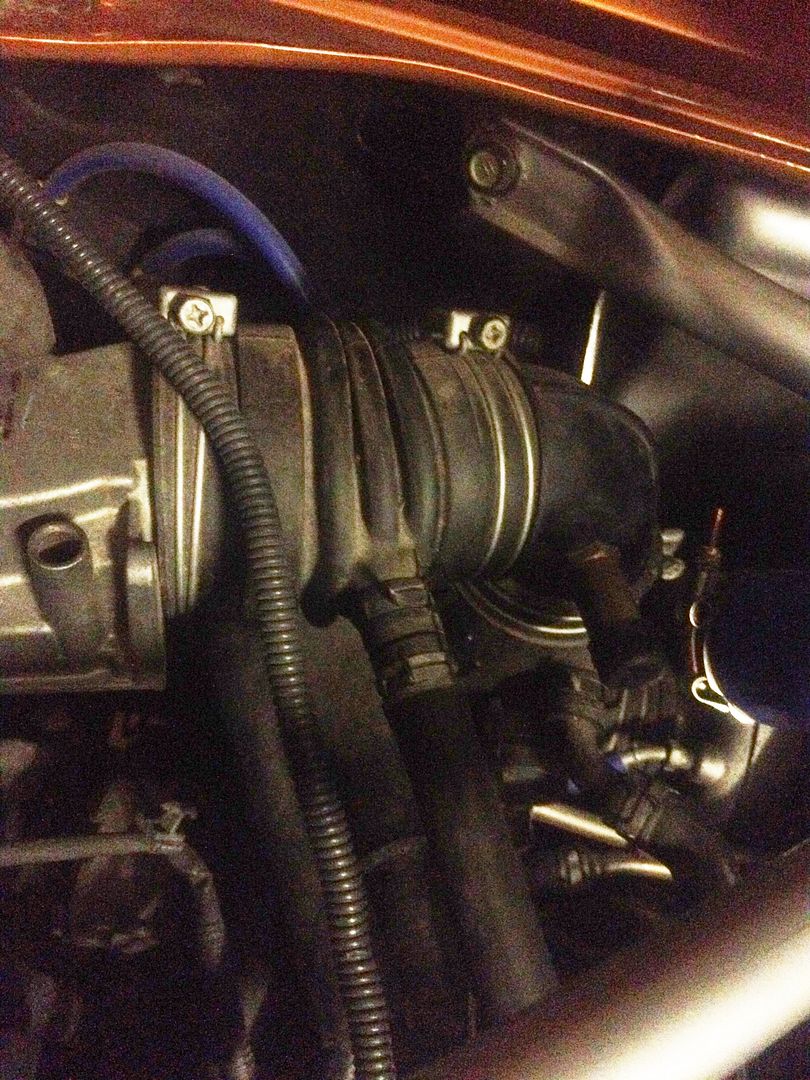

i cant see if the BOV plumback hole is covered up, the rest look ok to me
|
sredze
MR2 Enthusiast
- Total Posts : 39
- Scores: 1
- Reward points: 64
- Joined: 2012/09/24 20:38:20
- Status: offline
Re:1993 MR2 SW20 Turbo doesnt want to start....PLease Assistance Needed.
2012/09/29 09:28:27
(permalink)
Yeah it is. There is a black cap tightly on it. The mechanic said he plugged it up. The issue has to be electrical with the ignition coil/circuit or the ecu not recieving the igf signal.
|
3sgeTurbo
MR2 Aficionado
- Total Posts : 254
- Scores: 9
- Reward points: 2730
- Joined: 2011/04/07 19:51:15
- Location: Melbourne Australia
- Status: offline
Re:1993 MR2 SW20 Turbo doesnt want to start....PLease Assistance Needed.
2012/10/03 10:51:02
(permalink)
A BOV or Intercooler would not make the car turn off once its running,
I have seen the same problem before on a MR2 and it was the turbo timer,
Think about this: what is the one modification that you have that directly interferes with your starting system? The turbo timer.
I would start by removing that, then start checking other items and through process of elimination you can find the fault.
1991 MR2 Black Turbo Targa Gen 4 3SGTE w/ GTX3076r 1984 AE86 Toyota Sprinter 4AGE 16V ITB's 2002 BMW Silver X5 4.4i V8 Daily Driver
|
sredze
MR2 Enthusiast
- Total Posts : 39
- Scores: 1
- Reward points: 64
- Joined: 2012/09/24 20:38:20
- Status: offline
Re:1993 MR2 SW20 Turbo doesnt want to start....PLease Assistance Needed.
2012/10/03 12:28:52
(permalink)
hmmmm thanks mate. Will def look into it more. Are you saying to disconnect the turbo timer wiring? The mechanic did say that after he played around with the turbo timer settings, the car would eventually start. I have tried turning the turbo timer to off, but with no success. The one time the car did start straight away was when I unplugged the ecu and plugged it back in, though as soon as i turned the car of and tried to start it again, the same issue.
|
Mrskylighter
MR2 Deity
- Total Posts : 2156
- Scores: 174
- Reward points: 6592
- Joined: 2011/04/07 19:51:15
- Location: NSW Australia, Hills District
- Status: offline
Re:1993 MR2 SW20 Turbo doesnt want to start....PLease Assistance Needed.
2012/10/03 12:44:18
(permalink)
So when it starts after unplugging the ecu does it idle/rev/drive fine?
|
sredze
MR2 Enthusiast
- Total Posts : 39
- Scores: 1
- Reward points: 64
- Joined: 2012/09/24 20:38:20
- Status: offline
Re:1993 MR2 SW20 Turbo doesnt want to start....PLease Assistance Needed.
2012/10/03 12:48:32
(permalink)
I did this last week and it only worked that one time... unplugging the ecu now and trying to start it doesnt work either. That time though the car was idling pretty good. As i said in an earlier post, i couldnt drive it around a bit becuase it was behind a double parked car.
|
3sgeTurbo
MR2 Aficionado
- Total Posts : 254
- Scores: 9
- Reward points: 2730
- Joined: 2011/04/07 19:51:15
- Location: Melbourne Australia
- Status: offline
Re:1993 MR2 SW20 Turbo doesnt want to start....PLease Assistance Needed.
2012/10/03 13:00:45
(permalink)
It really depends on how your turbo timer was installed, is it one of those cheap no brand timers with 4 buttons (two each side) and red led display?
Take off your steering column trim and try to find how they installed the timer, some have a adaptor to plug into the ignition barrel loom and some are just soldered into the existing wiring, if it is the plug type just remove it then try start the car.
1991 MR2 Black Turbo Targa Gen 4 3SGTE w/ GTX3076r 1984 AE86 Toyota Sprinter 4AGE 16V ITB's 2002 BMW Silver X5 4.4i V8 Daily Driver
|
sredze
MR2 Enthusiast
- Total Posts : 39
- Scores: 1
- Reward points: 64
- Joined: 2012/09/24 20:38:20
- Status: offline
Re:1993 MR2 SW20 Turbo doesnt want to start....PLease Assistance Needed.
2012/10/03 13:07:36
(permalink)
its an apexi turbo timer, with the little ball to the right of the display. I am not sure if this helps towards figuring it out, but i got the mechanic to do a steering wheel replacement as well, dont think i mentioned that earlier. The horn doesnt work, but the day i drove the car back home from the workshop it drove and turned pretty good.
post edited by sredze - 2012/10/03 13:12:31
|
sredze
MR2 Enthusiast
- Total Posts : 39
- Scores: 1
- Reward points: 64
- Joined: 2012/09/24 20:38:20
- Status: offline
Re:1993 MR2 SW20 Turbo doesnt want to start....PLease Assistance Needed.
2012/10/03 14:28:39
(permalink)
I just spoke to the mechanic and he said he started having issues starting the car after the steering wheel change. So that means it must be in within the steering column area, underneath the steering column trim and the wiring with the turbo timer which may have been affected during the wheel change.
|
3sgeTurbo
MR2 Aficionado
- Total Posts : 254
- Scores: 9
- Reward points: 2730
- Joined: 2011/04/07 19:51:15
- Location: Melbourne Australia
- Status: offline
Re:1993 MR2 SW20 Turbo doesnt want to start....PLease Assistance Needed.
2012/10/03 14:38:32
(permalink)
Well if defiantly sounds like this could all be related to the wiring in the steering column, maybe some wiring has been damaged? Could also explain your broken horn,
It all runs into the same wiring loom as the turbo timer
1991 MR2 Black Turbo Targa Gen 4 3SGTE w/ GTX3076r 1984 AE86 Toyota Sprinter 4AGE 16V ITB's 2002 BMW Silver X5 4.4i V8 Daily Driver
|
