Small coolant leak, what exactly is damaged?

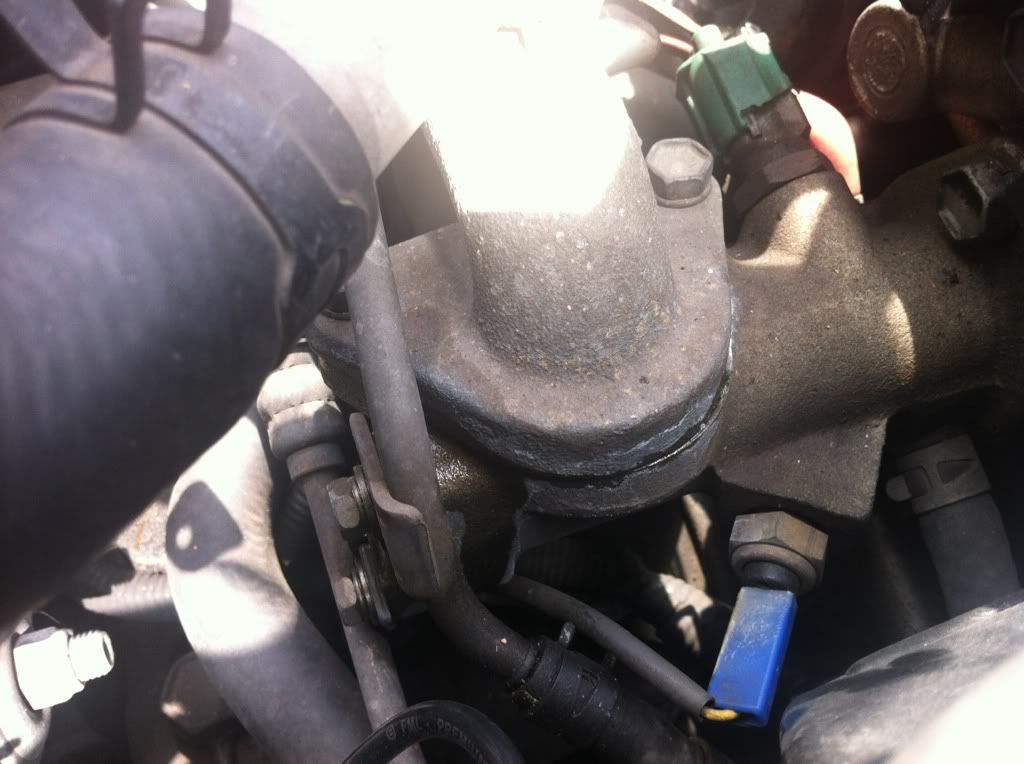

So I noticed I have this small coolant leak today. Just wanted to know ppls opinions on what exactly is damaged as making the leak? Im thinking/hoping that I just need a new gasket for this part or would it be leaking for some other reason Here's a picture of where it's leaking you can see its a bit wet below the line where the 2 parts meet. Car is a 92 gt-s
post edited by Ddubtoille - 2012/05/22 22:08:17
|
dasic1
Moderator
- Total Posts : 1323
- Scores: 83
- Reward points: 5910
- Joined: 2011/04/07 19:51:15
- Location: melbourne vic Australia
- Status: offline
Re:Small coolant leak, what exactly it damaged?
2012/05/20 22:42:08
(permalink)
Im pretty sure that dose not have a gasket.
Just use something like ultra blue to seal it
|
Ddubtoille
MR2 Enthusiast
- Total Posts : 296
- Scores: 2
- Reward points: 1833
- Joined: 2011/10/02 21:47:48
- Status: offline
Re:Small coolant leak, what exactly it damaged?
2012/05/20 23:23:27
(permalink)
Yeah that's what I was thinking. Think the sealant has just deteriorated and caused a leak?
|
beagle_senior
SA Moderator
- Total Posts : 882
- Scores: 10
- Reward points: 2418
- Joined: 2011/04/07 19:51:15
- Location: Mount Barker SA Australia
- Status: offline
Re:Small coolant leak, what exactly it damaged?
2012/05/21 07:12:12
(permalink)
Yeah i think there is a black rubber ring that seals in there isnt there? But in saying that i recently only put the oring in and still leaked so i used a gasket sealer aswell and that fixed my problem
|
Falcon
Supporter
- Total Posts : 623
- Scores: 167
- Reward points: 5033
- Joined: 2011/04/07 19:51:15
- Location: Brisbane Australia
- Status: offline
Re:Small coolant leak, what exactly it damaged?
2012/05/21 07:26:26
(permalink)
Think you will find there is a large O Ring under there. Need to clean both surfaces as bolts do not provide even clamping. Do not overtighten. As with any cooling system this leak needs to be fixed PRONTO.
|
purple5ive
MR2 Deity
- Total Posts : 2337
- Scores: 45
- Reward points: 2132
- Joined: 2011/04/07 19:51:15
- Location: melbourne vic Australia
- Status: offline
Re:Small coolant leak, what exactly it damaged?
2012/05/21 09:43:13
(permalink)
almost all cars i have seen have some sort of sealant in that area.
|
MANDALAY
MR2 Deity
- Total Posts : 666
- Scores: 41
- Reward points: 2320
- Joined: 2011/04/07 19:51:15
- Location: CHELTENHAM VICTORIA Australia
- Status: offline
Re:Small coolant leak, what exactly it damaged?
2012/05/21 10:36:27
(permalink)
Just an o-ring required.
Most people dont by a new o-ring when installing clips which there lays the problem as once its opened most often the o-ring will change shape
|
Firthy
MR2 Enthusiast
- Total Posts : 103
- Scores: 3
- Reward points: 1975
- Joined: 2011/04/07 19:51:15
- Location: Melbourne Victoria Australia
- Status: offline
Re:Small coolant leak, what exactly it damaged?
2012/05/21 11:35:38
(permalink)
There is definitely an o-ring that is in that spot. As soon as you pull it apart you'll see where it sits.
Do not just use sealant - it's dodgy. Many people do it but just replace the two cent o-ring and then if you need additional stuff look at the sealant.
Mine also leaked from here and it was that it had been connected with sealant only and no o-ring.
--- "I don't want to get to the end of my life and find that I lived just the length of it. I want to have lived the width of it as well." - Diane Ackerman
|
MANDALAY
MR2 Deity
- Total Posts : 666
- Scores: 41
- Reward points: 2320
- Joined: 2011/04/07 19:51:15
- Location: CHELTENHAM VICTORIA Australia
- Status: offline
Re:Small coolant leak, what exactly it damaged?
2012/05/21 11:41:22
(permalink)
|
Ddubtoille
MR2 Enthusiast
- Total Posts : 296
- Scores: 2
- Reward points: 1833
- Joined: 2011/10/02 21:47:48
- Status: offline
Re:Small coolant leak, what exactly it damaged?
2012/05/21 18:35:49
(permalink)
Thanks for all the help everyone. What o ring is it exactly? So I know what to ask for at the shop?
If its the thermostat gasket my mechanic just gave me one but with just the picture I showed him he doesn't think that's what it is. But he isn't positive
|
beagle_senior
SA Moderator
- Total Posts : 882
- Scores: 10
- Reward points: 2418
- Joined: 2011/04/07 19:51:15
- Location: Mount Barker SA Australia
- Status: offline
Re:Small coolant leak, what exactly it damaged?
2012/05/21 19:53:04
(permalink)
I think it might be called the water outlet housing
post edited by beagle_senior - 2012/05/21 19:56:31
|
MANDALAY
MR2 Deity
- Total Posts : 666
- Scores: 41
- Reward points: 2320
- Joined: 2011/04/07 19:51:15
- Location: CHELTENHAM VICTORIA Australia
- Status: offline
Re:Small coolant leak, what exactly it damaged?
2012/05/21 20:19:49
(permalink)
☄ Helpful
 WATER OUTLET O-ring 90301‑40005 Mate if your mechanic thinks that is a thermostat housing , best to find another mechanic OMG Have no idea where you are , but if Toyota doesnt have one you will wait about 4 weeks. I might have a spare one
|
Rizo
MR2 Aficionado
- Total Posts : 149
- Scores: 8
- Reward points: 139
- Joined: 2012/04/05 16:50:48
- Status: offline
Re:Small coolant leak, what exactly it damaged?
2012/05/21 21:26:24
(permalink)
Is that the coolant outlet assembly?
|
MANDALAY
MR2 Deity
- Total Posts : 666
- Scores: 41
- Reward points: 2320
- Joined: 2011/04/07 19:51:15
- Location: CHELTENHAM VICTORIA Australia
- Status: offline
Re:Small coolant leak, what exactly it damaged?
2012/05/21 21:28:30
(permalink)
Yes , different shapes for different models
|
Rizo
MR2 Aficionado
- Total Posts : 149
- Scores: 8
- Reward points: 139
- Joined: 2012/04/05 16:50:48
- Status: offline
Re:Small coolant leak, what exactly it damaged?
2012/05/21 21:31:26
(permalink)
If its for a na motor, one dude on this forum has a few of these. Can't remember exactly who but its somewhere in the epic overheating mr2/got ass raped for 2 grand thread.
|
