Re:Has anyone fitted these wheels (sw20)
2011/05/25 19:10:17
(permalink)
I dont have those wheels but I do know that the rears will be fine.
For some reason my Meisters which had the same width and a +32 offset would not clear the coilovers (Tien Super Street)
Hopefully you can find someone that has them and can test fit them.
________________ 1993 Toyota MR2 GTS1993 Toyota Supra SZ ________________
|
matt234
MR2 Aficionado
- Total Posts : 313
- Scores: 3
- Reward points: 3193
- Joined: 2011/04/07 19:51:15
- Location: Ipswich / Springfield Qld Australia
- Status: offline
Re:Has anyone fitted these wheels (sw20)
2011/05/25 19:23:16
(permalink)
chase_d
I dont have those wheels but I do know that the rears will be fine.
For some reason my Meisters which had the same width and a +32 offset would not clear the coilovers (Tien Super Street)
Hopefully you can find someone that has them and can test fit them.
Im sure i saw a car on here ages ago running them i just cant remember what specs he had. It doesnt sound too promising that the +32's didnt clear your Super Streets cause im running them too. They do make a 17 x 9 +30 tho...
|
SW20_3sgte
MR2 Scholar
- Total Posts : 1337
- Scores: 14
- Reward points: 4539
- Joined: 2011/04/07 19:51:15
- Location: Rowville, Victoria
- Status: offline
Re:Has anyone fitted these wheels (sw20)
2011/05/25 19:42:42
(permalink)
I am really hoping to get a set too. We can be D1R Brothers?? haha Here aer some pics from a previous thread. They look absolutely unreal
1998 Toyota Caldina GTT Manual
|
matt234
MR2 Aficionado
- Total Posts : 313
- Scores: 3
- Reward points: 3193
- Joined: 2011/04/07 19:51:15
- Location: Ipswich / Springfield Qld Australia
- Status: offline
Re:Has anyone fitted these wheels (sw20)
2011/05/25 19:51:54
(permalink)
Hell yeah they look awesome. Id probably have gone something like work meister's but for the price and weight these are a brilliant wheel.
Does that other thread mention what sizes etc they are running or if they were running coilovers as well?
|
jdmr288
MR2 Aficionado
- Total Posts : 772
- Scores: 15
- Reward points: 1593
- Joined: 2011/04/07 19:51:15
- Location: Brisbane QLD Australia
- Status: offline
Re:Has anyone fitted these wheels (sw20)
2011/05/25 22:10:14
(permalink)
I'm running the same offset on the front of mine with my gramlights. You would NOT get any closer than what these run with my JIC coilovers. The inside of the front right wheel has the slightest scuff ring around it from where the tyre has distorted under weight and has rubbed on the collar. Hasn't been enough to take any of the rubber off the upraised words though. But that's very fine with +33. Rears you will be fine.
|
Just1n_Mc
MR2 Aficionado
- Total Posts : 358
- Scores: 3
- Reward points: 5429
- Joined: 2011/04/07 19:51:15
- Status: offline
Re:Has anyone fitted these wheels (sw20)
2011/06/06 22:16:59
(permalink)
So the fronts will almost definately hit on shocks and springs if there just fouling on coilovers at +33?
|
dylmrt
Vendor
- Total Posts : 2156
- Scores: 111
- Reward points: 6118
- Joined: 2011/04/07 19:51:15
- Location: NSW Australia
- Status: offline
Re:Has anyone fitted these wheels (sw20)
2011/06/07 00:33:36
(permalink)
Shocks on springs actually have more clearange than coilovers because where the wheel sits, its below the perch, so no spring in the way. coilovers the spring comes down past where the perch is on standard strut/spring combo so will foul in more cases than standard (hopefully that made sense).
As for the some wheels of that size fitting and others fouling, NOT ALL WHEELS ARE THE SAME. some 8" wheels with the lip will measure in excess of 8". others a little less. it all depends on the wheel.
|
artymr2
MR2 Deity
- Total Posts : 1105
- Scores: 45
- Reward points: 7867
- Joined: 2011/04/07 19:51:15
- Location: WA
- Status: offline
Re:Has anyone fitted these wheels (sw20)
2011/06/07 00:57:24
(permalink)
dylmrt
some 8" wheels with the lip will measure in excess of 8". others a little less. it all depends on the wheel.
Isn't the wheel width the inside dimmension between the flanges? The outside width can vary for same wheel width due to different flange width/design, but can not be less than the wheel width (plus a bit to allow for minimum flange width)?
Black SW20 GT Turbo T-top
|
5SGTE
MR2 Deity
- Total Posts : 1909
- Scores: 163
- Reward points: 4724
- Joined: 2011/04/07 19:51:15
- Location: qld Australia
- Status: offline
Re:Has anyone fitted these wheels (sw20)
2011/06/07 10:13:54
(permalink)
Thats pretty much what he is saying.
|
artymr2
MR2 Deity
- Total Posts : 1105
- Scores: 45
- Reward points: 7867
- Joined: 2011/04/07 19:51:15
- Location: WA
- Status: offline
Re:Has anyone fitted these wheels (sw20)
2011/06/07 11:57:17
(permalink)
Ah ok, I must have misread when he wrote "some might be less than 8 inches in width", thats not possible for an 8 inch wide wheel. Either way the diagram shows some good info for wheel specs.
Black SW20 GT Turbo T-top
|
Tree
MR2 Deity
- Total Posts : 1334
- Scores: 98
- Reward points: 2970
- Joined: 2011/04/07 19:51:15
- Location: VIC, S.E.
- Status: offline
Re:Has anyone fitted these wheels (sw20)
2011/06/09 01:05:05
(permalink)
Saw an MR2 with these today and it had MASSIVE illegal hub spacers lol
|
worldwalker
MR2 Enthusiast
- Total Posts : 188
- Scores: 2
- Reward points: 2427
- Joined: 2011/04/07 19:51:15
- Status: offline
Re:Has anyone fitted these wheels (sw20)
2013/06/16 22:30:58
(permalink)

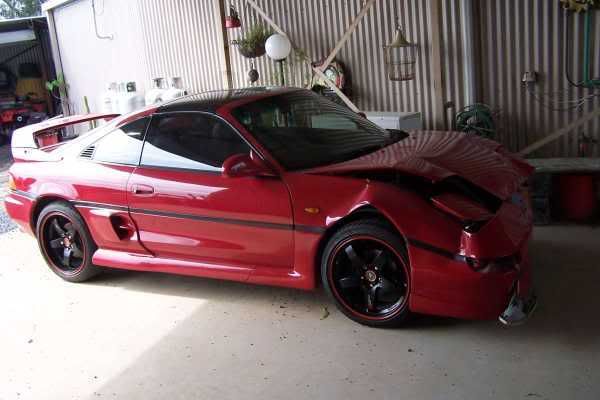

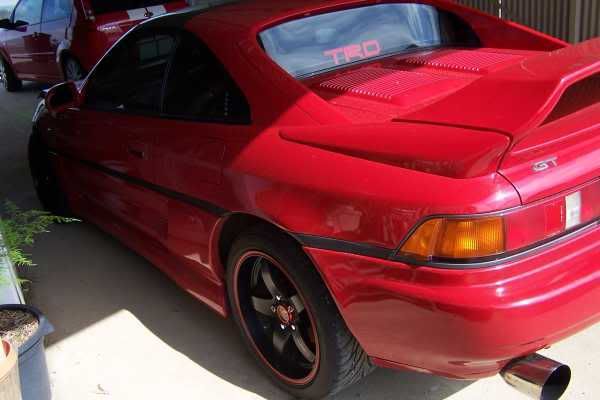

I know this is really old but I just had to post... that was my old SW20. Those Lenso's fit perfect, I used the website I've posted half a dozen times to get the right offset; They didn't scuff or scrub anywhere, under any driving condition but it was stock suspension. I always wondered what happened to that car, ended up the same as SIKCVC by the looks of things. Better days:
post edited by worldwalker - 2013/06/16 23:35:05
|
3sgeTurbo
MR2 Aficionado
- Total Posts : 254
- Scores: 9
- Reward points: 2730
- Joined: 2011/04/07 19:51:15
- Location: Melbourne Australia
- Status: offline
Re:Has anyone fitted these wheels (sw20)
2013/06/17 11:11:01
(permalink)
I have the D1R's in silver, 17x8 +32 on the front and it clears my Tien SuperStreets by 1mm :P 17x9 +30 on the back and I had to roll the lips and try to flare it when I painted the car so I could get the rims to clear, to much rubbing.
1991 MR2 Black Turbo Targa Gen 4 3SGTE w/ GTX3076r 1984 AE86 Toyota Sprinter 4AGE 16V ITB's 2002 BMW Silver X5 4.4i V8 Daily Driver
|
MIDN1T3
MR2 Aficionado
- Total Posts : 345
- Scores: 11
- Reward points: 3717
- Joined: 2011/04/07 19:51:15
- Location: Darwin NT Australia
- Status: offline
Re:Has anyone fitted these wheels (sw20)
2013/06/17 16:31:51
(permalink)
I also have the D1Rs on my car - love them, until I gutter-rashed one of the front ones :( I have the 17x8 +33 (215 wide tyre) for the front - fairly flush, and 17x9 +35 (255 wide though) for the rear. No rolling of fenders required either.  Uploaded with ImageShack.us
1990 SW20 MR2 N/A with 1994 Gen 3 GTS 3S-GTE swap.
|
