Hot!WRC/TTE/IMSA/LEMAN/JGTC 3SGTE/503E engines,UPDATE

Engine from Beau Yates' AE86 drifter, 3S Beams (RS200), turbo, dry sump, etc

nice!

Some more 503E internals

This thread = much FAP FAP FAP!!!

When these engine pop-up for sale out of old racers, how much money do they command?

too much

gee the Corolla S2000 sure sounds good

http://www.youtube.com/watch?v=p-srW2AkzXg

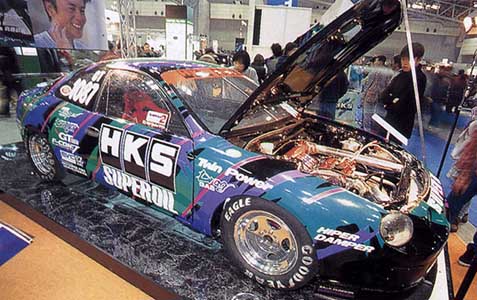

Not wrc or gt-c, but still a 3s none the less, couldnt see any, pics posted, dont know how noone posted the 9 sec HKS sillycar

pretty cool since its a red top beams engine too:)

quote:

---

Originally posted by Bayside_MR2

This thread = much FAP FAP FAP!!!

When these engine pop-up for sale out of old racers, how much money do they command?

---

Well, this is way out of date now, but toysport used to be able to get them (mind you this list is 8 years out of date, not to mention toysport has changed ownership twice in this time)

http://www.toysport.com/webpages/WebUpdates/Catalog/Toyotaet/ENGINE20LIST20MARCH202002.htm

503E IMSA turbo motor with intake manifold USD$17,500
503E rebuildable complete block and head USD$8,500

Rod Millens car





Prototype sports car

Toyota team Thailand touring car powered by TRD 503E (notice reversed head)

more info here




http://translate.google.com/translate?js=y&prev=_t&hl=en&ie=UTF-8&layout=1&eotf=1&u=http%3A%2F%2Fwww.grandprixgroup.com%2Fnew%2Fmagazine%2Fxoauto%2Fdetail.asp%3FDetail_Id%3D5299%26Column_Name%3DSOUPED%2520UP&sl=th&tl=en

G'Day Got this from my turbo supplier

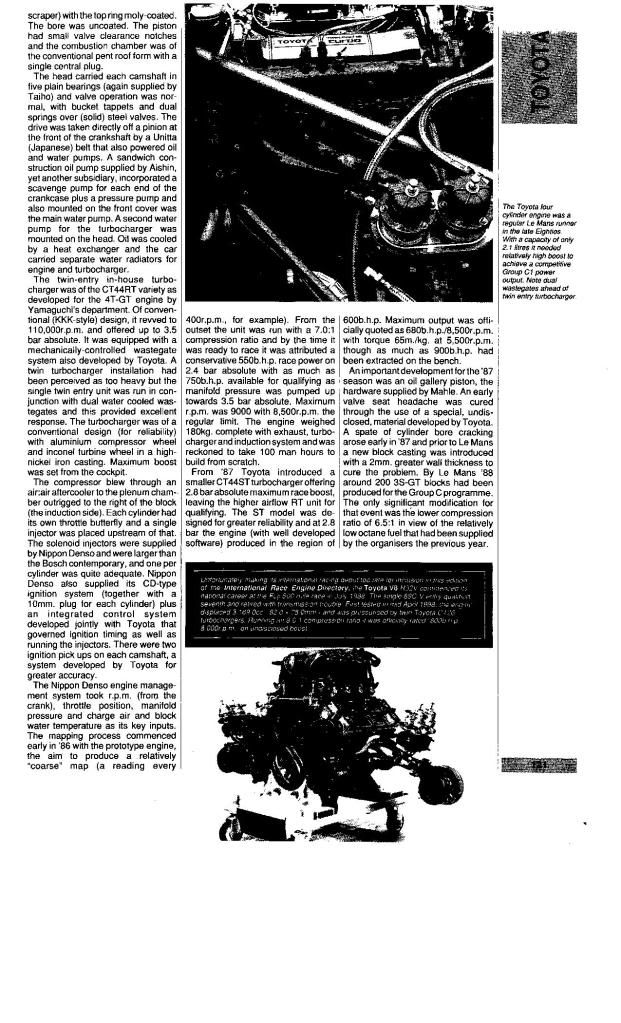

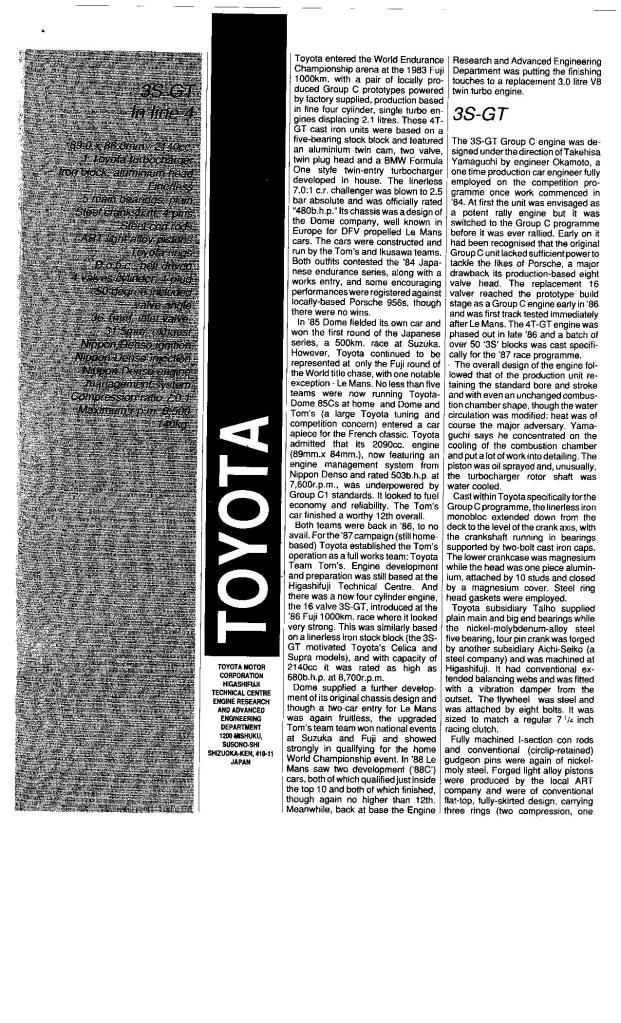

Page 1

Page 2

great find, thanks daniel.

i would love to put a 3sgte in my car with 3.5 bar of boost..

Bump.

MORE PICS!

quote:

---

Originally posted by surok

i would love to put a 3sgte in my car with 3.5 bar of boost..

---

50 psi!!! You'd want some intercooling....freak that would be scary!!! [:x)]

http://www.v-eight.com/tech_forum/viewtopic.php?f=35&t=594

Update...

3SGE magnesium sump, sold yesterday in japan.

Magnesium sump - I had a kombi catch fire on me once, and the magnesium casings eventually caught fire as well - pretty spectacular !

really? what happens to magnesium when that happens.. does it pop or melt?

Magnesium burns with an incredibly bright flame - it's spectacular! I can't imagine what a sump like this going up would be like - it'd light up the MCG.

Yeah can burn quie well, can make a nice bright light IIRC, and pure magnesium on fire when you add water makes hydrogen gas, which is flammable too, so dont put out with water, or carbon dioxide for that matter

Didn't you do highschool science, its freakin sweet :P

http://www.youtube.com/watch?v=5UJTR-LA1z4

very cool indeed

Performance wheels were originally made from magnesium, hence "mag wheels". Afaik it got phased out because if they caught alight they were too hard to put out + aluminium was a good alternative. Watching that poo poo burn in hs science was awesome :D

Great thread Trav

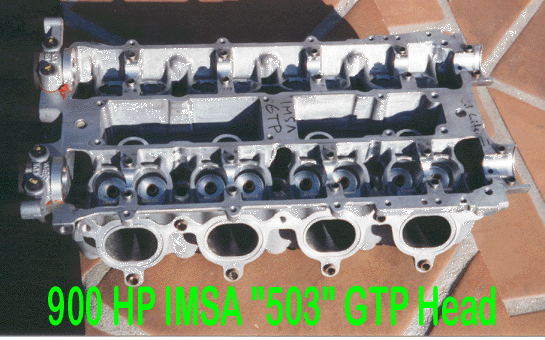

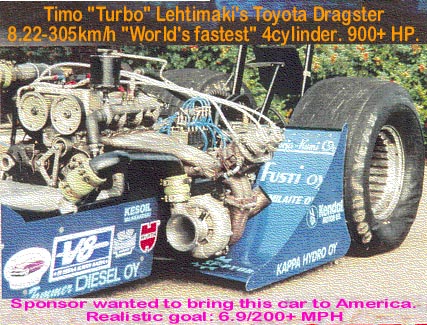

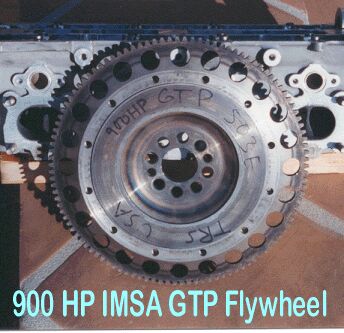

Dug up some old pics I've saved over the years






Check out those coolant passages in the head [:u]

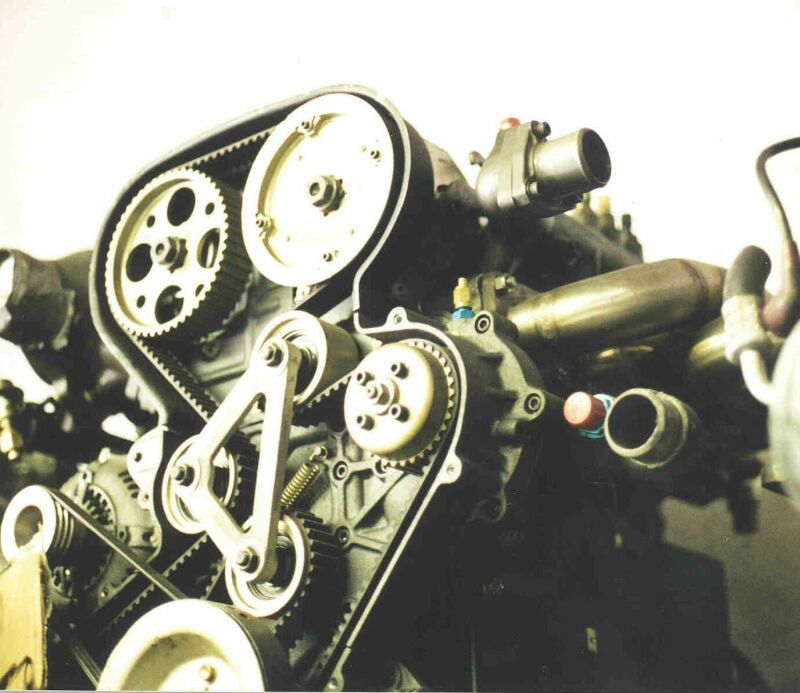

Couple more.....

great pictures shane, thanks for sharing.

best thread ever

Update time!

This is for sale atm (4-5k though)

This is a GT300/GT500 turbocharger.
