-Totenkopf-
Moderator
- Total Posts : 1356
- Scores: 18
- Reward points: 5145
- Joined: 2011/04/07 19:51:15
- Location: Ipswich, Queensland, Australia
- Status: offline
RE: robk's MR2 Turbo
2010/07/07 13:25:15
(permalink)
For your down pipe, I'd probably look at modifying (or buying a housing) to convert your turbine housing to vband outlet. 4 bolt outlet is a PITA, they constantly loosen up. Also, your downpipe appears to be ceramic coated so it seems like such a waste of $$$ to cut it up.
|
robk
MR2 Deity
- Total Posts : 2172
- Scores: 314
- Reward points: 5229
- Joined: 2011/04/07 19:51:15
- Location: Sydney / Central Coast, NSW Australia
- Status: offline
RE: robk's MR2 Turbo
2010/07/07 13:26:12
(permalink)
quote:
Originally posted by artymr2
Regarding stereo wiring, I took the power feed from the fuse box in the engine bay (you can bolt it to one of the 2 nuts on the main large power cable in there).
I know exactly what you mean with the 2 nuts in the fuse box, and that's exactly where I was thinking of getting power from for the amp. When does that point have 12V on it? Is it just whenever the ignition switch is on?
|
-Totenkopf-
Moderator
- Total Posts : 1356
- Scores: 18
- Reward points: 5145
- Joined: 2011/04/07 19:51:15
- Location: Ipswich, Queensland, Australia
- Status: offline
RE: robk's MR2 Turbo
2010/07/07 13:38:49
(permalink)
The large cable running into the fuse box in the engine compartment is constant 12V, its direct to battery.
|
jpaudio
MR2 Scholar
- Total Posts : 520
- Scores: 16
- Reward points: 3165
- Joined: 2011/04/07 19:51:15
- Location: Sydney nsw Australia
- Status: offline
RE: robk's MR2 Turbo
2010/07/07 13:46:47
(permalink)
I would really suggest wiring your amp directly to the battery with its own fuse... read the instructions for the amp and it will explain this.
|
robk
MR2 Deity
- Total Posts : 2172
- Scores: 314
- Reward points: 5229
- Joined: 2011/04/07 19:51:15
- Location: Sydney / Central Coast, NSW Australia
- Status: offline
RE: robk's MR2 Turbo
2010/07/07 13:47:58
(permalink)
quote:
Originally posted by -Totenkopf-
For your down pipe, I'd probably look at modifying (or buying a housing) to convert your turbine housing to vband outlet. 4 bolt outlet is a PITA, they constantly loosen up. Also, your downpipe appears to be ceramic coated so it seems like such a waste of $$$ to cut it up.
Yeah, my mechanic and I had considered these options and issues. It would be a shame to ruin the ceramic coating on the dump pipe, but by the same token the exhaust housing on the turbo has a nice ceramic coating too. My mech thought I should get a V-band to 4-bolt adaptor if possible, but that would probably stuff up the alignment of everything. Also, if I got an adaptor, I don't know if that would still suffer the loosening issues that you mentioned.
|
-Totenkopf-
Moderator
- Total Posts : 1356
- Scores: 18
- Reward points: 5145
- Joined: 2011/04/07 19:51:15
- Location: Ipswich, Queensland, Australia
- Status: offline
RE: robk's MR2 Turbo
2010/07/07 13:54:02
(permalink)
Trust me, I've been there, I was forever having to retighten my dump pipe connection, it was a pain in the arse. I dare say an adapter will miaslign the down pipe exit.
Sell your coated turbine housing and buy a vband version. What turbo do you have?
|
robk
MR2 Deity
- Total Posts : 2172
- Scores: 314
- Reward points: 5229
- Joined: 2011/04/07 19:51:15
- Location: Sydney / Central Coast, NSW Australia
- Status: offline
RE: robk's MR2 Turbo
2010/07/07 14:01:44
(permalink)
I'll talk to my mech to see if it will be much hassle to change the housing.
post edited by robk - 2014/06/18 15:02:06
|
-Totenkopf-
Moderator
- Total Posts : 1356
- Scores: 18
- Reward points: 5145
- Joined: 2011/04/07 19:51:15
- Location: Ipswich, Queensland, Australia
- Status: offline
RE: robk's MR2 Turbo
2010/07/07 14:07:38
(permalink)
Not much hassle, 6 bolts to undo, turbine housing comes straight off. You can get vband rear housings for the 3076, infact, there is a car in my shed with one on it.
|
robk
MR2 Deity
- Total Posts : 2172
- Scores: 314
- Reward points: 5229
- Joined: 2011/04/07 19:51:15
- Location: Sydney / Central Coast, NSW Australia
- Status: offline
RE: robk's MR2 Turbo
2010/07/07 14:50:33
(permalink)
Thanks for the advice, I'll look into it. quote:
Originally posted by jpaudio
I would really suggest wiring your amp directly to the battery with its own fuse... read the instructions for the amp and it will explain this.
Yeah I know that's the best way of doing it. I already have an installation kit including the power cables and fuse, I was just hoping that I could avoid running a power cable to the battery but still get a decent result by getting 12V from the engine bay instead.
|
artymr2
MR2 Deity
- Total Posts : 1105
- Scores: 45
- Reward points: 7867
- Joined: 2011/04/07 19:51:15
- Location: WA
- Status: offline
RE: robk's MR2 Turbo
2010/07/07 16:21:19
(permalink)
The cable running from the battery to the rear fuse box is quite beefy. Unless you are running huge monster amps, if you hook up to the rear fuse box I wouldn't think you would experience any significant voltage drop than if you hooked up straight to the battery (which I agree would be ideal). You could always hook it up temporarily, crank it up and see what voltage drop you are getting between the battery and the rear fuse box (and also amp to see if your actual amp wiring is getting any voltage drop, both feed and ground.
Whichever way you go, put a fuse in the power feed as close as possible to the power source for safety.
Your deck looks awesome btw. Will be interestin got get a report how it all works in practice once its up and running.
Cheers
|
2hardtop
MR2 Aficionado
- Total Posts : 547
- Scores: 4
- Reward points: 0
- Joined: 2011/04/07 19:51:15
- Location: NSW Australia
- Status: offline
RE: robk's MR2 Turbo
2010/07/07 21:07:52
(permalink)
+1 get a V-band exhaust housing
|
robk
MR2 Deity
- Total Posts : 2172
- Scores: 314
- Reward points: 5229
- Joined: 2011/04/07 19:51:15
- Location: Sydney / Central Coast, NSW Australia
- Status: offline
RE: robk's MR2 Turbo
2010/08/07 09:33:23
(permalink)

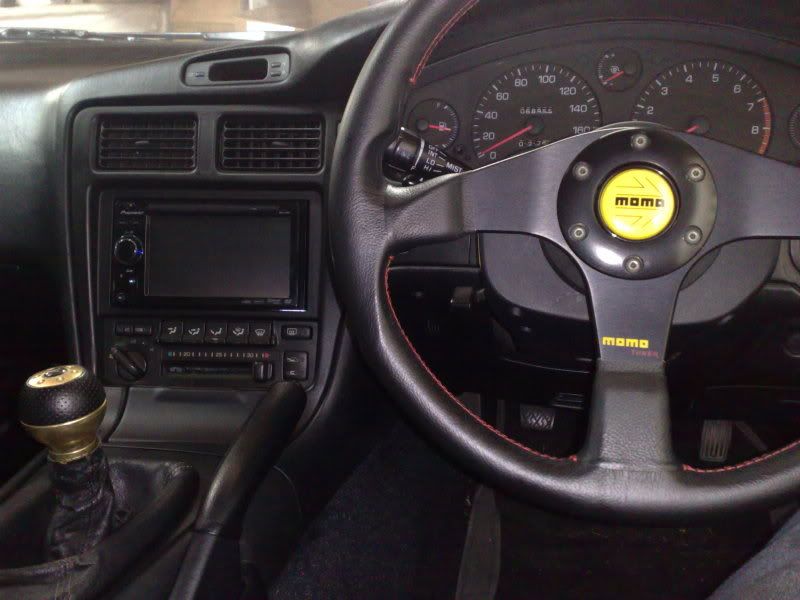

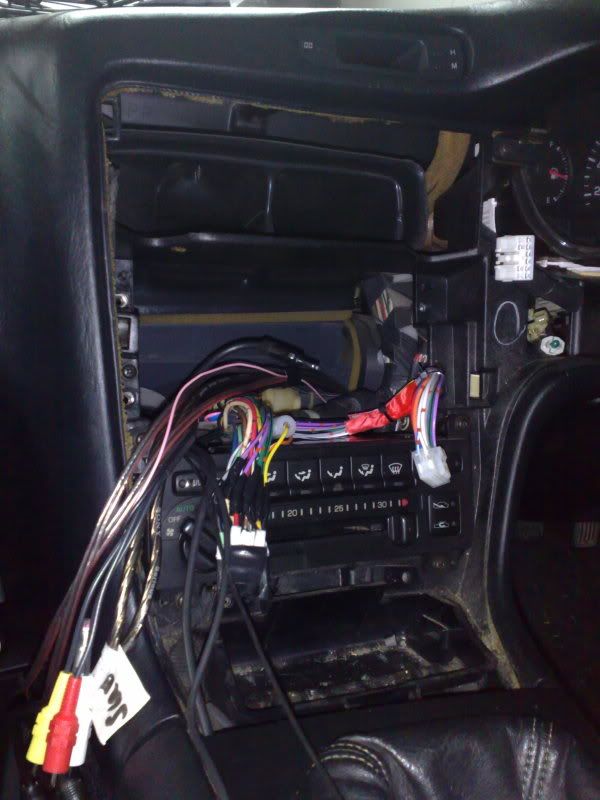

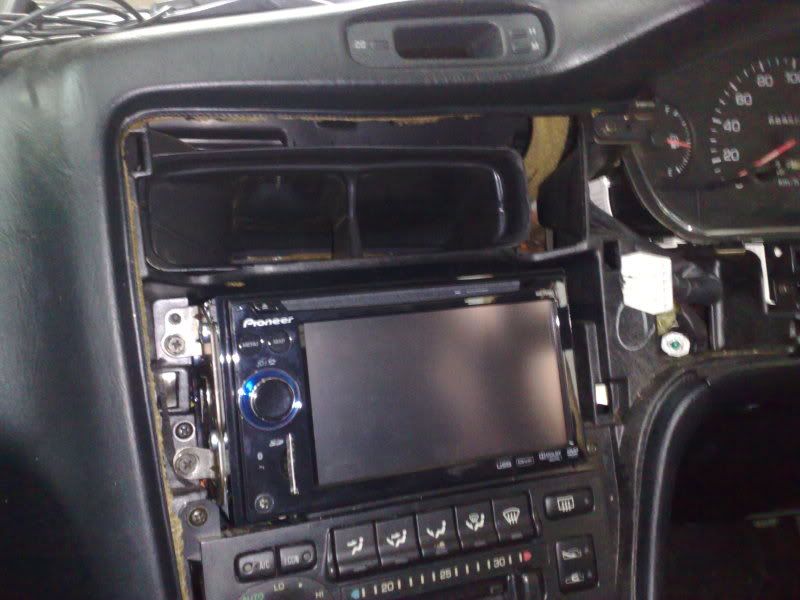

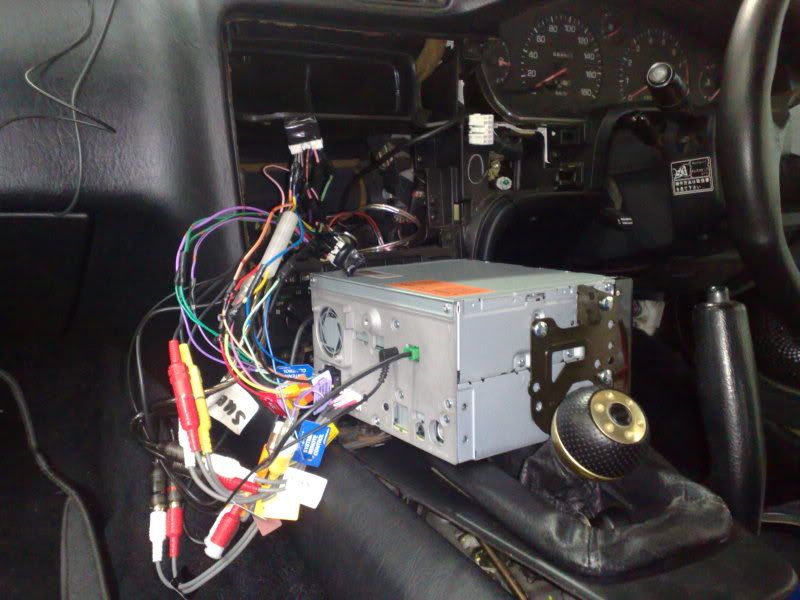

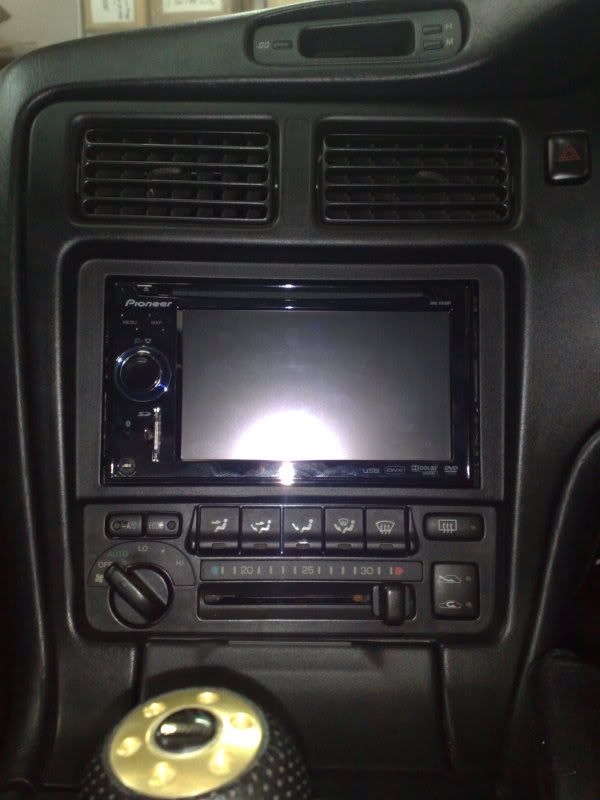

After doing an all-nighter last night, I've just finished installing the head unit, and I've run most of the cables for the amp. I ended up running all the cables in the door sill (much easier and tidier than I expected), and I ran the power cable straight to the battery rather than the engine bay fuse box. I'll put photos up later.
|
MR2QIK
MR2 Deity
- Total Posts : 2015
- Scores: 106
- Reward points: 3479
- Joined: 2011/04/07 19:51:15
- Location: Sydney NSW Australia
- Status: offline
RE: robk's MR2 Turbo
2010/08/07 10:05:27
(permalink)
*drools over the manifold*
|
robk
MR2 Deity
- Total Posts : 2172
- Scores: 314
- Reward points: 5229
- Joined: 2011/04/07 19:51:15
- Location: Sydney / Central Coast, NSW Australia
- Status: offline
RE: robk's MR2 Turbo
2010/08/07 10:55:28
(permalink)
quote:
Originally posted by MR2QIK
*drools over the manifold*
I took it home the day I got it, to show people, and the next day my mechanic was like "I wanted some alone time with it, but you had already taken it". LOL
|
robk
MR2 Deity
- Total Posts : 2172
- Scores: 314
- Reward points: 5229
- Joined: 2011/04/07 19:51:15
- Location: Sydney / Central Coast, NSW Australia
- Status: offline
RE: robk's MR2 Turbo
2010/08/07 20:17:46
(permalink)
|
