AnsweredHot!robk's MR2 Turbo

Page: << < ..111112113 > Showing page 111 of 113
Author
robk
MR2 Deity
  • Total Posts : 2327
  • Scores: 274
  • Reward points: 3911
  • Joined: 2011/04/07 19:51:15
  • Location: Sydney / Central Coast, NSW Australia
  • Status: online
Re: robk's MR2 Turbo 2018/06/06 11:26:10 (permalink)
0
The 5S block machining has now been completed.
The head was serviced too, and that went smoothly with no issues found.
This means that Advance will start reassembling everything very soon!

President of the MR2 Club of NSW.
There is an extensive build thread for my car here: http://www.mr2australia.com/mr2play/tm.aspx?m=18316
robk
MR2 Deity
  • Total Posts : 2327
  • Scores: 274
  • Reward points: 3911
  • Joined: 2011/04/07 19:51:15
  • Location: Sydney / Central Coast, NSW Australia
  • Status: online
Re: robk's MR2 Turbo 2018/06/27 11:43:50 (permalink)
+5 (5)
The re-assembly of the engine is almost complete. Here are some pics.

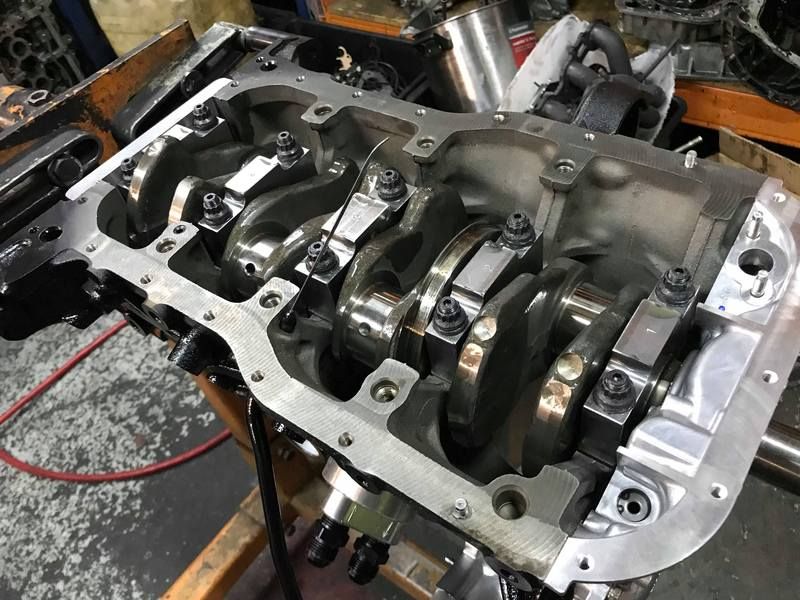

Hux Racing billet steel main caps:

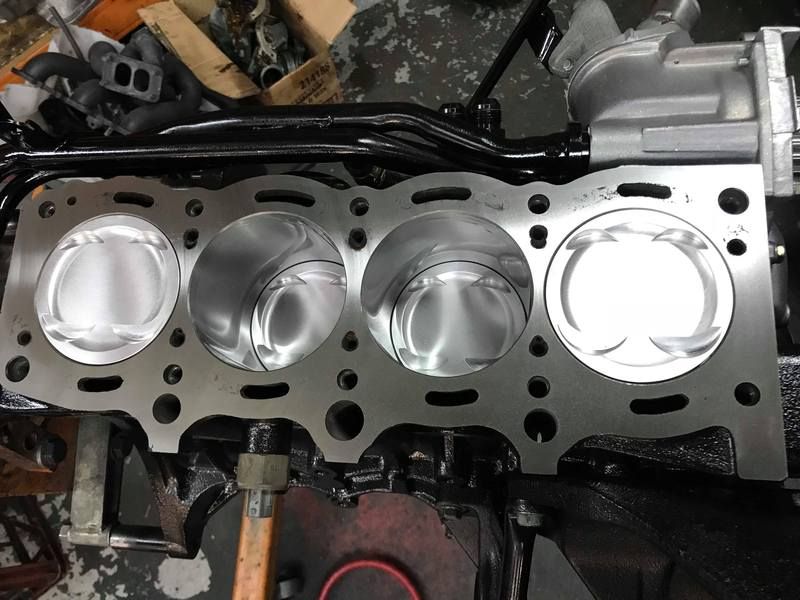

98+ 5S-FE block with pistons installed:

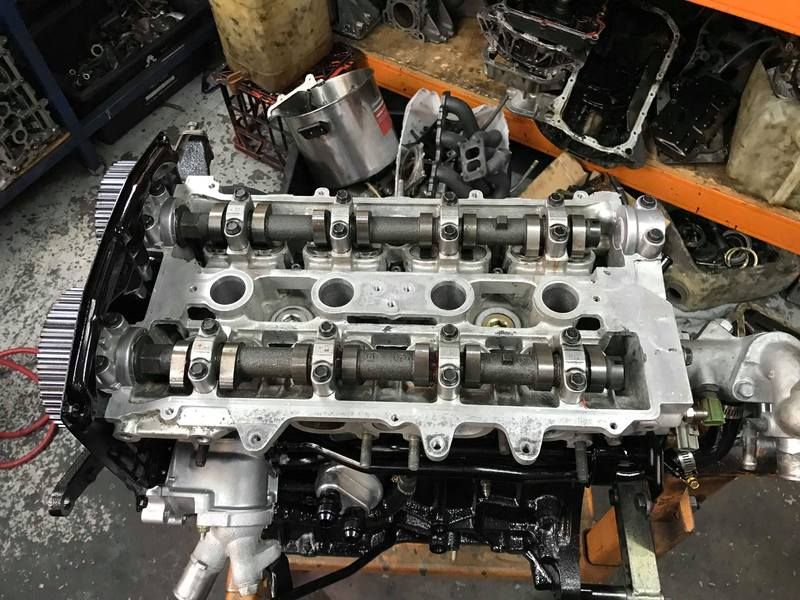

The Gen 2 3S-GTE head and cams are staying the same as before, but the head was just serviced.

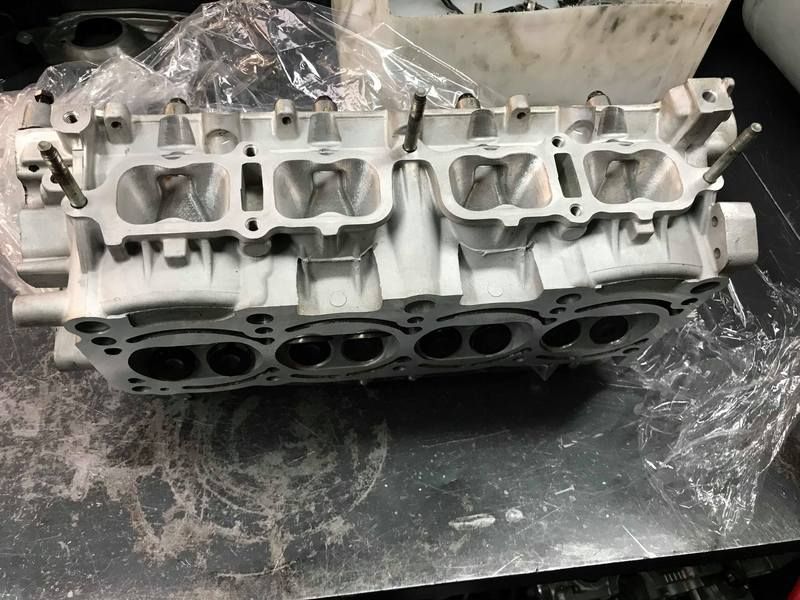

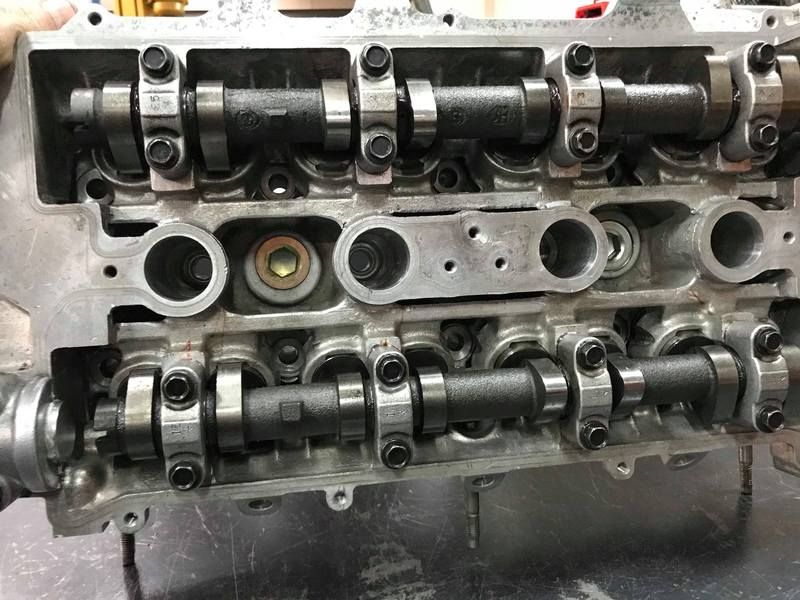

The head is already ported, it already has shimless buckets and upgraded valve springs/retainers, and the cams are the same as before (CamTech 265in/271ex cams):

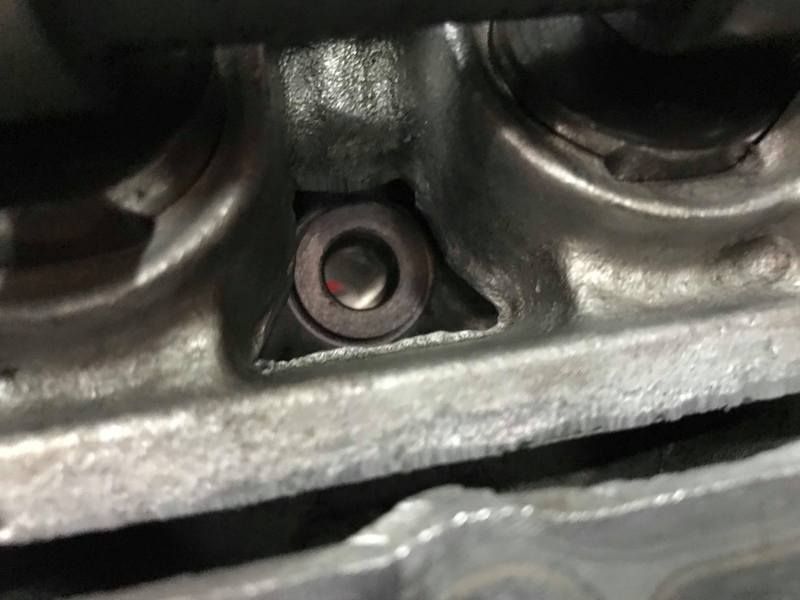

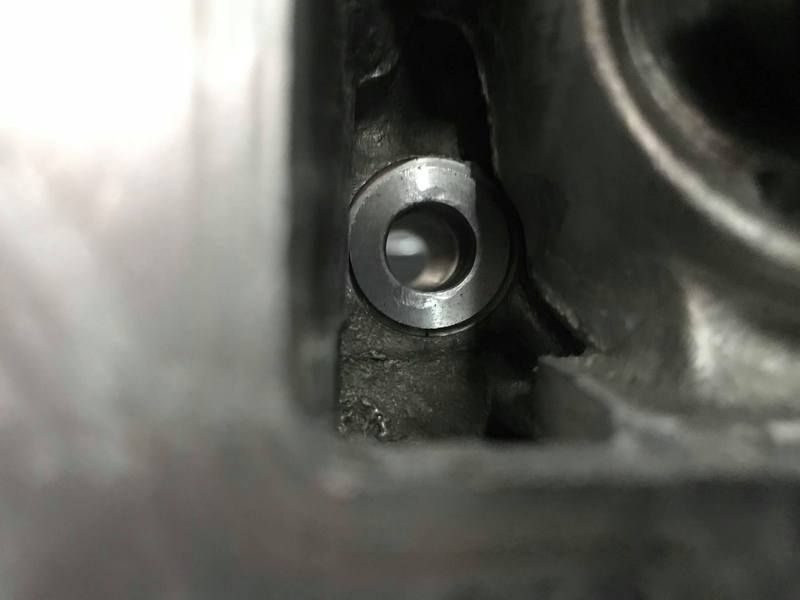

Hux Racing head stud support washers/hats (these require some machining of the head):

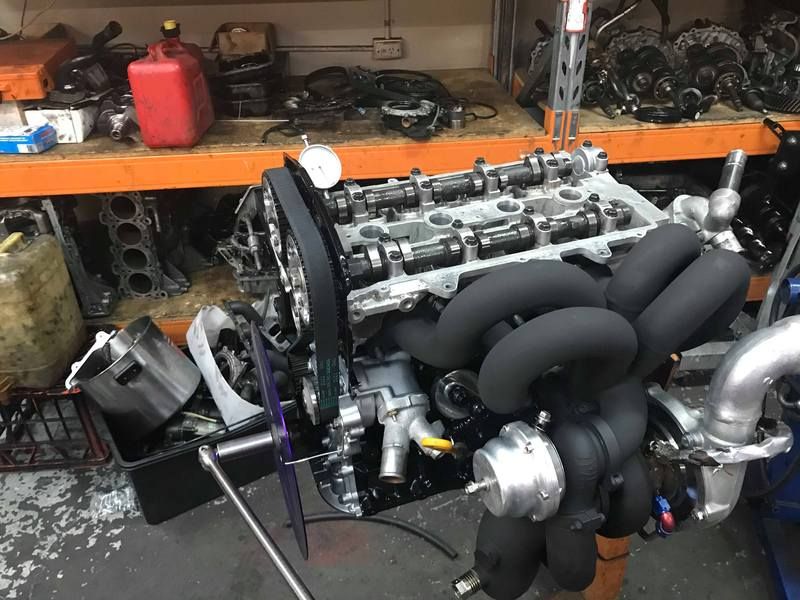

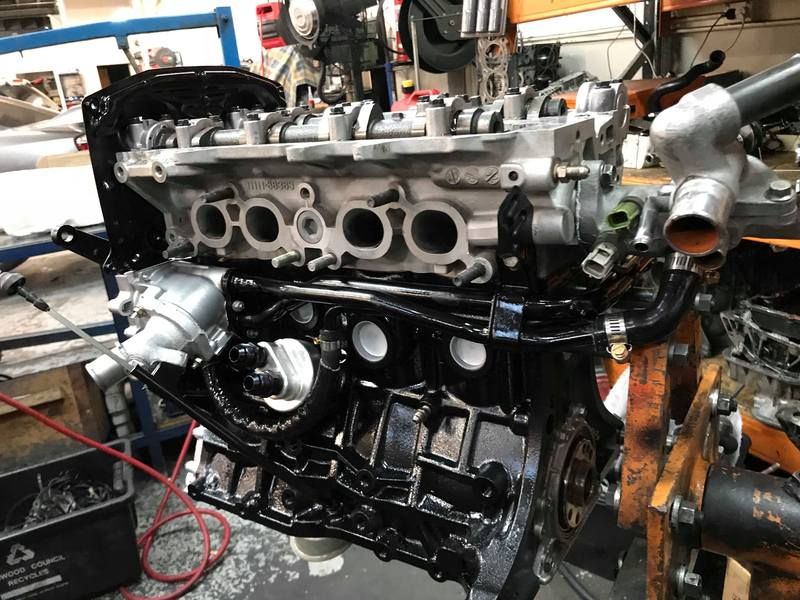

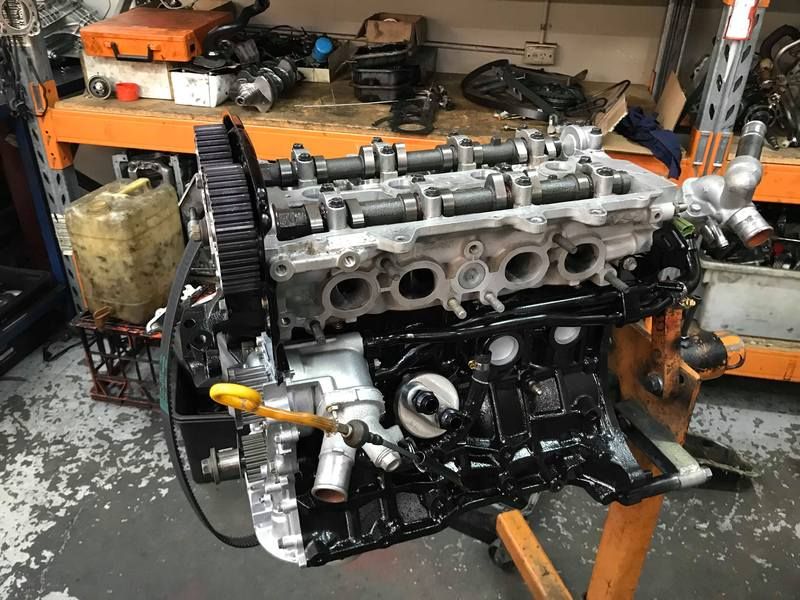

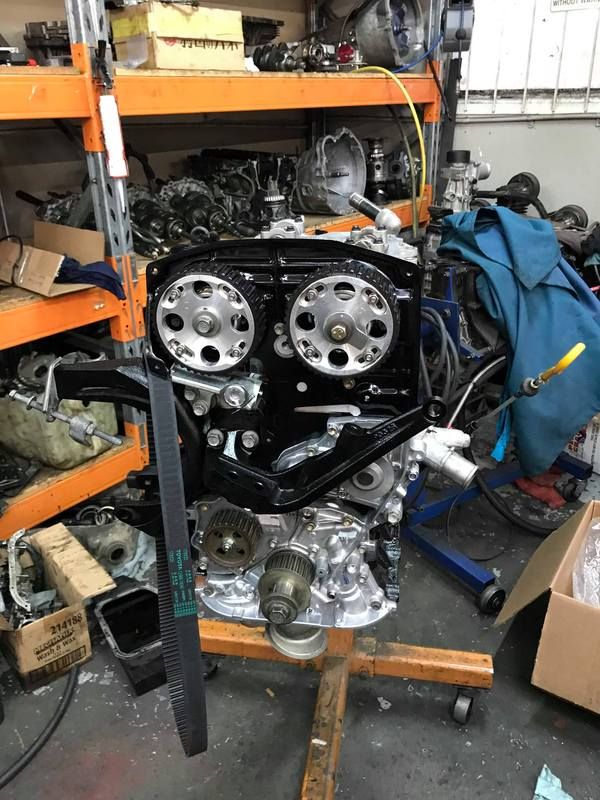

Not much left to do now:

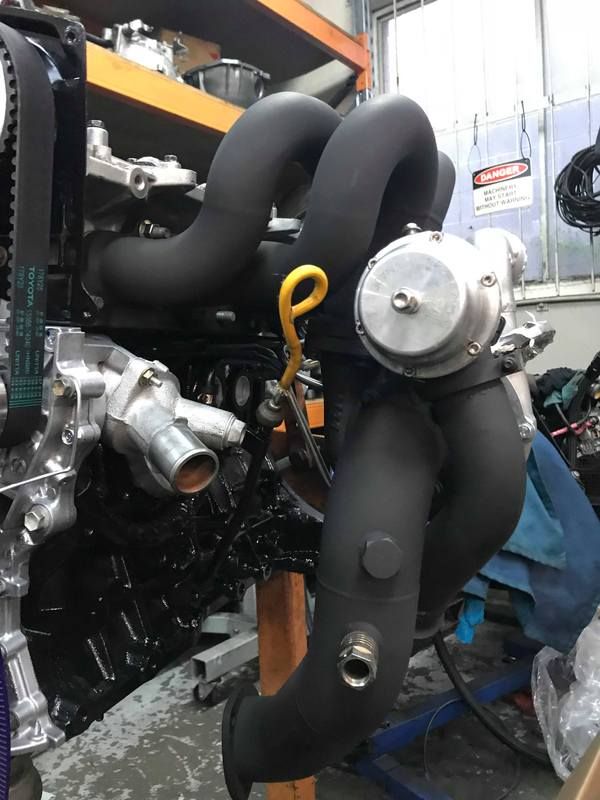

The exhaust system looks better than ever after a cosmetic clean up:





President of the MR2 Club of NSW.
There is an extensive build thread for my car here: http://www.mr2australia.com/mr2play/tm.aspx?m=18316
Admin
Administrator
  • Total Posts : 2145
  • Scores: 413
  • Reward points: 3832
  • Status: offline
Re: robk's MR2 Turbo 2018/06/27 19:41:23 (permalink)
+1 (1)
Looks great!

B24
Supporter
  • Total Posts : 2275
  • Scores: 232
  • Reward points: 3734
  • Joined: 2011/04/07 19:51:15
  • Location: Sydney NSW Australia
  • Status: offline
Re: robk's MR2 Turbo 2018/06/28 17:53:26 (permalink)
+1 (1)
Looking good Rob


SW20 V6 circuit car.
Wakefield Park: 1:07.7
Founder : MR2 Trackday Challenge

robk
MR2 Deity
  • Total Posts : 2327
  • Scores: 274
  • Reward points: 3911
  • Joined: 2011/04/07 19:51:15
  • Location: Sydney / Central Coast, NSW Australia
  • Status: online
Re: robk's MR2 Turbo 2018/07/03 16:26:56 (permalink)
+1 (1)
Thanks guys.

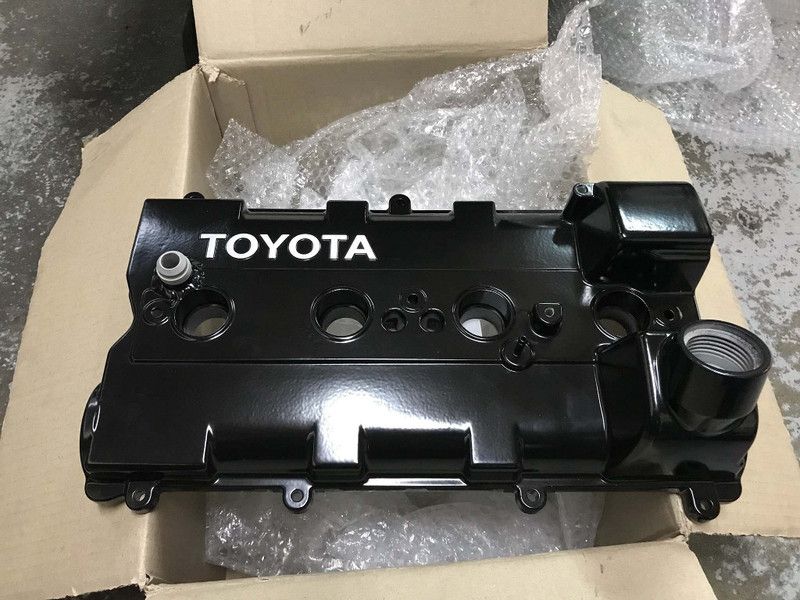

The cam cover also just received a fresh new coating:


President of the MR2 Club of NSW.
There is an extensive build thread for my car here: http://www.mr2australia.com/mr2play/tm.aspx?m=18316
Falcon
MR2 Deity
  • Total Posts : 479
  • Scores: 123
  • Reward points: 3751
  • Joined: 2011/04/07 19:51:15
  • Location: Brisbane Australia
  • Status: offline
Re: robk's MR2 Turbo 2018/07/04 07:53:18 (permalink)
0
Rob. I like it. I'm sure it would already have been taken care of but I have seen it forgotten when swapping from
3S to 5S block. Tap a thread in the oil feed for the 5S  balance shafts and seal in a grub screw.
robk
MR2 Deity
  • Total Posts : 2327
  • Scores: 274
  • Reward points: 3911
  • Joined: 2011/04/07 19:51:15
  • Location: Sydney / Central Coast, NSW Australia
  • Status: online
Re: robk's MR2 Turbo 2018/07/04 10:40:12 (permalink)
0
Falcon
Rob. I like it. I'm sure it would already have been taken care of but I have seen it forgotten when swapping from
3S to 5S block. Tap a thread in the oil feed for the 5S  balance shafts and seal in a grub screw.

You're not the first person to mention that, but it's already been done :-) I think it was done in the photos too, but it's just hard to see.

President of the MR2 Club of NSW.
There is an extensive build thread for my car here: http://www.mr2australia.com/mr2play/tm.aspx?m=18316
Admin
Administrator
  • Total Posts : 2145
  • Scores: 413
  • Reward points: 3832
  • Status: offline
Re: robk's MR2 Turbo 2018/07/04 12:21:21 (permalink)
0
?? Mine doesn't have balance shafts.
I thought it was only the early model blocks that have them.
robk
MR2 Deity
  • Total Posts : 2327
  • Scores: 274
  • Reward points: 3911
  • Joined: 2011/04/07 19:51:15
  • Location: Sydney / Central Coast, NSW Australia
  • Status: online
Re: robk's MR2 Turbo 2018/07/04 12:41:15 (permalink)
0
My 98+ 5SFE had balance shafts which needed to be removed.

President of the MR2 Club of NSW.
There is an extensive build thread for my car here: http://www.mr2australia.com/mr2play/tm.aspx?m=18316
Jaemus
MR2 Deity
  • Total Posts : 202
  • Scores: 66
  • Reward points: 3155
  • Joined: 2011/04/07 19:51:15
  • Location: Sydney, NSW
  • Status: offline
RE: robk's MR2 Turbo 2018/07/04 14:29:38 (permalink)
0
I'm pretty sure the balance shaft thing is to do with whether it came from a Celica or a Camry, not what year it is

Builder / Former owner of: Australia's first V6 converted SW20
Current ride: '92 JDM GT turbo hardtop
MCT_MR2
MR2 Deity
  • Total Posts : 633
  • Scores: 104
  • Reward points: 3306
  • Joined: 2011/04/07 19:51:15
  • Location: Melbourne Victoria Australia
  • Status: offline
RE: robk's MR2 Turbo 2018/07/04 16:07:12 (permalink)
0
Jaemus is spot on. Origin of the block dictates the balance shafts.

'88 MR2 4AGTE W/ EFR6258

224.6KW @ 20PSI

more to come......
Admin
Administrator
  • Total Posts : 2145
  • Scores: 413
  • Reward points: 3832
  • Status: offline
RE: robk's MR2 Turbo 2018/07/04 17:49:35 (permalink)
0
Aha! Good to know
DamMR2T
MR2 Aficionado
  • Total Posts : 132
  • Scores: 10
  • Reward points: 3429
  • Joined: 2011/04/07 19:51:15
  • Status: offline
RE: robk's MR2 Turbo 2018/07/05 13:00:11 (permalink)
0
My 5SGTE has the Camry block with a Celica crankshaft.

This thread has more detail, see the 1st post section 5SFE Parts / Block Prep C:
https://www.mr2oc.com/61-3sgte-turbo/395274-how-build-5sgte.html

I have attached the associated picture which has been removed from that thread, and was sent to my engine builder for reference, so Rob will be fine.



Attached Image(s)

robk
MR2 Deity
  • Total Posts : 2327
  • Scores: 274
  • Reward points: 3911
  • Joined: 2011/04/07 19:51:15
  • Location: Sydney / Central Coast, NSW Australia
  • Status: online
RE: robk's MR2 Turbo 2018/07/07 20:59:20 (permalink)
+2 (2)

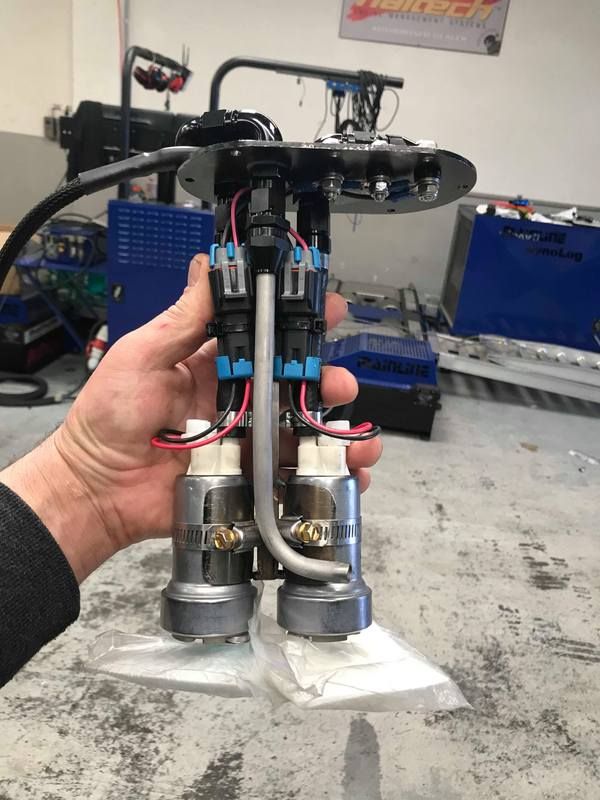

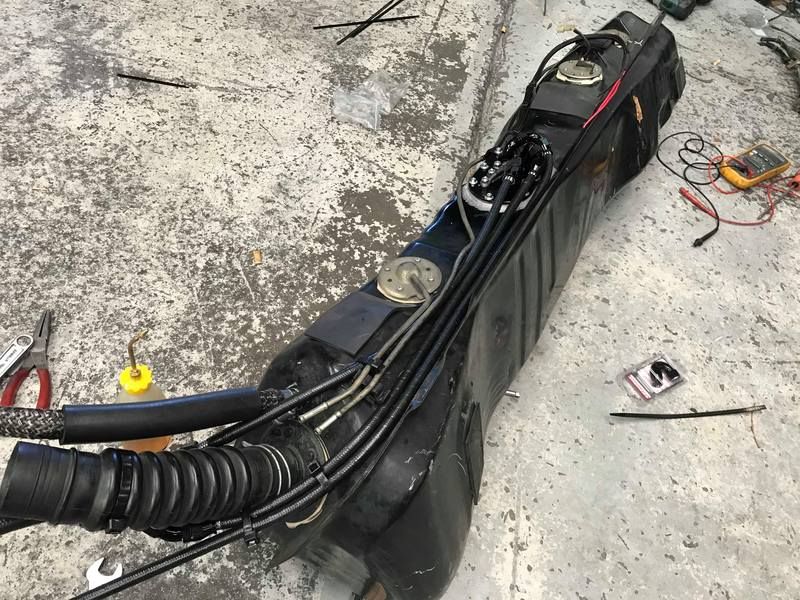

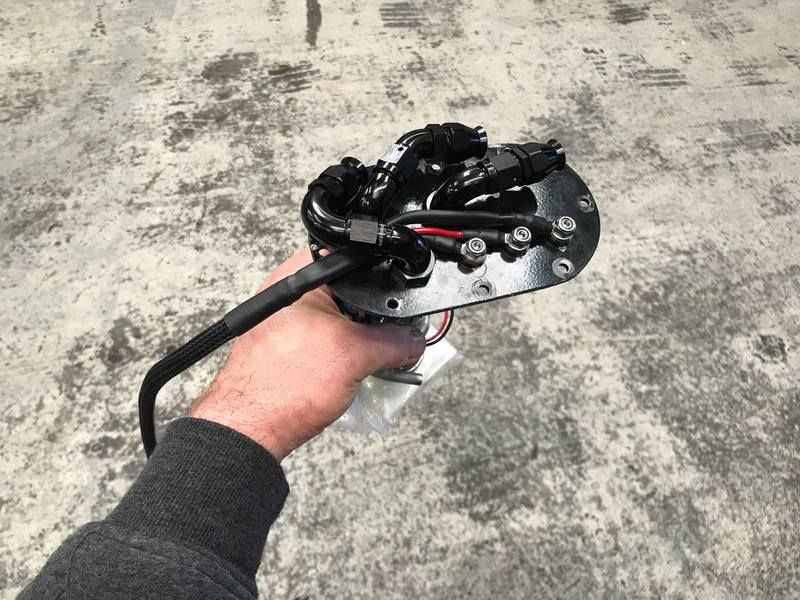

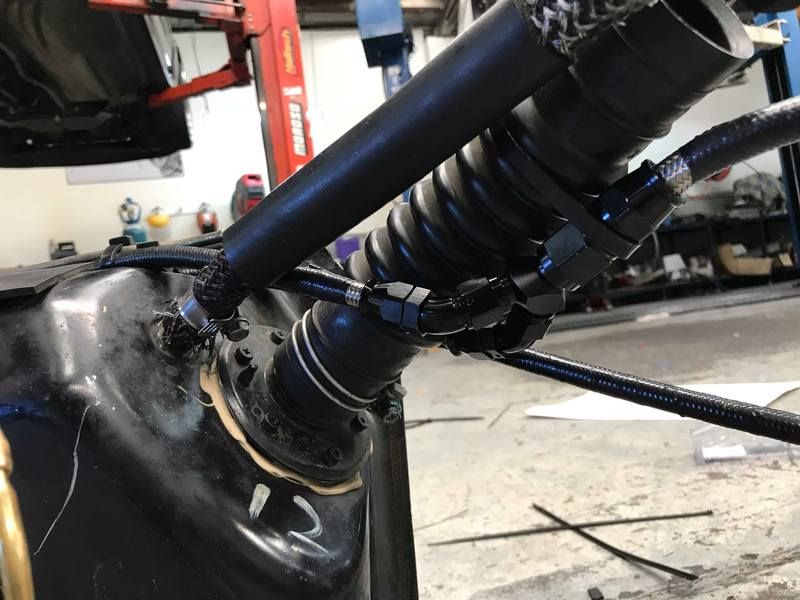

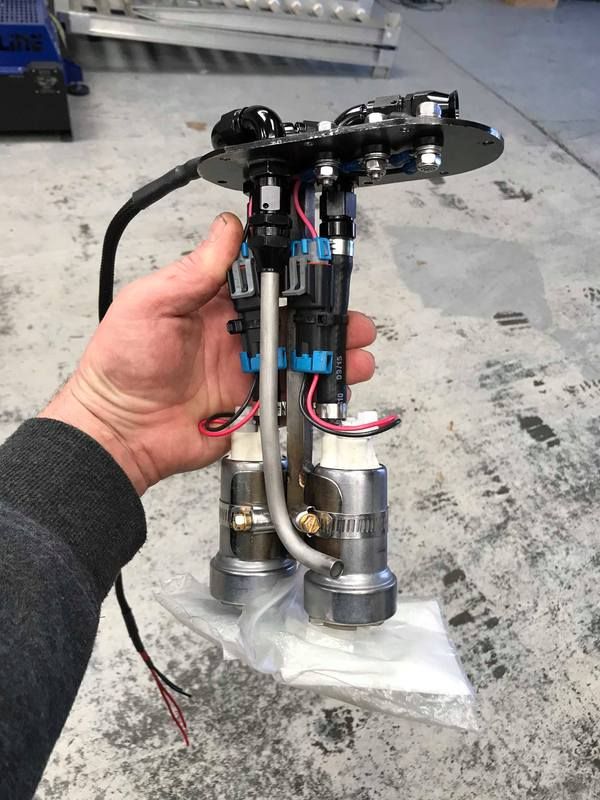

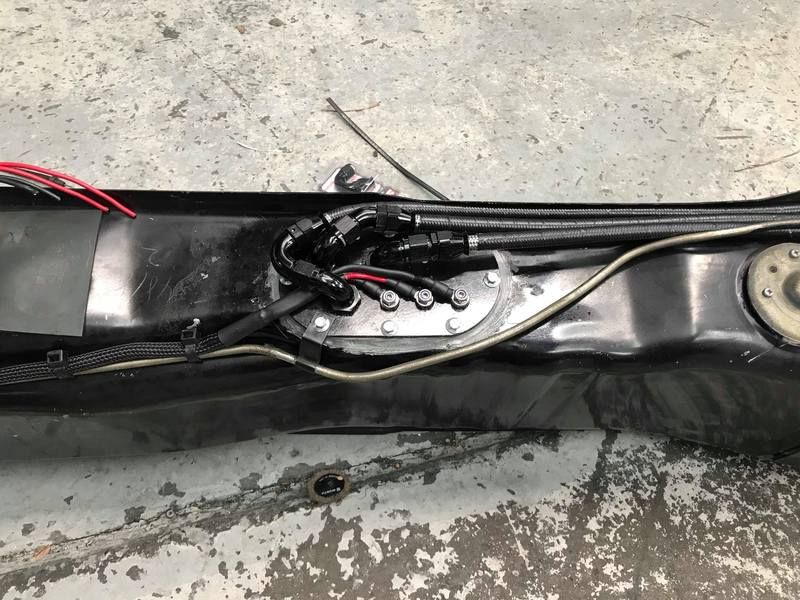

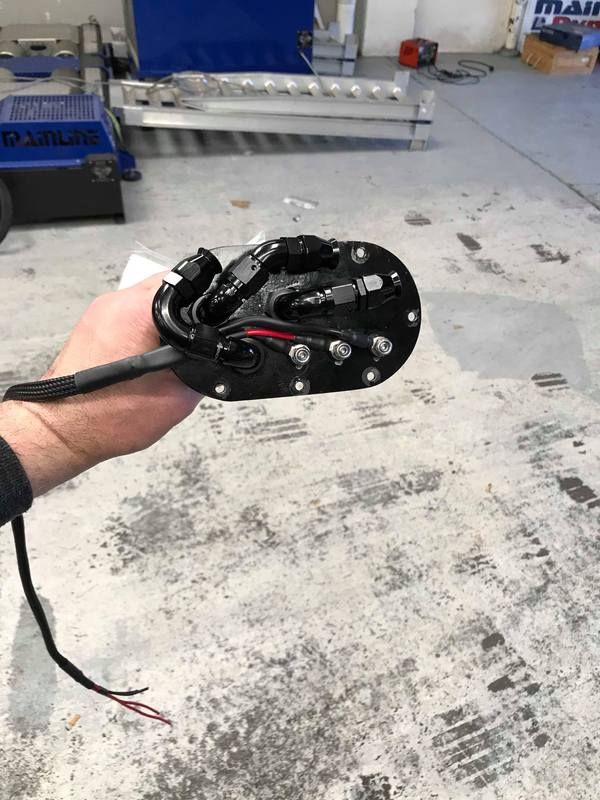

Here's the custom twin fuel pump setup in the stock fuel tank.
It's a pair of F90000267 Walbro E85 fuel pumps, on a custom hanger, with a custom enlarged opening on top of the stock fuel tank. There's a -6 return line, and twin -6 fuel feed lines merging into the existing single -8 line that goes to the fuel rail via a Speedflow fuel filter. The entire fuel system uses braided Teflon fuel lines.
Yes these pumps combined will provide way more fuel flow than I need without a bigger turbo, but I'm not comfortable with how close I am to the limit of one of these pumps, and these are the only ones I trust on E85.
















President of the MR2 Club of NSW.
There is an extensive build thread for my car here: http://www.mr2australia.com/mr2play/tm.aspx?m=18316
DamMR2T
MR2 Aficionado
  • Total Posts : 132
  • Scores: 10
  • Reward points: 3429
  • Joined: 2011/04/07 19:51:15
  • Status: offline
RE: robk's MR2 Turbo 2018/07/07 22:17:07 (permalink)
0
Wow that's nice and tidy.
Did you help design it all?
