AdrianS
MR2 Enthusiast
- Total Posts : 128
- Scores: 0
- Reward points: 1178
- Joined: 2011/04/07 19:51:15
- Location: Melbourne Australia
- Status: offline
RE: Adrian's Adub
2010/10/21 19:18:49
(permalink)

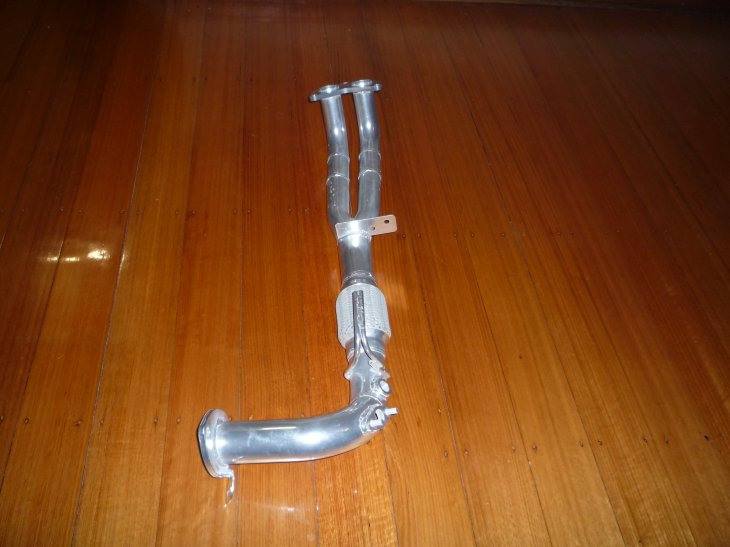

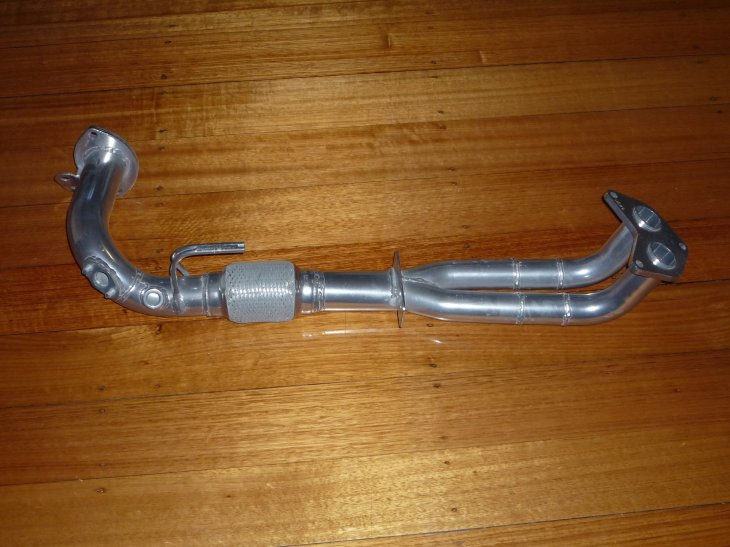

Modified exhaust back from Jet-Hot. Now ceramic coated and ready to fit. I changed it to a "long runner" design, secondary lengths now identical to OEM blacktop pipe. Also welded on a bracket for rear engine block hanger (fabricated from 2.5 mm plate).
|
RobYob
MR2 Aficionado
- Total Posts : 631
- Scores: 5
- Reward points: 1346
- Joined: 2011/04/07 19:51:15
- Location: Melbourne Vic Australia
- Status: offline
RE: Adrian's Adub
2010/10/21 19:46:17
(permalink)
Seems a shame to hide it away under the car!
|
AdrianS
MR2 Enthusiast
- Total Posts : 128
- Scores: 0
- Reward points: 1178
- Joined: 2011/04/07 19:51:15
- Location: Melbourne Australia
- Status: offline
RE: Adrian's Adub
2010/10/21 19:56:27
(permalink)
Yes, although the coating is mainly to avoid cooking the driveshaft cv boot.
Silver is actually their cheapest colour !
|
AdrianS
MR2 Enthusiast
- Total Posts : 128
- Scores: 0
- Reward points: 1178
- Joined: 2011/04/07 19:51:15
- Location: Melbourne Australia
- Status: offline
RE: Adrian's Adub
2010/10/28 19:14:29
(permalink)
Exhaust all welded & painted - pics tomorrow.
In other news : My oil cooler has re-appeared !
---- quote ----
Your item cleared customs in AUSTRALIA at 6:06 pm on October 27, 2010. Information, if available, is updated periodically throughout the day. Please check again later.
Detailed Results:
Out of Foreign Customs, October 27, 2010, 6:06 pm, AUSTRALIA
Into Foreign Customs, October 27, 2010, 5:56 pm, AUSTRALIA
Arrived Abroad, October 27, 2010, 5:55 pm, AUSTRALIA
International Dispatch, October 09, 2010, 8:54 pm, ISC CHICAGO IL (USPS)
Arrival
Acceptance, October 08, 2010, 4:46 pm, INDIANAPOLIS, IN 46204
---- end quote ----
I don't know where it was for the 18 days between "International Dispatch, October 09" and "Arrived Abroad, October 27", but it hasn't disappeared forever !
4 day weekend coming up - finish the car, or fish ?
|
AdrianS
MR2 Enthusiast
- Total Posts : 128
- Scores: 0
- Reward points: 1178
- Joined: 2011/04/07 19:51:15
- Location: Melbourne Australia
- Status: offline
RE: Adrian's Adub
2010/10/29 19:24:10
(permalink)

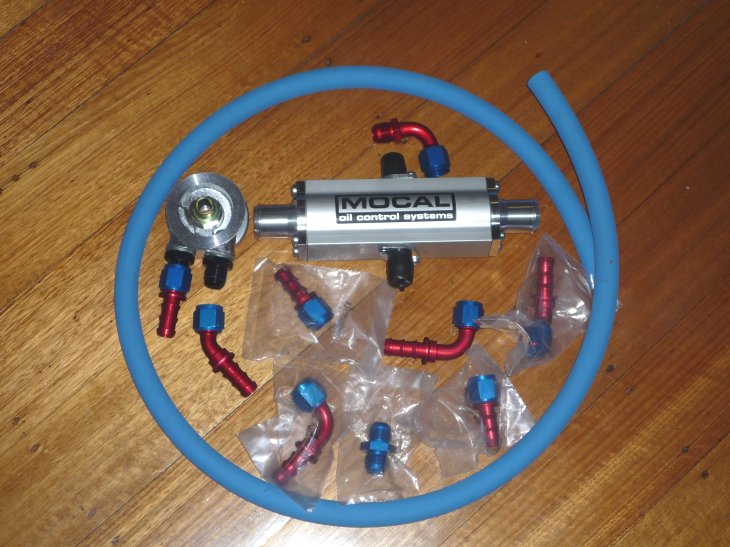

It's here !
|
AdrianS
MR2 Enthusiast
- Total Posts : 128
- Scores: 0
- Reward points: 1178
- Joined: 2011/04/07 19:51:15
- Location: Melbourne Australia
- Status: offline
RE: Adrian's Adub
2010/10/30 23:02:52
(permalink)

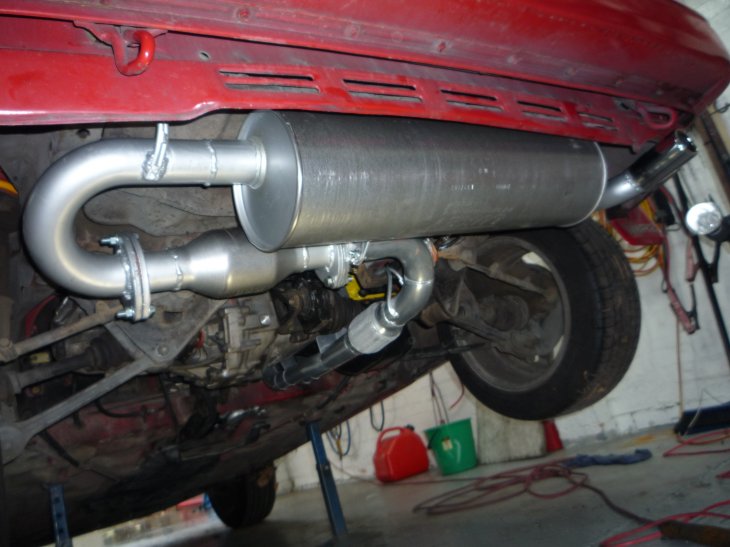

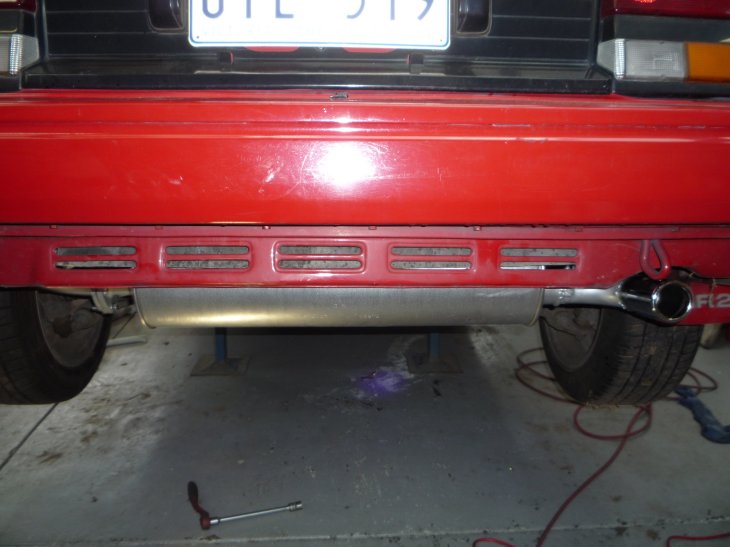

Exhaust is in at last :  A snug fit, but pretty discreet :
|
AdrianS
MR2 Enthusiast
- Total Posts : 128
- Scores: 0
- Reward points: 1178
- Joined: 2011/04/07 19:51:15
- Location: Melbourne Australia
- Status: offline
RE: Adrian's Adub
2010/10/30 23:04:24
(permalink)
BLACKTOP IS GO !
Started engine today. Still have some wiring and cooling issues, but tomorrow is d-day.
|
RobYob
MR2 Aficionado
- Total Posts : 631
- Scores: 5
- Reward points: 1346
- Joined: 2011/04/07 19:51:15
- Location: Melbourne Vic Australia
- Status: offline
RE: Adrian's Adub
2010/10/31 11:33:13
(permalink)
Nice, very snazzy oil cooler.
I should look for one too while the $ is stills strong.
|
AdrianS
MR2 Enthusiast
- Total Posts : 128
- Scores: 0
- Reward points: 1178
- Joined: 2011/04/07 19:51:15
- Location: Melbourne Australia
- Status: offline
RE: Adrian's Adub
2010/10/31 22:17:40
(permalink)
Car is now back home. Lots of tidying up to do, but the operation has been a success.
Rob - oil cooler seems very nicely made. It cost me around $300.
I am getting a custom 90 deg takeoff made up for the cooler lower oil line, so I can set the cooler just above the rear chassis rail.
For now, I'm running without a cooler, while I get the mounts made up, and replacements for the prototype filler neck.
When all the bits arrive and are welded up, I'll re-do the cooling layout and plumb in the cooler.
|
AdrianS
MR2 Enthusiast
- Total Posts : 128
- Scores: 0
- Reward points: 1178
- Joined: 2011/04/07 19:51:15
- Location: Melbourne Australia
- Status: offline
RE: Adrian's Adub
2010/04/11 22:45:31
(permalink)

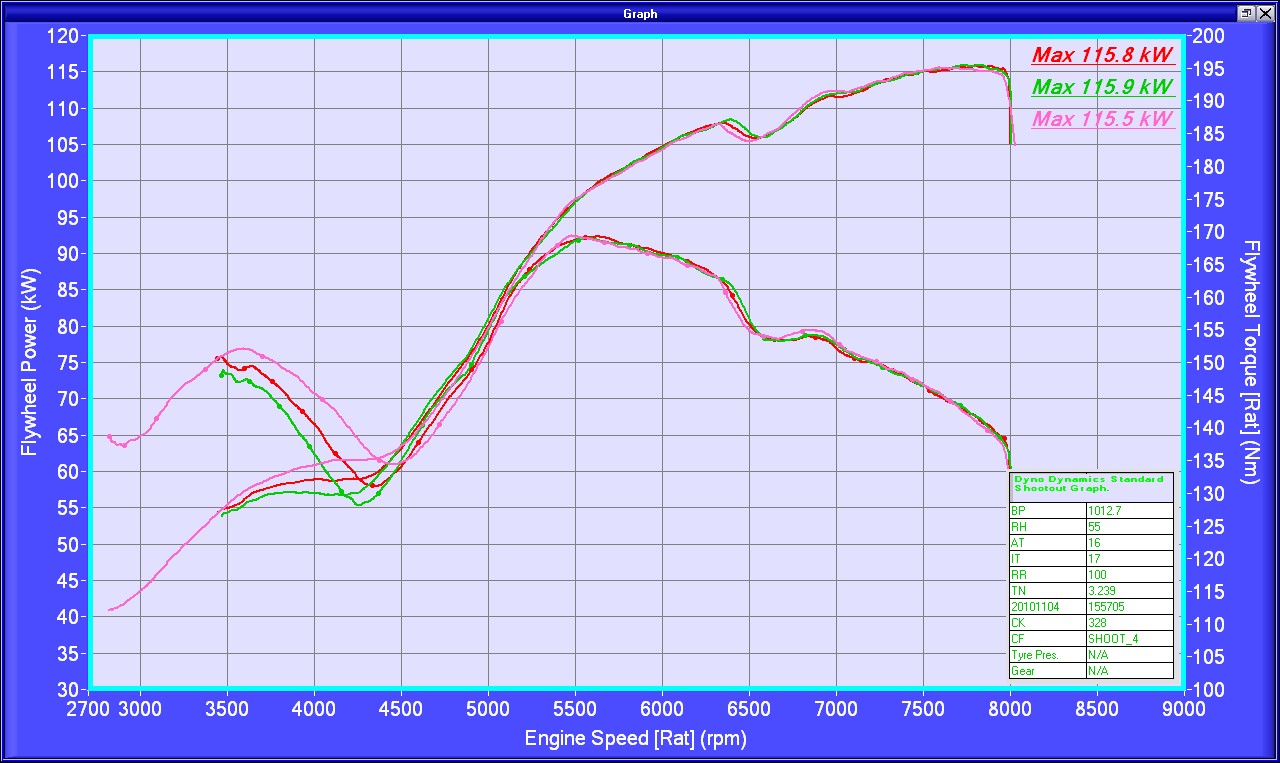

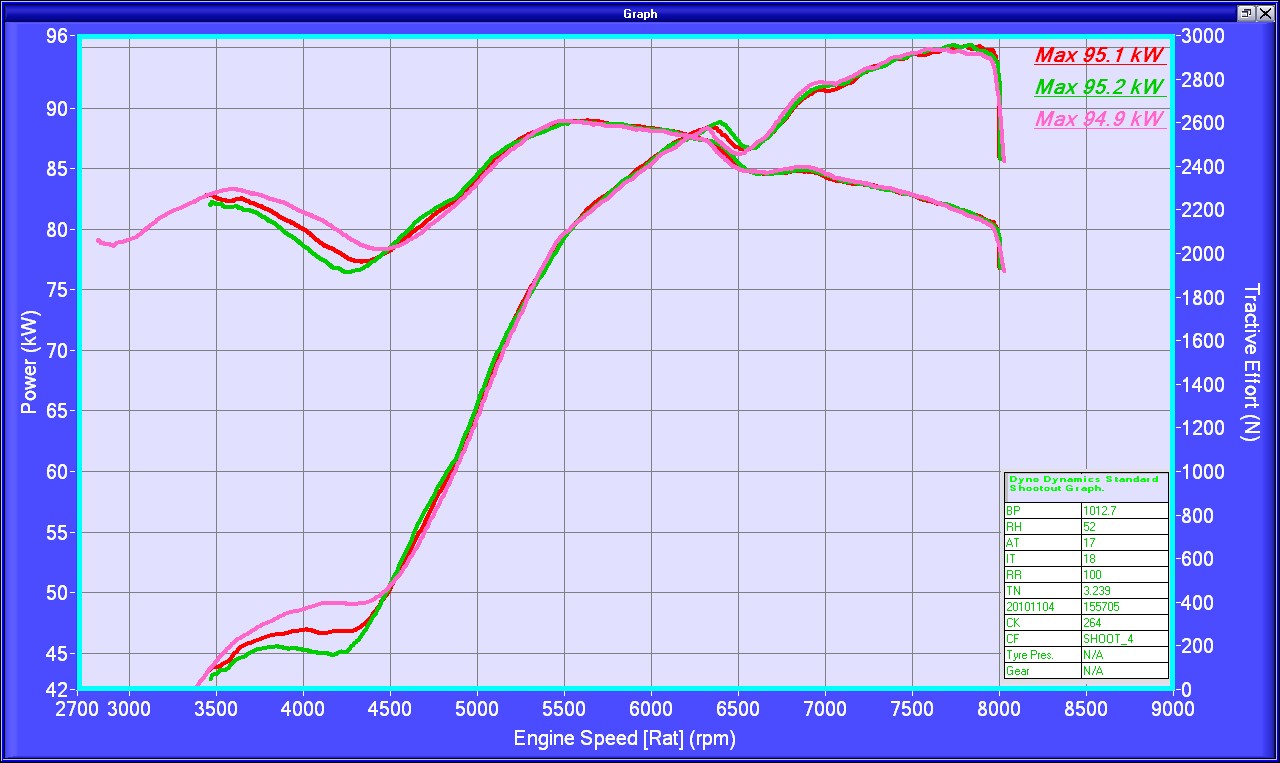

First dyno runs : as installed, not yet tuned. 95 kW at the wheels (est. 116 at flywheel). Happy me :) Tacho ratio not quite right - it's a couple of hundred RPM low at the top end.   Now to sort out the dip at 6500 RPM.
|
RobYob
MR2 Aficionado
- Total Posts : 631
- Scores: 5
- Reward points: 1346
- Joined: 2011/04/07 19:51:15
- Location: Melbourne Vic Australia
- Status: offline
RE: Adrian's Adub
2010/05/11 08:05:16
(permalink)
Sweet. Will have to blag a ride at HH.
|
AdrianS
MR2 Enthusiast
- Total Posts : 128
- Scores: 0
- Reward points: 1178
- Joined: 2011/04/07 19:51:15
- Location: Melbourne Australia
- Status: offline
RE: Adrian's Adub
2010/07/11 20:13:59
(permalink)
quote:
Originally posted by RobYob
Sweet. Will have to blag a ride at HH.
No problems. I hope to have the rear shocks and mk1b brakes in by then.
|
AdrianS
MR2 Enthusiast
- Total Posts : 128
- Scores: 0
- Reward points: 1178
- Joined: 2011/04/07 19:51:15
- Location: Melbourne Australia
- Status: offline
RE: Adrian's Adub
2010/07/11 20:19:33
(permalink)

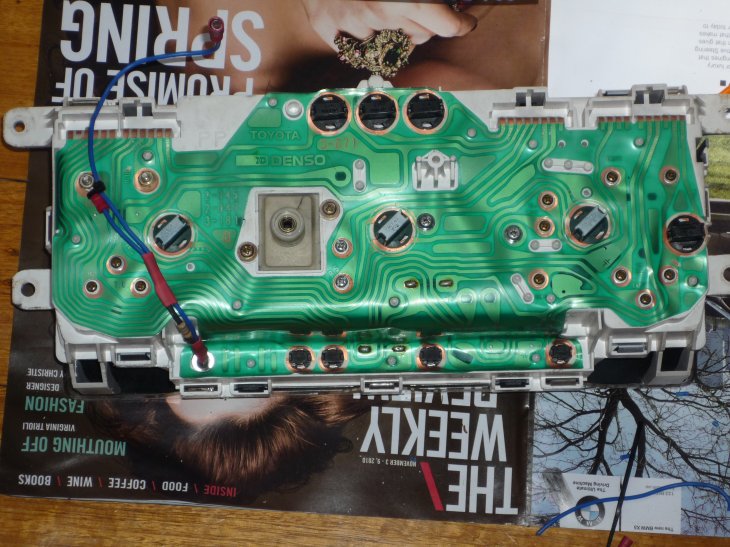

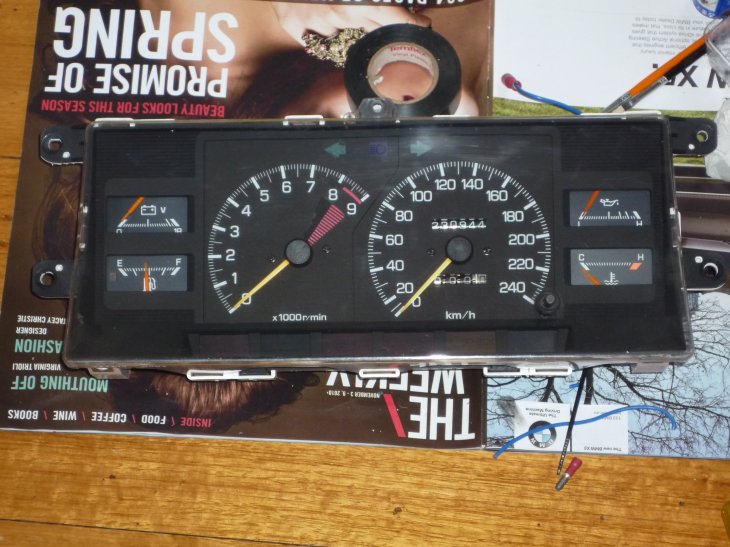

Oil pressure light is in, fitted in unused warning light slot :  Tacho "improved" :  Stereo wiring, alarm, and afr sensor to go, and I can reassemble the interior. I scored a KMX wideband display and O2 sensor from work : evaluation kit that we've finished evaluating ! More bloody wiring...
|
5SGTE
MR2 Deity
- Total Posts : 1909
- Scores: 163
- Reward points: 4724
- Joined: 2011/04/07 19:51:15
- Location: qld Australia
- Status: offline
RE: Adrian's Adub
2010/08/11 19:24:00
(permalink)
quote:
Originally posted by AdrianS
It's here !
Nice, it appears you too have great taste in parts. Let us know how it goes.
|
AdrianS
MR2 Enthusiast
- Total Posts : 128
- Scores: 0
- Reward points: 1178
- Joined: 2011/04/07 19:51:15
- Location: Melbourne Australia
- Status: offline
RE: Adrian's Adub
2010/08/11 20:46:01
(permalink)
quote:
Originally posted by xmr20
Nice, it appears you too have great taste in parts. Let us know how it goes.
Thanks. I've been waiting for my "aloominum toobes" for the cooling system. They arrived today - hope I don't get invaded by the US ! I will remake my prototype filler neck properly over the next week or so; when that's done I'll fit the new filler neck and the oil cooler at the same time - it saves draining the cooling system twice. I plan on re-using the original oil cooler mounting location - make up an alloy plate that lines up on the bolt holes, and clamp the new cooler to it with stainless hose clamps. Current task is to finish the stereo & wideband wiring, hopfully by this weekend; then all I need is the new alarm before putting the lower dash panels in for good.
|
