Carmikey
MR2 Deity
- Total Posts : 1969
- Scores: 260
- Reward points: 6437
- Joined: 2012/04/23 15:31:23
- Location: Greenwith 5125, S.A. Australia
- Status: offline
Re: Rev 5 Track time (2GR)
2019/06/07 08:54:32
(permalink)
sr2223
any updates, who is doing your plug and play wiring harness?
Harness has been completed, took additional time / research due to the fact of being a later 99 model so tracking down exact wiring diagram was a little tricky, but Yes done. Harness was done by a guy by the name of Troy Wastell, located in VIC. I haven't yet installed it, as I have another car I'm currently working on, which is priority ATM, soon as its out the way, I can resume on the 2GR again.... miss working on it to be completely honest! Will update soon
post edited by Carmikey - 2019/06/07 10:53:20
|
Carmikey
MR2 Deity
- Total Posts : 1969
- Scores: 260
- Reward points: 6437
- Joined: 2012/04/23 15:31:23
- Location: Greenwith 5125, S.A. Australia
- Status: offline
Re: Rev 5 Track time (2GR)
2019/06/25 16:27:12
(permalink)

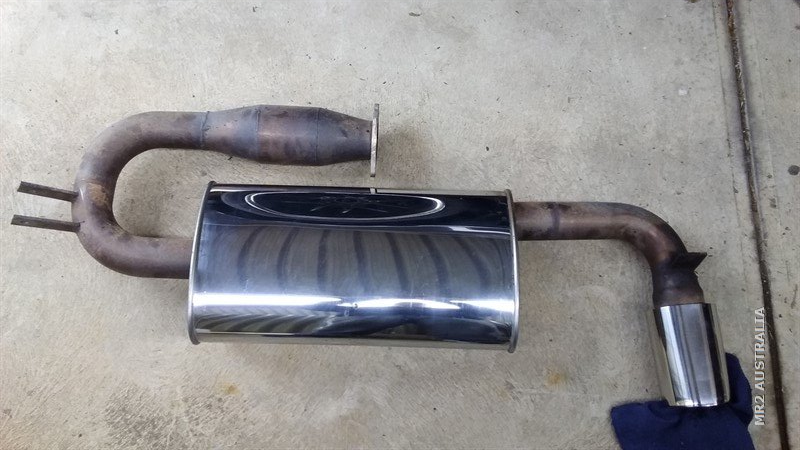

Quick update: Got half the exhaust sorted (1)(1).jpg) (1)(1).jpg) Wiring harness back   6 rib belt from USA .jpg)
|
Carmikey
MR2 Deity
- Total Posts : 1969
- Scores: 260
- Reward points: 6437
- Joined: 2012/04/23 15:31:23
- Location: Greenwith 5125, S.A. Australia
- Status: offline
Re: Rev 5 Track time (2GR)
2020/04/02 21:51:29
(permalink)
Finally getting stuck back into the 2GR conversion.. Standard flywheel removal  New 1MZ flywheel installed, unfortunately missing locating dowels, so no fitting gearbox ATM  New serpertine belt fitted  Time to cut off the factory cats & attempt making my own exhaust utilising existing manny, then connect up to my Y pipe  Gonna need a slight S bend piping, but think it will work  Its only about 200mm in length required, again a slight S bend required. Its going to be a 2" pipe up from the Y piping expanding to a 2.25" to meet up with the manifold piping  Mockup fitment of how it should sit once pieces are welded in
|
Admin
Administrator
- Total Posts : 2449
- Scores: 550
- Reward points: 6540
- Status: offline
Re: Rev 5 Track time (2GR)
2020/04/02 22:33:09
(permalink)
|
B24
Supporter
- Total Posts : 2405
- Scores: 278
- Reward points: 5936
- Joined: 2011/04/07 19:51:15
- Location: Sydney NSW Australia
- Status: offline
Re: Rev 5 Track time (2GR)
2020/04/04 16:25:45
(permalink)
|
Carmikey
MR2 Deity
- Total Posts : 1969
- Scores: 260
- Reward points: 6437
- Joined: 2012/04/23 15:31:23
- Location: Greenwith 5125, S.A. Australia
- Status: offline
Re: Rev 5 Track time (2GR)
2020/04/24 13:09:48
(permalink)
Not much getting done, as Im wanting to source a gearbox selector bracket... until then, tiding up a few other things which will need to be done. On hold now until gearbox bracket can be sourced.... or maybe I can fabricate something up  Going to try utilise the factor air box or at least some of it..   Carefully cut / dremelled out the section I need, only for the maf sensor    Should be able to make this work, will see once engine is in.....& YES it is a piece of 75mm PVC downpipe :-)  Also got some parts I have been waiting for. Radium 3 way 3.0 bar (43psi) FPR, & 2GR quick connector to AN6  4 mtr fuel hose & a bunch of AN6 fittings
post edited by Carmikey - 2020/07/09 09:01:42
|
Lumix
Supporter
- Total Posts : 767
- Scores: 244
- Reward points: 7031
- Joined: 2011/04/07 19:51:15
- Location: Brisbane QLD Australia
- Status: offline
Re: Rev 5 Track time (2GR)
2020/04/25 11:38:46
(permalink)
Looking forward to seeing it bolted up in the bay.
|
Carmikey
MR2 Deity
- Total Posts : 1969
- Scores: 260
- Reward points: 6437
- Joined: 2012/04/23 15:31:23
- Location: Greenwith 5125, S.A. Australia
- Status: offline
Re: Rev 5 Track time (2GR)
2020/05/08 12:09:13
(permalink)
Time for shaft modification  Machined groove 7mm out to locate new clip & 7mm spacer fabricated  Installed nicely  Mock fitment of subframe, to fab up manifold piping to Y pipe  Close up  Other side needs some bending....
|
B24
Supporter
- Total Posts : 2405
- Scores: 278
- Reward points: 5936
- Joined: 2011/04/07 19:51:15
- Location: Sydney NSW Australia
- Status: offline
Re: Rev 5 Track time (2GR)
2020/05/09 21:34:41
(permalink)
Looking great Mike. I would suggest removing the oil cooler, dismantling it then having it ultrasonic cleaned as it get very dirty in the elements of the cooler. Also recommend removing the camshaft oil galleries in the cam covers have the same treatment as these are two places which are easily missed but can cause a lot of grief.
|
Carmikey
MR2 Deity
- Total Posts : 1969
- Scores: 260
- Reward points: 6437
- Joined: 2012/04/23 15:31:23
- Location: Greenwith 5125, S.A. Australia
- Status: offline
Re: Rev 5 Track time (2GR)
2020/05/10 21:54:24
(permalink)
B24
Looking great Mike. I would suggest removing the oil cooler, dismantling it then having it ultrasonic cleaned as it get very dirty in the elements of the cooler. Also recommend removing the camshaft oil galleries in the cam covers have the same treatment as these are two places which are easily missed but can cause a lot of grief.
Thanks Steve, I'll check them out. Hopefully all good, as the engine has only 60k on it with fully service history. Sent from my SM-J320ZN using Tapatalk
|
Carmikey
MR2 Deity
- Total Posts : 1969
- Scores: 260
- Reward points: 6437
- Joined: 2012/04/23 15:31:23
- Location: Greenwith 5125, S.A. Australia
- Status: offline
Re: Rev 5 Track time (2GR)
2020/06/09 11:46:59
(permalink)
Fit test on manifold, few extra sleeves to get it down to 2" piping to the Y pipe  Ready for a proper weld, my homemade 2GR manifold....cause Im a tight arse & didnt want to spend the $700++USD on the Gouky headers .jpg) Welded, fitted up perfectly... now for the otherside   Otherside tac welded in place ready to be welded (1).jpg) Welded & bolted in place  Happy with where it sits & plenty of clearance  Engine harness installed, engine ready for installation
post edited by Carmikey - 2020/06/09 11:51:49
|
B24
Supporter
- Total Posts : 2405
- Scores: 278
- Reward points: 5936
- Joined: 2011/04/07 19:51:15
- Location: Sydney NSW Australia
- Status: offline
Re: Rev 5 Track time (2GR)
2020/06/09 20:37:23
(permalink)
Looking great Mick. Have you tested the loom yet?
|
Carmikey
MR2 Deity
- Total Posts : 1969
- Scores: 260
- Reward points: 6437
- Joined: 2012/04/23 15:31:23
- Location: Greenwith 5125, S.A. Australia
- Status: offline
Re: Rev 5 Track time (2GR)
2020/06/12 16:46:54
(permalink)
|
rynex
Supporter
- Total Posts : 173
- Scores: 42
- Reward points: 2384
- Joined: 2019/11/22 13:06:47
- Status: offline
Re: Rev 5 Track time (2GR)
2020/06/12 20:46:57
(permalink)
This MF has so many MR2s he can afford to use one as a work bench.
Can't wait to hear what this sounds like :D
|
Carmikey
MR2 Deity
- Total Posts : 1969
- Scores: 260
- Reward points: 6437
- Joined: 2012/04/23 15:31:23
- Location: Greenwith 5125, S.A. Australia
- Status: offline
Re: Rev 5 Track time (2GR)
2020/07/03 14:12:46
(permalink)
Nearly ready to fire up Fuel system complete   ECU wired & mounted  Fill with fluids, finish off dash / gauges etc, then ready...finally!
|
