Hot!Rev 5 Track time (2GR)

Page: < 123 Showing page 3 of 3
Author
Carmikey
MR2 Deity
  • Total Posts : 1840
  • Scores: 180
  • Reward points: 4409
  • Joined: 2012/04/23 15:31:23
  • Location: Greenwith 5125, S.A. Australia
  • Status: offline
Re: Rev 5 Track time (2GR) 2018/12/07 11:54:37 (permalink)
+1 (1)
Small update:

Added some cuts out to assist with cooling




Front Coil overs installed


Installed a pair of 12" pull fans to assist with heat escape



Installed / test fitted border style side skirts, only so it looks simular to my other sw20 track car ;-)


Fitted racing seat on factory seat rail to maintain low seating position & slide function



Next on the list, install rear wing, fit up dash, quick release steering wheel & fabricate accelerator pedal mount to allow 2gr pedal / position.





Attached Image(s)

#31
Admin
Administrator
  • Total Posts : 2192
  • Scores: 427
  • Reward points: 4012
  • Status: offline
Re: Rev 5 Track time (2GR) 2018/12/07 12:21:20 (permalink)
0
Looks good!

Mr Glengineering.
Please visit my other forums -
www.celica.org.au
www.classic-ford.org


My build thread - https://www.mr2australia..m/mr2play/FindPost/47893
#32
B24
Supporter
  • Total Posts : 2295
  • Scores: 237
  • Reward points: 3734
  • Joined: 2011/04/07 19:51:15
  • Location: Sydney NSW Australia
  • Status: online
Re: Rev 5 Track time (2GR) 2018/12/08 08:14:59 (permalink)
0
Great to see you are finding time to get back into it. I like the cooling option.
Nice to see some nice new flash parts the car. You are also fitting a half cage?
Have you spoken with Marc in Canada about ECU upgrades? He seems to have found a little more performance from the ECU.


Wakefield Park Challenge October 2019
Be there

#33

Carmikey
MR2 Deity
  • Total Posts : 1840
  • Scores: 180
  • Reward points: 4409
  • Joined: 2012/04/23 15:31:23
  • Location: Greenwith 5125, S.A. Australia
  • Status: offline
Re: Rev 5 Track time (2GR) 2018/12/16 08:52:32 (permalink)
0
B24
Great to see you are finding time to get back into it. I like the cooling option.
Nice to see some nice new flash parts the car. You are also fitting a half cage?
Have you spoken with Marc in Canada about ECU upgrades? He seems to have found a little more performance from the ECU.
Not planning on fitting a cage, do you happen to have contact details for Marc in Canada regarding ECU upgrades?

Sent from my SM-J320ZN using Tapatalk



#34
B24
Supporter
  • Total Posts : 2295
  • Scores: 237
  • Reward points: 3734
  • Joined: 2011/04/07 19:51:15
  • Location: Sydney NSW Australia
  • Status: online
Re: Rev 5 Track time (2GR) 2018/12/16 15:28:29 (permalink)


Wakefield Park Challenge October 2019
Be there

#35
Carmikey
MR2 Deity
  • Total Posts : 1840
  • Scores: 180
  • Reward points: 4409
  • Joined: 2012/04/23 15:31:23
  • Location: Greenwith 5125, S.A. Australia
  • Status: offline
Re: Rev 5 Track time (2GR) 2019/01/07 09:51:34 (permalink)
0

Boot lid undercoated & pre drilled for wing fitment





Side skirts painted & fitted... lookin little race car ish....


Just about ready for mechanical / engine fitment.


Attached Image(s)

#36
B24
Supporter
  • Total Posts : 2295
  • Scores: 237
  • Reward points: 3734
  • Joined: 2011/04/07 19:51:15
  • Location: Sydney NSW Australia
  • Status: online
Re: Rev 5 Track time (2GR) 2019/01/10 20:51:55 (permalink)
0
WooHoo! So good to see that wing back on a car!

Attached Image(s)



Wakefield Park Challenge October 2019
Be there

#37
Carmikey
MR2 Deity
  • Total Posts : 1840
  • Scores: 180
  • Reward points: 4409
  • Joined: 2012/04/23 15:31:23
  • Location: Greenwith 5125, S.A. Australia
  • Status: offline
Re: Rev 5 Track time (2GR) 2019/01/21 10:06:49 (permalink)
+1 (1)


Inside boot fire wall


Marked out hole to cut from inside engine bay (boot firewall)




Nutserts installed, panel reinstalled to allow me to store boot items when not at the track. Hopefully makes engine access a little easier, when & if required at least a part of it


Tow straps installed

Attached Image(s)

#38
Fast Eddie
MR2 Deity
  • Total Posts : 230
  • Scores: 42
  • Reward points: 889
  • Joined: 2013/02/15 13:39:15
  • Location: Penrith NSW
  • Status: offline
Re: Rev 5 Track time (2GR) 2019/01/22 07:50:28 (permalink)
0
Coming along nicely

       1990-GT-Turbo

#39
Carmikey
MR2 Deity
  • Total Posts : 1840
  • Scores: 180
  • Reward points: 4409
  • Joined: 2012/04/23 15:31:23
  • Location: Greenwith 5125, S.A. Australia
  • Status: offline
Re: Rev 5 Track time (2GR) 2019/01/22 14:57:08 (permalink)
+1 (1)
Next on the to do list:
- Send off 2GR engine harness to be converted to Plug 'n' Play
- Install associated digital dash sensors into the engine
- Mock fit gearbox to engine
- Fabricate exhaust system & mock fit up
- Prep sub frame / installation of rear coilovers
- Prep engine for install into Mr2
- Install, bleed, check for leaks etc & hopefully crank over :-)

Pics to come!
#40
Carmikey
MR2 Deity
  • Total Posts : 1840
  • Scores: 180
  • Reward points: 4409
  • Joined: 2012/04/23 15:31:23
  • Location: Greenwith 5125, S.A. Australia
  • Status: offline
Re: Rev 5 Track time (2GR) 2019/02/11 09:35:57 (permalink)
0

Update:

Brought one of these little units a while back, mock fitted it to the steering column



Harness installed


Preparation to remove the 2GR engine harness, so it can be sent off for re-wiring (plug 'n' play).... fingers Xed


2GR Engine loom, interior & body harness, ready for packaging


Engine mounts installed - Black race series


2GR drivers side engine mount - mock fitment


Attached Image(s)

#41
Carmikey
MR2 Deity
  • Total Posts : 1840
  • Scores: 180
  • Reward points: 4409
  • Joined: 2012/04/23 15:31:23
  • Location: Greenwith 5125, S.A. Australia
  • Status: offline
Re: Rev 5 Track time (2GR) 2019/02/11 09:43:10 (permalink)
+1 (1)

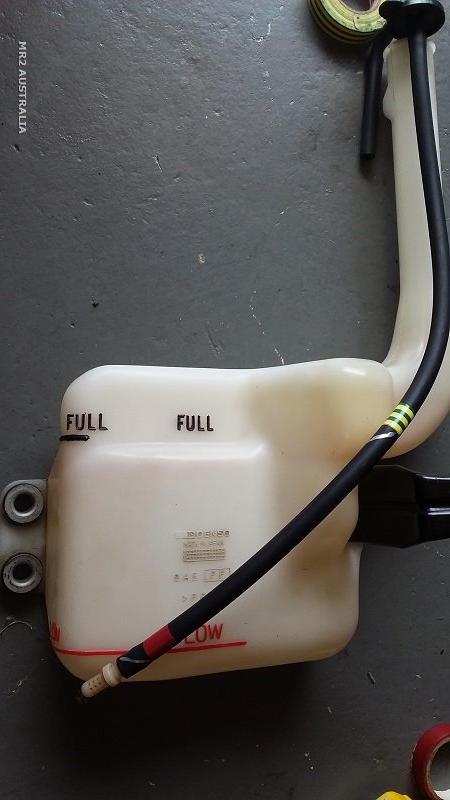

Whilst engine bay empty, waiting its 2GR, thought I would clean up the coolant overflow bottle, as very hard to see when engine is installed. Hopefully this will help / assist with future coolant monitoring.



Marked 'Full / Low' levels


Marked on the hose 'High & Low' levels


Electrical tape added for levels



Re-installed back into car... probably never see it again, but looks great ATM!


post edited by Carmikey - 2019/02/18 15:59:52

Attached Image(s)

#42
Lumix
QLD Moderator
  • Total Posts : 662
  • Scores: 212
  • Reward points: 4413
  • Joined: 2011/04/07 19:51:15
  • Location: Brisbane QLD Australia
  • Status: offline
Re: Rev 5 Track time (2GR) 2019/02/11 13:04:03 (permalink)
0
I love this. Great idea.
#43
Carmikey
MR2 Deity
  • Total Posts : 1840
  • Scores: 180
  • Reward points: 4409
  • Joined: 2012/04/23 15:31:23
  • Location: Greenwith 5125, S.A. Australia
  • Status: offline
Re: Rev 5 Track time (2GR) 2019/02/11 14:19:55 (permalink)
+1 (1)
Ah... forgot to add this.
Made up a 20mm thick accelerator 2gr pedal mount.
Plan to use the original Aurion accelerator pedal. Will see how it goes, I matched it to the original mr2 pedal, height etc, so its positioned exactly the same :-)

Attached Image(s)

#44
