Missing mounting brackets for fog lights

Author
Post
Essentials Only Full Version
petmr2
MR2 Enthusiast
  • Total Posts : 142
  • Scores: 2
  • Reward points: 493
  • Joined: 2015/10/06 12:30:43
  • Status: offline
2015/11/17 13:36:42 (permalink)
0

Missing mounting brackets for fog lights

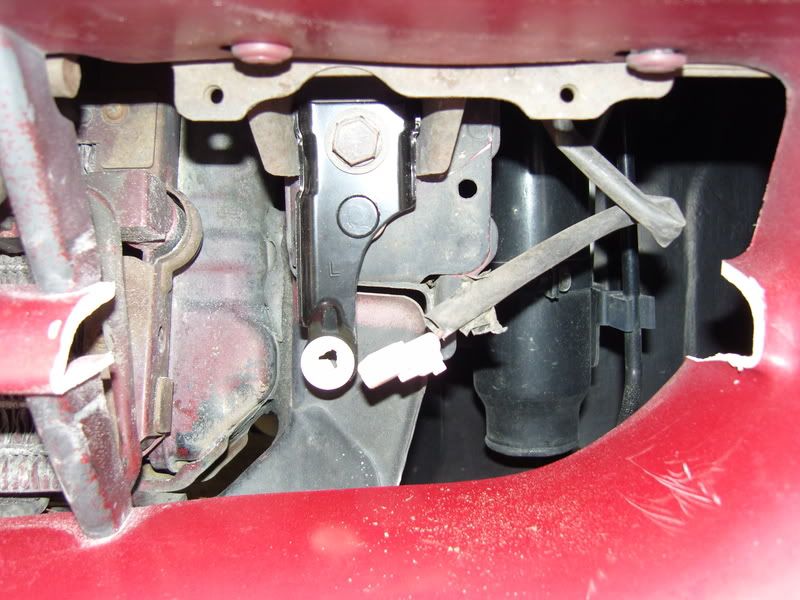

I have 1992 JDM mr2 with an aftermarket front bumper, I noticed that I'm missing the fog light brackets. The the top and lower bracket as you can see in this pic I found on the net http://www.google.com.au/imgres?imgurl=http://i66.photobucket.com/albums/h256/Knight2040/Foglight/SN150177.jpg&imgrefurl=http://www.mr2oc.com/showthread.php?t%3D336281&h=600&w=800&tbnid=xt8NyRdy48k-rM:&docid=ytNxfkFTv7tERM&ei=B49KVsq4H4LImwXU54LwBQ&tbm=isch&ved=0CCIQMygHMAdqFQoTCIrY0eeylskCFQLkpgod1LMAXg

What options do I have? can I simply buy the brackets and bolt it on or is this part of the body?
#1


3 Replies Related Threads
    MR2Jimmy
    MR2 Enthusiast
    • Total Posts : 12
    • Scores: 0
    • Reward points: 156
    • Joined: 2016/07/02 14:52:19
    • Status: offline
    Re: Missing mounting brackets for fog lights 2016/07/09 14:55:31 (permalink)
    0
    Dude,
    I just change the bulb over in my stock MR2 foggies.
    there are no lower bracket, just the top ones.
    there is a knob at the back of the fog to center the position.
    I guess you can just make up some L plates drill two holes out and mount it on?

    #2
    Carmikey
    MR2 Deity
    • Total Posts : 1969
    • Scores: 260
    • Reward points: 6437
    • Joined: 2012/04/23 15:31:23
    • Location: Greenwith 5125, S.A. Australia
    • Status: offline
    Re: 2016/07/09 15:59:32 (permalink)
    0
    Think i have a pair. I'll check for u.

    Sent from my SM-G800Y using Tapatalk

    #3

    sprigs
    MR2 Aficionado
    • Total Posts : 139
    • Scores: 6
    • Reward points: 3096
    • Joined: 2011/04/07 19:51:15
    • Location: melb vic Australia
    • Status: offline
    Re: Missing mounting brackets for fog lights 2016/07/09 16:08:04 (permalink)
    0
    Pretty sure you should have the top ones. They're part of the body regardless if your car came foglights or not.
    Then you need the mounting brackets. You will need to purchase some. You'll need left and right brackets
    part # 52126-17010 and 52125-17010 from Amayama they cost $14 each + shipping or hit the wreckers prob cheaper and quicker or make your own like MR2Jimmy said.


    #4
