Quaife LSD required parts

G'day,

I'm planning on buying a Quaife unit in the next few weeks.
I've tried doing extensive research in regards to what needs swapping over while I'm there but haven't found anything solid.

Has anyone done this conversion and have a comprehensive parts list?
I've heard some speedo gear needs to be swapped over and also stub axles.

Thanks.
#1


13 Replies Related Threads
    dasic1
    Moderator
    • Total Posts : 1323
    • Scores: 83
    • Reward points: 4526
    • Joined: 2011/04/07 19:51:15
    • Location: melbourne vic Australia
    • Status: offline
    Re: Quaife LSD required parts 2015/06/09 13:07:57 (permalink)
    0
    If you have a non lsd e153 you don't need anything
    If you have a factory lsd e153 you need the non lsd Speedo ring gear (can't buy a brand new one) also need the 16 non lsd bolts that hold the final drive on. Don't need the stub axles

    https://www.facebook.com/MuscleMotorTrimmers

    SW20 bits for sale
    http://www.mr2australia.c./mr2play/tm.aspx?m=68510
    #2
    IMR22C
    MR2 Aficionado
    • Total Posts : 678
    • Scores: 13
    • Reward points: 3577
    • Joined: 2011/04/07 19:51:15
    • Location: Newcastle NSW Australia
    • Status: offline
    Re: Quaife LSD required parts 2015/06/10 11:09:32 (permalink)
    0
    Okay, my gearbox has the factory LSD.

    I'd imagine that finding someone to split a gearbox open for the speedo gear would be hard.
    Do you know whether the Camry E153 gear will work? Even any other Toyota?
    #3

    dasic1
    Moderator
    • Total Posts : 1323
    • Scores: 83
    • Reward points: 4526
    • Joined: 2011/04/07 19:51:15
    • Location: melbourne vic Australia
    • Status: offline
    Re: Quaife LSD required parts 2015/06/10 22:16:06 (permalink)
    0
    There is none that I know of. I ended up buying a complete box to get it

    https://www.facebook.com/MuscleMotorTrimmers

    SW20 bits for sale
    http://www.mr2australia.c./mr2play/tm.aspx?m=68510
    #4
    IMR22C
    MR2 Aficionado
    • Total Posts : 678
    • Scores: 13
    • Reward points: 3577
    • Joined: 2011/04/07 19:51:15
    • Location: Newcastle NSW Australia
    • Status: offline
    Re: Quaife LSD required parts 2015/06/11 01:23:36 (permalink)
    0
    dasic1
    There is none that I know of. I ended up buying a complete box to get it


    A complete Camry or MR2 E153?
    #5
    dasic1
    Moderator
    • Total Posts : 1323
    • Scores: 83
    • Reward points: 4526
    • Joined: 2011/04/07 19:51:15
    • Location: melbourne vic Australia
    • Status: offline
    Re: Quaife LSD required parts 2015/06/11 08:29:52 (permalink)
    0
    A non lsd Mr2 e153

    https://www.facebook.com/MuscleMotorTrimmers

    SW20 bits for sale
    http://www.mr2australia.c./mr2play/tm.aspx?m=68510
    #6
    Knightrous
    MR2 Deity
    • Total Posts : 2034
    • Scores: 266
    • Reward points: 4199
    • Joined: 2011/04/07 19:51:15
    • Location: .
    • Status: offline
    Re: Quaife LSD required parts 2015/06/11 11:48:25 (permalink)
    0
    The SPEEDOMETER DRIVE GEAR is part number 33481-12100.
    Currently listed as AU$47.55 from Amayama, plus 7 day shipping from Japan.
    http://www.amayama.com/se...y=36&q=33481-12100

    TrackDub - 89' AW11 3MZFE | SlushDub - 89' AW11 4AGZE | DailyDub - 02' ZZW30 1ZZFE | TurboTaxi - 99' GC8 WRX EJ20
    #7
    IMR22C
    MR2 Aficionado
    • Total Posts : 678
    • Scores: 13
    • Reward points: 3577
    • Joined: 2011/04/07 19:51:15
    • Location: Newcastle NSW Australia
    • Status: offline
    Re: Quaife LSD required parts 2015/06/11 12:11:47 (permalink)
    0
    Awesome work!

    Is there any mounting hardware that I should be grabbing too?

    So the standard MR2 mechanical speedo drive works with this?
    #8
    Knightrous
    MR2 Deity
    • Total Posts : 2034
    • Scores: 266
    • Reward points: 4199
    • Joined: 2011/04/07 19:51:15
    • Location: .
    • Status: offline
    Re: Quaife LSD required parts 2015/06/11 12:42:41 (permalink)
    0
    The speedometer gear just slides onto the diff casing and aligns with two notches.

    TrackDub - 89' AW11 3MZFE | SlushDub - 89' AW11 4AGZE | DailyDub - 02' ZZW30 1ZZFE | TurboTaxi - 99' GC8 WRX EJ20
    #9
    dasic1
    Moderator
    • Total Posts : 1323
    • Scores: 83
    • Reward points: 4526
    • Joined: 2011/04/07 19:51:15
    • Location: melbourne vic Australia
    • Status: offline
    Re: Quaife LSD required parts 2015/06/11 20:40:09 (permalink)
    0
    That part number is for the LSD speedo gear
    A Quaife needs a non LSD speedo gear witch is 33481‑17010

    https://www.facebook.com/MuscleMotorTrimmers

    SW20 bits for sale
    http://www.mr2australia.c./mr2play/tm.aspx?m=68510
    #10
    dasic1
    Moderator
    • Total Posts : 1323
    • Scores: 83
    • Reward points: 4526
    • Joined: 2011/04/07 19:51:15
    • Location: melbourne vic Australia
    • Status: offline
    Re: Quaife LSD required parts 2015/06/11 21:05:41 (permalink)
    +1 (1)

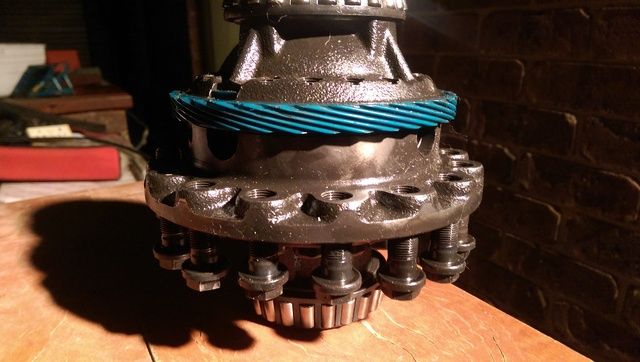

    This is a factory non LSD diff. Speedo drive is the blue bit

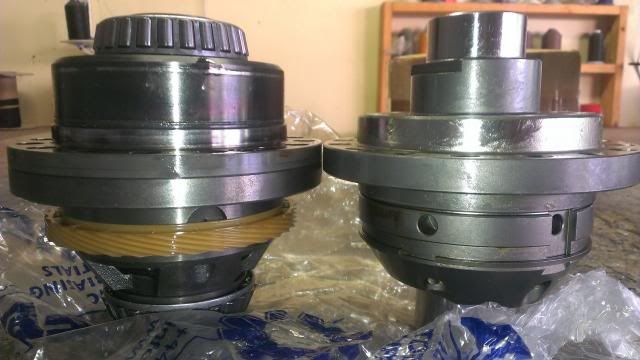

    This is a factory LSD diff on the left (Yellow speedo drive) and the Quaife on the right. The way the speedo drive clips on and the slightly different diameter means the yellow one cant be used



    Factory LSD left Quaife right

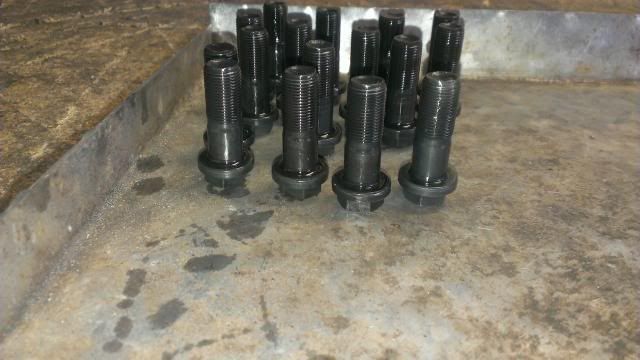

    The LSD bolts. The non threaded part is longer than the non LSD bolts so they cant be interchanged


    https://www.facebook.com/MuscleMotorTrimmers

    SW20 bits for sale
    http://www.mr2australia.c./mr2play/tm.aspx?m=68510
    #11
    IMR22C
    MR2 Aficionado
    • Total Posts : 678
    • Scores: 13
    • Reward points: 3577
    • Joined: 2011/04/07 19:51:15
    • Location: Newcastle NSW Australia
    • Status: offline
    Re: Quaife LSD required parts 2015/06/12 19:33:31 (permalink)
    0
    Do you happen to know the part number for the non-LSD bolts?
    #12
    dasic1
    Moderator
    • Total Posts : 1323
    • Scores: 83
    • Reward points: 4526
    • Joined: 2011/04/07 19:51:15
    • Location: melbourne vic Australia
    • Status: offline
    Re: Quaife LSD required parts 2015/06/12 19:46:18 (permalink)
    0
    90105-12154 for the non LSD bolts. 16 needed

    https://www.facebook.com/MuscleMotorTrimmers

    SW20 bits for sale
    http://www.mr2australia.c./mr2play/tm.aspx?m=68510
    #13
    metal_man007
    MR2 Enthusiast
    • Total Posts : 4
    • Scores: 0
    • Reward points: 674
    • Joined: 2018/11/25 13:09:11
    • Status: offline
    Re: Quaife LSD required parts 2020/09/14 11:44:34 (permalink)
    0
    I obtained both speedo rings. The only difference is the thickness of the inner ring component. I think by removing 0.1mm of material from the face of the inner ring it will fit perfectly. I'll post proof of concept when the car is on the road. I prefer the camry speedo ring because it will be perfectly zeroed for 245/45 R 17 rear tyres.
    #14
