Helpful ReplyHot!Seasalt's 2004 TTR Spyder and 2002 2ZZ Spyder

Page: 12345.. > >> Showing page 1 of 9
Author
seasalt
MR2 Aficionado
  • Total Posts : 112
  • Scores: 13
  • Reward points: 445
  • Joined: 2015/01/11 12:56:14
  • Status: offline
2015/02/03 00:56:45 (permalink)
5 (1)

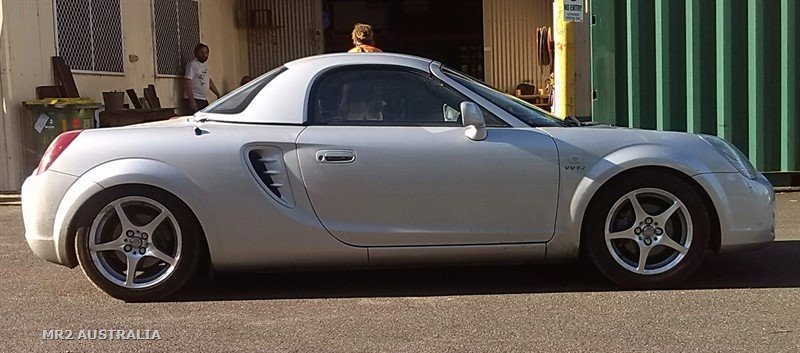

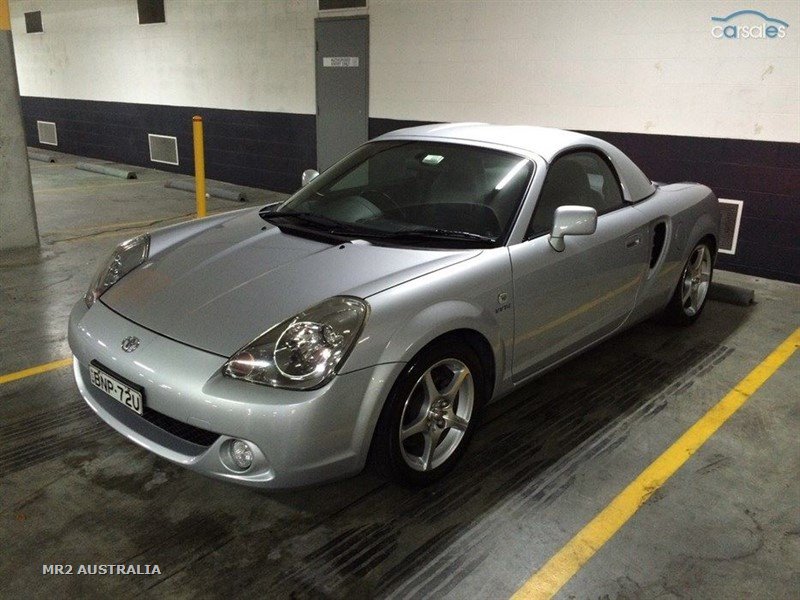

Seasalt's 2004 TTR Spyder and 2002 2ZZ Spyder







Has an MR-S badge on the boot, car sits too low, and clutch began slipping 1500km after purchase. Took it to Terry at Ipswich Road & Track to get it ride height raised, get clutch fixed, and maybe full manual conversion. Turns out the six speed is not that obliging. The computer for our SMT six speed has no manual equivalent in this country. Possibly because of our Australia Design Rules, it seems the six speed's vsc, tsc and abs are unique. Terry is still checking the possibilities.
post edited by seasalt - 2017/09/14 18:06:41
#1
List Solutions Only

126 Replies Related Threads

    AmeR
    MR2 Enthusiast
    • Total Posts : 16
    • Scores: 1
    • Reward points: 2210
    • Joined: 2013/05/19 22:54:52
    • Status: offline
    Re: Seasalt's 2004 Six Speed TTR 2015/02/03 12:54:28 (permalink)
    0
    Looks nice and tidy, especially with the hardtop on!! Hope you can get the ECU issue sorted. Is a manual conversion a big thing for you or would you be happy to retain the SMT if it proves too difficult?

    I've got a 6 speed manual with LSD so never had the VSC and TSC that came on the SMT models. It isn't on the road yet though. I am hoping that the lack such a system doesn't prove an issue :(
    #2
    seasalt
    MR2 Aficionado
    • Total Posts : 112
    • Scores: 13
    • Reward points: 445
    • Joined: 2015/01/11 12:56:14
    • Status: offline
    Re: Seasalt's 2004 Six Speed TTR 2015/02/03 15:44:08 (permalink)
    0
    Australia never had any Gen3 manual Trans models...only SMT sold here.

    Terry tells me:
    "the reason most folk convert is the incessant trouble with the SMT as they age. repair parts are insanely expensive and there are plenty of cars which have had $5-$10k spent on SMT repairs in their life to date, and after continued problems, it is just tossed away."

    I have the Torsen LSD.

    Due to different design rules/government regulations Japanese and American models very different to ours, Brit/Euro models same in 5 speeds, but different for six speeds.

    The Brit six speed didn't have traction or stability control. If I use a UK computer those systems will become disabled. That looks like where I'm going....

    post edited by seasalt - 2015/05/30 15:56:39
    #3

    EssDub
    MR2 Deity
    • Total Posts : 676
    • Scores: 37
    • Reward points: 2529
    • Joined: 2012/02/09 18:06:20
    • Status: offline
    Re: Seasalt's 2004 Six Speed TTR 2015/02/03 16:24:16 (permalink) ☄ Helpfulby Joe 2015/02/03 16:41:16
    +1 (1)
    I'm sorry, what?

    6SMT to MT swap is straightfoward, ECU can be any Manual one (except USDM ones with the silly fuel lines/sensors etc.) as I found out.  TRC and VSC you will have to do without, but its no great loss, in fact, having no TRC made it MUCH easier to get out of turns into traffic without the 'bogging down'.

    I'm using a UK ECU and have had zero issues, apart from a CEL for the post-cat O2 sensor that doesn't exist on ADM cars.  Seems to run nicer too.  The VSC system is tied into the ABS computer (witchcraft) and is more of a nuisance than anything else.

    The only parts that are fundamentally different are the shifter shaft itself and the blockout mechanism for stopping you getting into Reverse in a hurry.

    Otherwise, cookie-cutter stuff! :)
    post edited by EssDub - 2015/02/03 16:33:35

    Currently...
    '03 Spyder 6MT - T28 inc...
    ------------------------------
    Previously...
    '00 FD3S
    '94 SW20 Bathurst R
    '88 AW11
    '92 SW20 G-Limited
    '90 SW20 G
    '91 SW20 Mongrel
    '94 G Limited T-Bar
    '92 GT-S Turbo


    #4
    seasalt
    MR2 Aficionado
    • Total Posts : 112
    • Scores: 13
    • Reward points: 445
    • Joined: 2015/01/11 12:56:14
    • Status: offline
    Re: Seasalt's 2004 Six Speed TTR 2015/02/03 17:00:11 (permalink)
    0
    Terry said he hadn't done a six speed before, but nothing he says disagrees with you. Seems like I'm going to have done what you did.. If you and he talk - maybe I can have it done sooner .....

    Ipswich Road and Track Ph (07) 3201 8866

    Terry is the man....


    #5
    sweeetpete
    NSW Moderator
    • Total Posts : 617
    • Scores: 524
    • Reward points: 3018
    • Joined: 2011/04/07 19:51:15
    • Location: penrith new south wales Australia
    • Status: offline
    Re: Seasalt's 2004 Six Speed TTR 2015/02/03 20:22:57 (permalink)
    0
    Why not leave it SMT at the moment and wait till you do have problems? The later 6 speeds were more reliable than the early SMTs.

    2001 spoida black, remus exhaust C one spoiler Carbing braces.
    01spoida red track car turbo,omp seats,,cusco clutch/lsd C one strut braces.
    89 Aw11Sc.
    #6
    EssDub
    MR2 Deity
    • Total Posts : 676
    • Scores: 37
    • Reward points: 2529
    • Joined: 2012/02/09 18:06:20
    • Status: offline
    Re: Seasalt's 2004 Six Speed TTR 2015/02/03 21:54:30 (permalink)
    0
    If the clutch is slipping, I'd highly recommend replacing it with an Exedy HD, ACT HD or Extreme Stage 1 clutch setup (as we did).  the modest increase in clamp didn't cause any issues with the SMT system and the difference in general feel even after 3000kms of daily use was awesome.  When we pulled the box off to change the fork out (about 5500kms of driving) the clutch disc showed nominal wear, evenly across the surface.  It launched too! :)

    Job can be done without disconnecting the GSA and all, so its like a conventional MT to work on :)

    Currently...
    '03 Spyder 6MT - T28 inc...
    ------------------------------
    Previously...
    '00 FD3S
    '94 SW20 Bathurst R
    '88 AW11
    '92 SW20 G-Limited
    '90 SW20 G
    '91 SW20 Mongrel
    '94 G Limited T-Bar
    '92 GT-S Turbo


    #7
    seasalt
    MR2 Aficionado
    • Total Posts : 112
    • Scores: 13
    • Reward points: 445
    • Joined: 2015/01/11 12:56:14
    • Status: offline
    Re: Seasalt's 2004 Six Speed TTR 2015/02/04 19:34:04 (permalink)
    0
    sweeetpete
    Why not leave it SMT at the moment and wait till you do have problems? The later 6 speeds were more reliable than the early SMTs.



    Already having problems though. ECU had number of SMT fault codes and clutch is gone as a result, so might as well try to nip in the bud while I can.....
    #8
    sweeetpete
    NSW Moderator
    • Total Posts : 617
    • Scores: 524
    • Reward points: 3018
    • Joined: 2011/04/07 19:51:15
    • Location: penrith new south wales Australia
    • Status: offline
    Re: Seasalt's 2004 Six Speed TTR 2015/02/04 19:59:16 (permalink)
    0
    Could worn clutch have given faults to start with?


    2001 spoida black, remus exhaust C one spoiler Carbing braces.
    01spoida red track car turbo,omp seats,,cusco clutch/lsd C one strut braces.
    89 Aw11Sc.
    #9
    EssDub
    MR2 Deity
    • Total Posts : 676
    • Scores: 37
    • Reward points: 2529
    • Joined: 2012/02/09 18:06:20
    • Status: offline
    Re: Seasalt's 2004 Six Speed TTR 2015/02/04 20:05:06 (permalink)
    0
    Out of interest, what are the error codes you are getting? I am documenting SMT failures and would like to investigate :)

    Currently...
    '03 Spyder 6MT - T28 inc...
    ------------------------------
    Previously...
    '00 FD3S
    '94 SW20 Bathurst R
    '88 AW11
    '92 SW20 G-Limited
    '90 SW20 G
    '91 SW20 Mongrel
    '94 G Limited T-Bar
    '92 GT-S Turbo


    #10
    seasalt
    MR2 Aficionado
    • Total Posts : 112
    • Scores: 13
    • Reward points: 445
    • Joined: 2015/01/11 12:56:14
    • Status: offline
    Re: Seasalt's 2004 Six Speed TTR 2015/02/05 01:18:19 (permalink)
    0
    Terry read them, I didn't get the details..

    sweeetpete .. at 71,000 klm? You tell me.. I'm a noob with this car..
    post edited by seasalt - 2015/02/05 02:06:56
    #11
    sweeetpete
    NSW Moderator
    • Total Posts : 617
    • Scores: 524
    • Reward points: 3018
    • Joined: 2011/04/07 19:51:15
    • Location: penrith new south wales Australia
    • Status: offline
    Re: Seasalt's 2004 Six Speed TTR 2015/02/05 06:23:57 (permalink)
    0
    Ok thought KMs would have been higher with age of car. Also low KMs to start getting SMT problems especially in the updated version.
    Get the codes from Terry and ask Cap Weir on Spyderchat , He is the SMT Guru.

    2001 spoida black, remus exhaust C one spoiler Carbing braces.
    01spoida red track car turbo,omp seats,,cusco clutch/lsd C one strut braces.
    89 Aw11Sc.
    #12
    aw11_sc
    MR2 Enthusiast
    • Total Posts : 22
    • Scores: 4
    • Reward points: 2810
    • Joined: 2011/04/07 19:51:15
    • Status: offline
    Re: Seasalt's 2004 Six Speed TTR 2015/02/05 13:43:04 (permalink)
    +1 (1)
    Congrats on the purchase! The exterior looks nice and shiny. Is the interior as nice as the condition of the exterior?

    Sorry to hear about the suspension and gearbox of your new car. I've always wanted a Spyder, but I've always wanted a proper manual one instead of one with the SMT. Once you get the new gear box in you'll have the perfect Spyder. Low KM, late model, with proper manual and nice new suspension. The TTR's had the factory leather trim as well from memory. Enjoy!
    #13
    seasalt
    MR2 Aficionado
    • Total Posts : 112
    • Scores: 13
    • Reward points: 445
    • Joined: 2015/01/11 12:56:14
    • Status: offline
    Re: Seasalt's 2004 Six Speed TTR 2015/02/05 17:32:13 (permalink)
    0
    It's cherry, as they say.. everything but cruise control... :-)
    #14
    EssDub
    MR2 Deity
    • Total Posts : 676
    • Scores: 37
    • Reward points: 2529
    • Joined: 2012/02/09 18:06:20
    • Status: offline
    Re: Seasalt's 2004 Six Speed TTR 2015/02/05 22:01:17 (permalink)
    +1 (1)
    Cruise Control can be retrofitted... I can get OEM kits from the UK ;)

    What sort of suspension have you chosen to replace those old ones?

    Currently...
    '03 Spyder 6MT - T28 inc...
    ------------------------------
    Previously...
    '00 FD3S
    '94 SW20 Bathurst R
    '88 AW11
    '92 SW20 G-Limited
    '90 SW20 G
    '91 SW20 Mongrel
    '94 G Limited T-Bar
    '92 GT-S Turbo


    #15
