Caldina ST215 intake

Hey Guys! I am contemplating using a ST215 (Caldina) intake on my GEN 3 (ST205) head. I 'believe' that the ST215 has a better intake design for air flow than the ST205....Besides the plumbing to the intake and modding the acc cable, are there any other challenges??? Please provide input/advice...THNAKS IN ADVANCE
#1


4 Replies Related Threads
    dasic1
    Moderator
    • Total Posts : 1323
    • Scores: 83
    • Reward points: 5910
    • Joined: 2011/04/07 19:51:15
    • Location: melbourne vic Australia
    • Status: offline
    Re: Caldina ST215 intake 2014/12/18 08:36:55 (permalink)
    +1 (1)
    Mine went straight on but had to grind a little of the manifold to fit the RacerX fuel rail and ID2000. I did not have to modify the accelerator cable just ran it a different way. I used my std gen3 MR2 throttle body but turned it upside down so the blade opens the same way as the Caldina.





    https://www.facebook.com/MuscleMotorTrimmers

    SW20 bits for sale
    http://www.mr2australia.c./mr2play/tm.aspx?m=68510
    #2
    P E T E
    MR2 Aficionado
    • Total Posts : 275
    • Scores: 10
    • Reward points: 4436
    • Joined: 2011/04/07 19:51:15
    • Location: Perth WA Australia
    • Status: offline
    Re: Caldina ST215 intake 2014/12/18 09:49:34 (permalink)
    0
    What about the Coolant filler? Noticed your not running the standard coolant filler neck....would it interfere here?

    > P E T E <
    #3

    turbomr2
    MR2 Enthusiast
    • Total Posts : 60
    • Scores: 0
    • Reward points: 1671
    • Joined: 2012/03/16 03:23:03
    • Location: Malaysia
    • Status: offline
    Re: Caldina ST215 intake 2014/12/18 18:04:53 (permalink)
    0

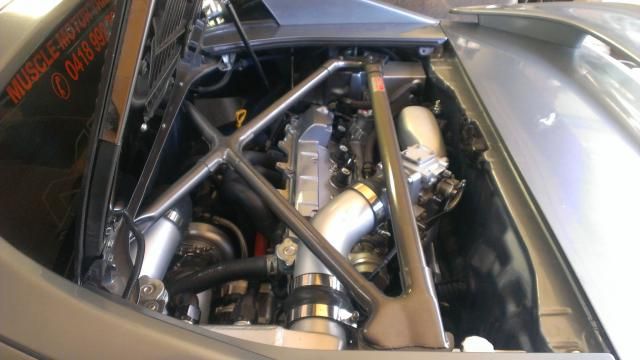

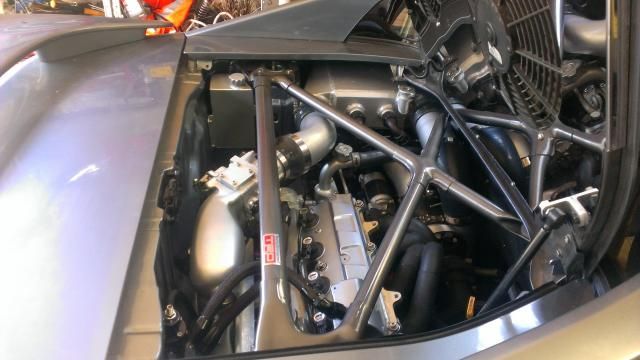

    Thanks dasic1...nice engine bay set-up I have my charge cooler in the boot, so I have to figure out the route for the plumbing...might have to do what you did with the filler cap... I am also switching to top feed fuel rail, so not sure if I will need to grind as well...Why was the original Caldina Throttle Body not used?



    #4
    dasic1
    Moderator
    • Total Posts : 1323
    • Scores: 83
    • Reward points: 5910
    • Joined: 2011/04/07 19:51:15
    • Location: melbourne vic Australia
    • Status: offline
    Re: Caldina ST215 intake 2014/12/18 18:30:05 (permalink)
    0
    The coolant filler really depends on the intercooler location and pipe work. The main reason I changed mine to get rid of some of the mess. I have a different one now to go on that has AN fittings
    I never had a Caldina throttle body so just used the MR2 one
    Maybe with the boot mount intercooler you could look at getting a manifold from RacerX to suit

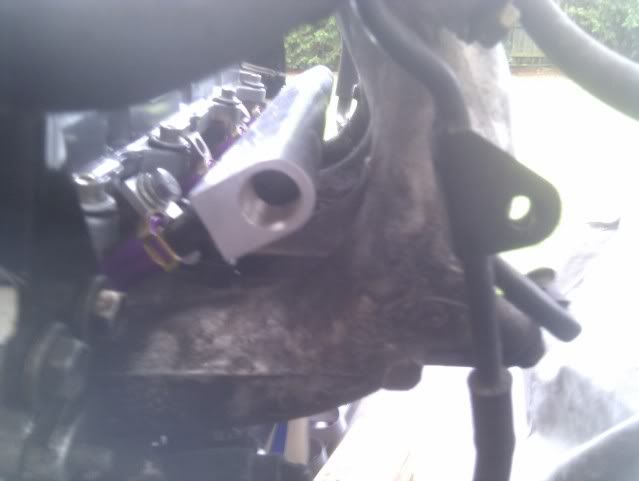

    This is the fuel rail with the MR2 manifold

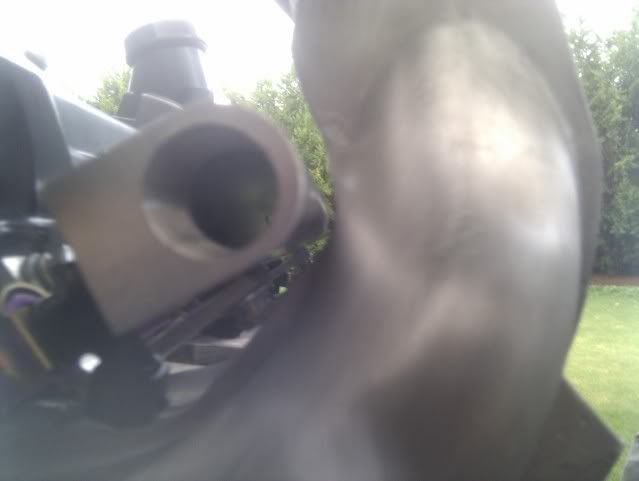

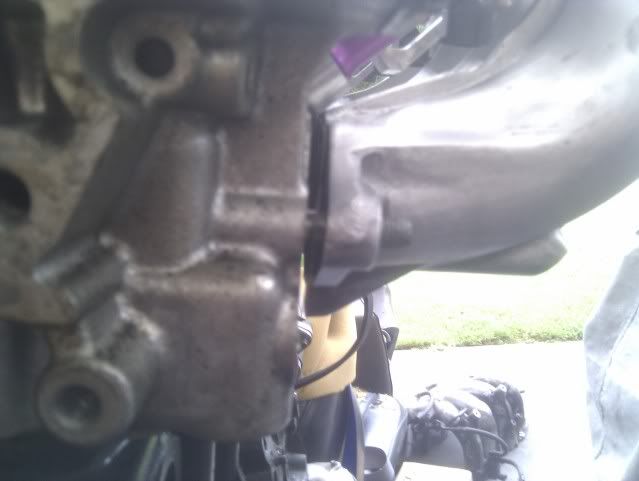

    This was the problem with the Caldina one

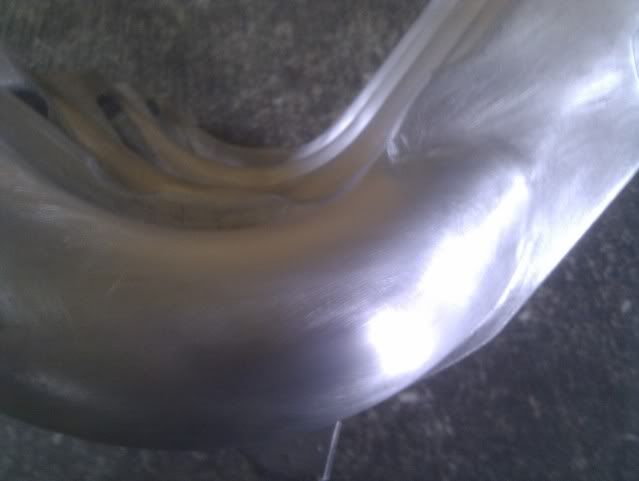

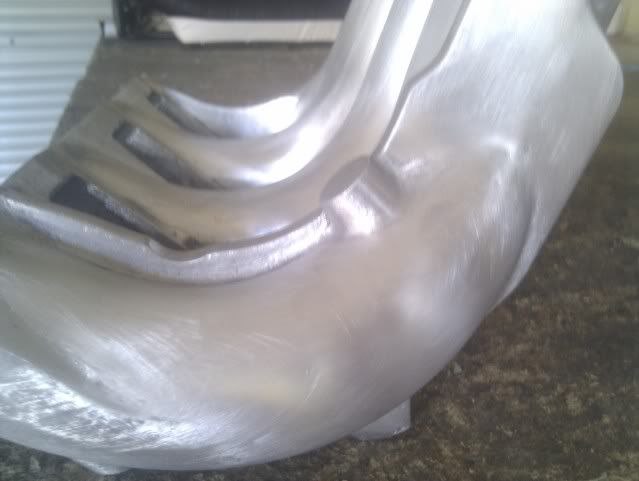

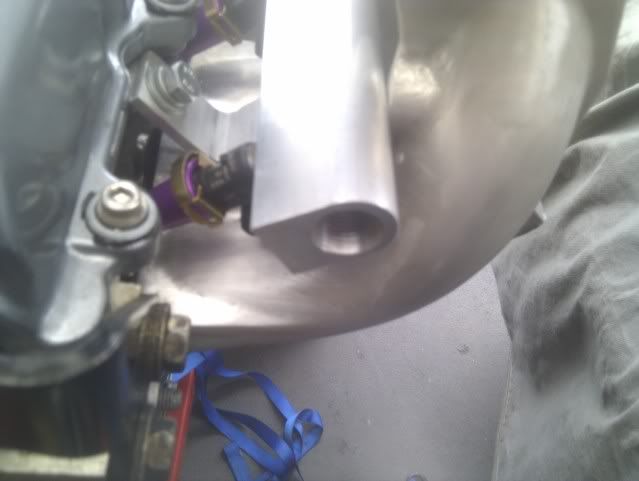

    and this is with the bit ground away
