Bad leds?

Author
sprigs
MR2 Aficionado
  • Total Posts : 139
  • Scores: 6
  • Reward points: 3096
  • Joined: 2011/04/07 19:51:15
  • Location: melb vic Australia
  • Status: offline
2014/11/17 21:24:45 (permalink)
0

Bad leds?

I bought some leds to replace my blown ones for my dash. Got these type off eBay, took a month to arrive. Tried to install them and they won't work, turned them the other way around and still won't work. Any ideas?

They are the same ones off the mr2oc u.k forum
http://www.mr2oc.co.uk/forums/41/155574.html

Bought 20 of them. Think I went through half of them then quit.


#1


7 Replies Related Threads

    banner
    MR2 Aficionado
    • Total Posts : 222
    • Scores: 7
    • Reward points: 4695
    • Joined: 2011/04/07 19:51:15
    • Location: Melbourne Victoria Australia
    • Status: offline
    Re: Bad leds? 2014/11/17 21:28:54 (permalink)
    0
    Try adjusting the wires on the bottom to an angled fit. That worked for me.
    #2
    sprigs
    MR2 Aficionado
    • Total Posts : 139
    • Scores: 6
    • Reward points: 3096
    • Joined: 2011/04/07 19:51:15
    • Location: melb vic Australia
    • Status: offline
    Re: Bad leds? 2014/11/17 22:15:07 (permalink)
    0
    Oh these ones don't have wires, the ones that I got (above pic) have a flat pad/board.
    #3

    Fast Eddie
    MR2 Deity
    • Total Posts : 268
    • Scores: 57
    • Reward points: 4172
    • Joined: 2013/02/15 13:39:15
    • Location: Penrith NSW
    • Status: offline
    Re: Bad leds? 2014/11/18 08:29:38 (permalink)
    0
    Try testing them on the bench with a 12v power supply, note LED"s polarity contuse
    #4
    sprigs
    MR2 Aficionado
    • Total Posts : 139
    • Scores: 6
    • Reward points: 3096
    • Joined: 2011/04/07 19:51:15
    • Location: melb vic Australia
    • Status: offline
    Re: Bad leds? 2014/11/18 22:26:24 (permalink)
    0
    lol rigging up a test bench is too hardcore for me.
    There's possibility that all 20 of them are duds :(

    Just bought another pair off a local distributor, once received will test them out, then I'll know for sure if first ones are duds or not. Just have to wait till then.
    post edited by sprigs - 2014/11/18 23:49:26
    #5
    Carmikey
    MR2 Deity
    • Total Posts : 1969
    • Scores: 260
    • Reward points: 6437
    • Joined: 2012/04/23 15:31:23
    • Location: Greenwith 5125, S.A. Australia
    • Status: offline
    Re: Bad leds? 2014/11/20 09:27:08 (permalink)
    0
    sprigs
    lol rigging up a test bench is too hardcore for me.



    Serious?  and you own an Mr2? Consists of a 12v battery & a couple of wires to conduct the test.
    #6

    sprigs
    MR2 Aficionado
    • Total Posts : 139
    • Scores: 6
    • Reward points: 3096
    • Joined: 2011/04/07 19:51:15
    • Location: melb vic Australia
    • Status: offline
    Re: Bad leds? 2014/11/20 20:32:24 (permalink)
    0
    Oh is that it, google told me to do something more complex.

    But anyway I used a multi meter instead, continuity mode, it would light up my old leds but not these ones.
    It would however light up the individual smd led if I tested it where they were soldered at.

    #7
    sprigs
    MR2 Aficionado
    • Total Posts : 139
    • Scores: 6
    • Reward points: 3096
    • Joined: 2011/04/07 19:51:15
    • Location: melb vic Australia
    • Status: offline
    Re: Bad leds? 2014/11/25 23:32:50 (permalink)
    0

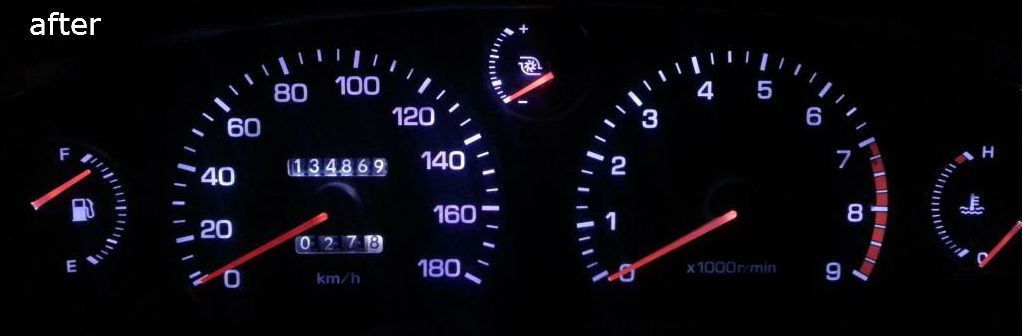

    Got them working. Huge difference.

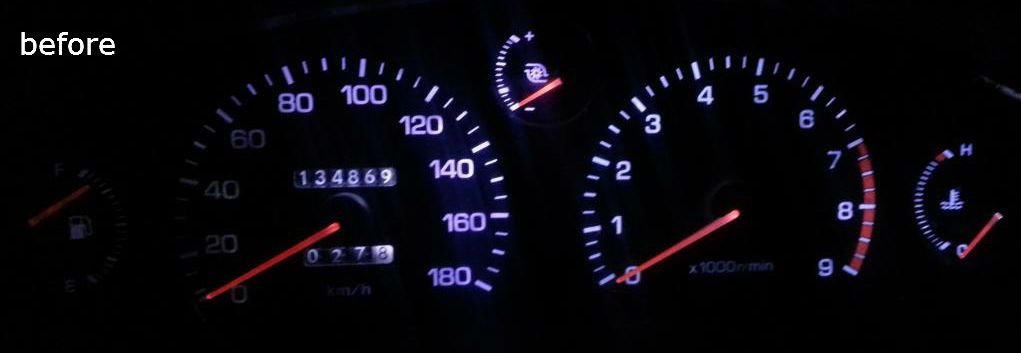

    Before pic : Left the old led bulb in on the fuel gauge side for comparison, looks like it's dead but is in fact lit!



    #8
