JDM_GT
MR2 Aficionado
  • Total Posts : 200
  • Scores: 10
  • Reward points: 3477
  • Joined: 2011/04/07 19:51:15
  • Location: coolum beach,sunny coast QLD Australia
  • Status: offline
Re:new member... 2012/12/02 23:05:17 (permalink)
+1 (1)
little update, changed the oil today and went to adjust my handbrake to find 1 side is snapped and the other is very close to snapping and is corroded, when i first put it up on jack stands with the hand brake on both wheels could spin easy one had a little bit of friction but sweet fa.
#121
JDM_GT
MR2 Aficionado
  • Total Posts : 200
  • Scores: 10
  • Reward points: 3477
  • Joined: 2011/04/07 19:51:15
  • Location: coolum beach,sunny coast QLD Australia
  • Status: offline
Re:new member... 2012/12/11 19:40:32 (permalink)
0
so lame i moved pics all around on photobucket and now all my pics are gone, have to retag all my pics, sorry guys, this is really annoying because i am on about 5 forums
#122
JDM_GT
MR2 Aficionado
  • Total Posts : 200
  • Scores: 10
  • Reward points: 3477
  • Joined: 2011/04/07 19:51:15
  • Location: coolum beach,sunny coast QLD Australia
  • Status: offline
Re:new member... 2013/05/25 12:08:37 (permalink)
0

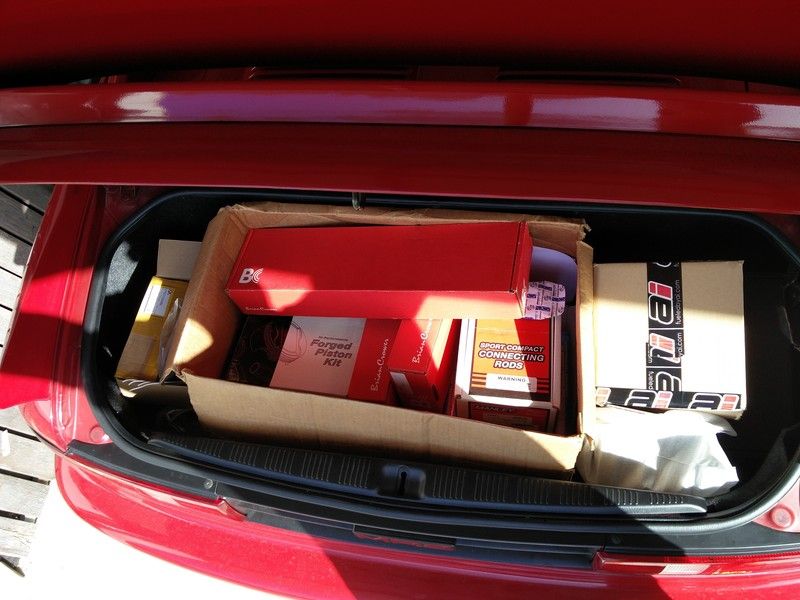

update: just purchased a few bits and pieces for an engine build which i am going to be doing myself along with my brother and a friend of his.
list so far is:

Wiseco Pistons Toyota - Wiseco Pistons Toyota MR2 3SGTE 86.5mm 9.0:1
Manley HBeam Rods Toyot - Manley H-Beam Rods Toyota 3SGTE SW20 MR2
ACL Race Rod Bearings  - ACL Race Rod Bearings STD 3SGTE MR2 Toyota
ACL Race Main Bearings - ACL Race Main Bearings STD 3SGTE MR2 Toyota
ACL Thrust Washer 3SGTE - ACL Thrust Washer 3SGTE MR2 Toyota
Cometic StreetPro Bottom End Gasket Kit 3SGTE TOYOTA MR2
Brian Crower Cams Stage 3 272/272 Toyota MR2 Celica 3SGTE
Brian Crower 3SGTE Valve Spring & Retainer Kit Shim Over Bucket/Shimless
Brian Crower 29.0mm STD - Brian Crower 29.0mm STD Exhaust Valves Toyota 3SGTE
Brian Crower 33.5mm STD - Brian Crower 33.5mm STD Intake Valves Toyota 3SGTE
Cometic StreetPro Top - Cometic StreetPro Top End Gasket Kit 3SGTE TOYOTA MR2
ARP Head Stud Kit Toyo - ARP Head Stud Kit Toyota MR2 Turbo Celica Alltrac 3SGTE
ARP Main Stud Kit Toyo - ARP Main Stud Kit Toyota MR2 Turbo Celica Alltrac 3SGTE.

i going to be getting a few more bits and pieces but this is what i have already paid for.
#123

chase_d
MR2 Deity
  • Total Posts : 1015
  • Scores: 45
  • Reward points: 5468
  • Joined: 2011/04/07 19:51:15
  • Location: Perth WA Australia
  • Status: offline
Re:new member... 2013/05/25 12:36:25 (permalink)
0
How did you go with the headlight kit?

________________
1993 Toyota MR2 GTS
1993 Toyota Supra SZ
________________
#124
JDM_GT
MR2 Aficionado
  • Total Posts : 200
  • Scores: 10
  • Reward points: 3477
  • Joined: 2011/04/07 19:51:15
  • Location: coolum beach,sunny coast QLD Australia
  • Status: offline
Re:new member... 2013/05/25 12:56:48 (permalink)
0

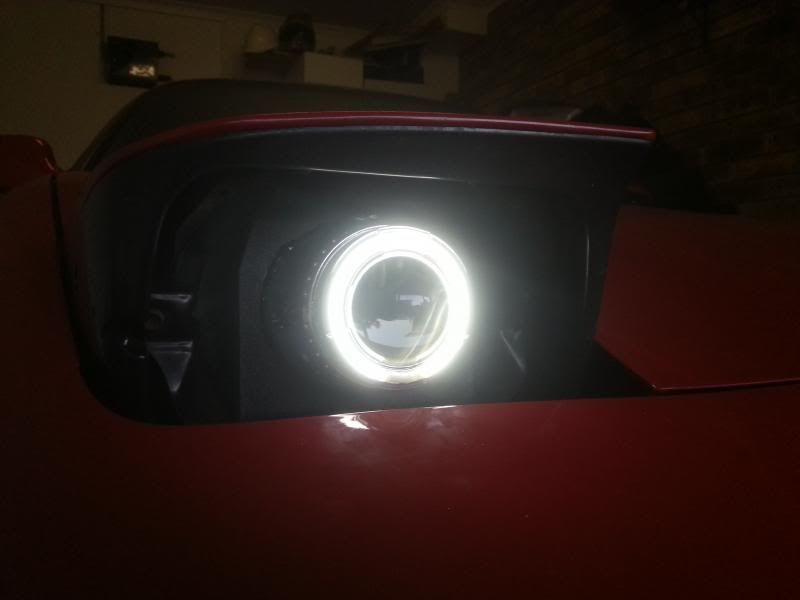

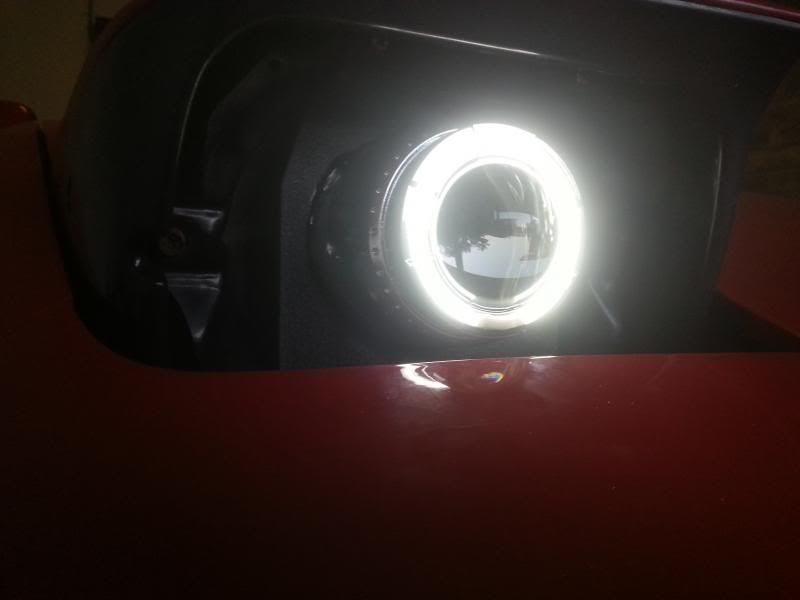

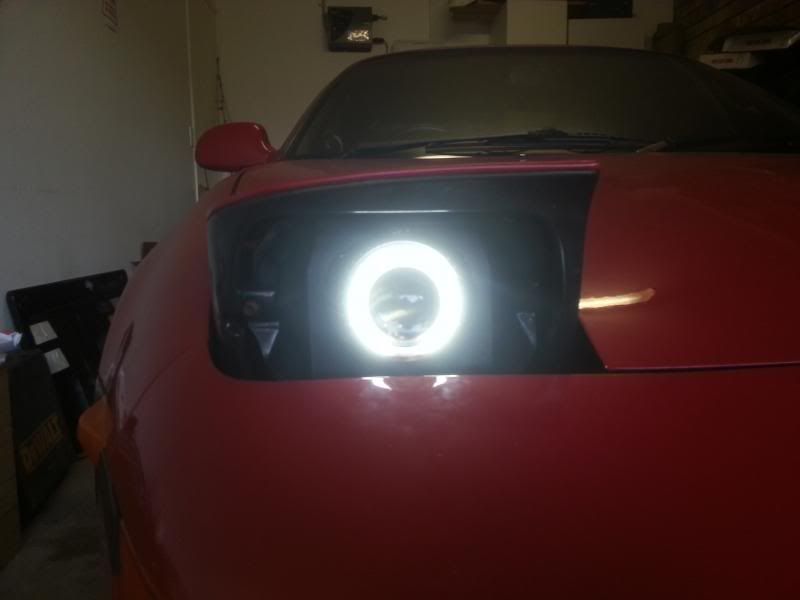

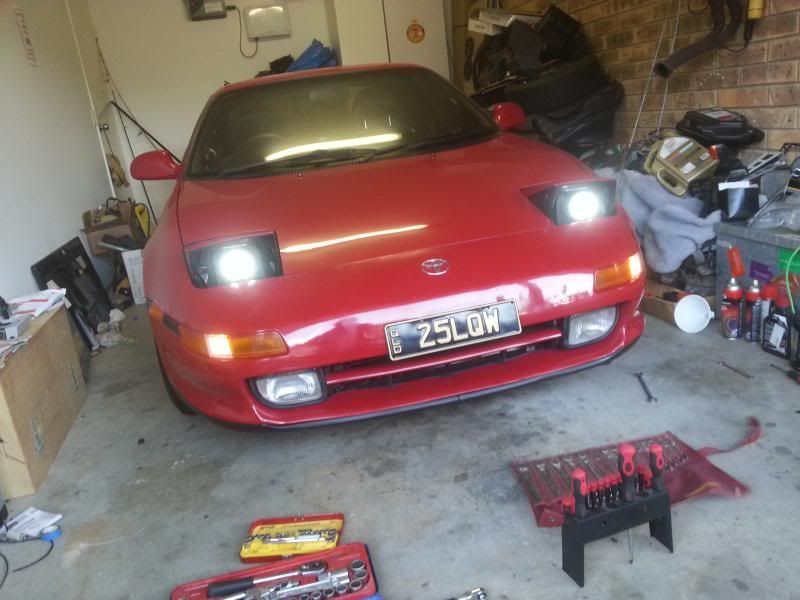

AHH YEAH. totally forgot about that, yeah got it in. looka awesome, the standard ball;ast they come with were total ****, so i got some morimotos from the us, is a bit annoying to set up perfect but once you have it its worth it, ill try get some pics up later.
#125
JDM_GT
MR2 Aficionado
  • Total Posts : 200
  • Scores: 10
  • Reward points: 3477
  • Joined: 2011/04/07 19:51:15
  • Location: coolum beach,sunny coast QLD Australia
  • Status: offline
Re:new member... 2013/05/25 13:54:05 (permalink)
0

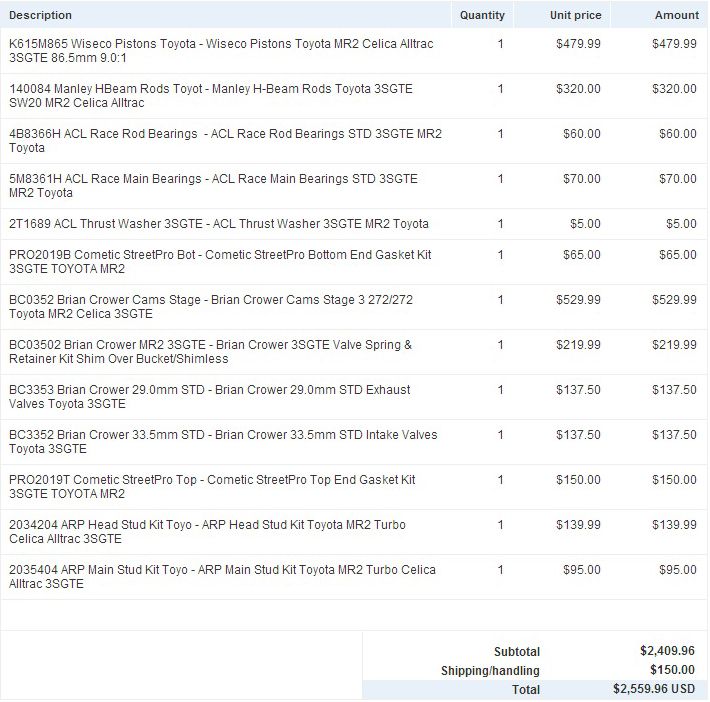

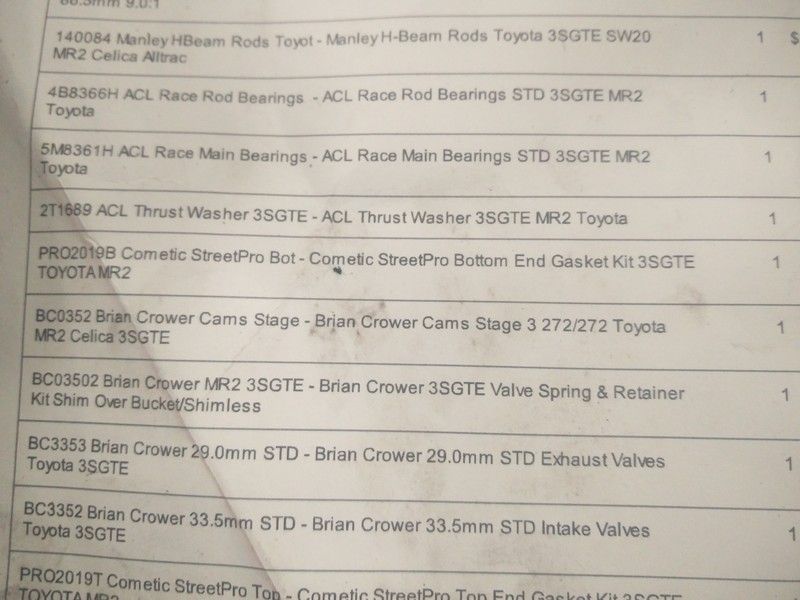

the damage:

i went through real street in the us, had really good prices and were very helpful and also gave a good discount when purchasing multiple items as you could see comparing to their website. only wish the aussie dollar was still above the us.
#126

JDM_GT
MR2 Aficionado
  • Total Posts : 200
  • Scores: 10
  • Reward points: 3477
  • Joined: 2011/04/07 19:51:15
  • Location: coolum beach,sunny coast QLD Australia
  • Status: offline
Re:new member... 2013/05/25 18:34:34 (permalink)
0







#127
5SGTE
MR2 Deity
  • Total Posts : 1909
  • Scores: 163
  • Reward points: 4724
  • Joined: 2011/04/07 19:51:15
  • Location: qld Australia
  • Status: offline
Re:new member... 2013/05/25 19:00:42 (permalink)
0
Real street are the bizz, I got most of my gear through them too.

I also went with the BC cams but had minor issues with them.  I don't want to worry you, more of a heads up as I've not heard that anyone else has had the same issue.  Mine were etched the wrong way, so my inlet camshaft was marked as EX and visa cersa.  I picked this up pretty early on when dialing them in and when swapped they dialed in correctly.  Would be worth checking for yourself.
#128
JDM_GT
MR2 Aficionado
  • Total Posts : 200
  • Scores: 10
  • Reward points: 3477
  • Joined: 2011/04/07 19:51:15
  • Location: coolum beach,sunny coast QLD Australia
  • Status: offline
Re:new member... 2013/05/25 19:03:53 (permalink)
0
yeah thanks for that, so what do i have to look for exactly to know if they are right or not? yeah on their site they say bc is a new name and making big impact on the scene. and who wants to pay $1k for hks cams.
#129
JDM_GT
MR2 Aficionado
  • Total Posts : 200
  • Scores: 10
  • Reward points: 3477
  • Joined: 2011/04/07 19:51:15
  • Location: coolum beach,sunny coast QLD Australia
  • Status: offline
Re:new member... 2013/05/25 19:09:14 (permalink)
+1 (1)
also just purchased a BEE R limiter off these forums, i only want it for setting the revs with the handbrake on for the drags, will be heaps easier to get off the line and get the turbo spooling up, atm i dont hit boost untill 4300ish RPM, that will prob change with all these new items.
plans are to get hks cam gears and timing belt from nengun,
water and oil pump from gorilla industries and hopefully a timing belt kit. im definitely getting these items.

#130
JDM_GT
MR2 Aficionado
  • Total Posts : 200
  • Scores: 10
  • Reward points: 3477
  • Joined: 2011/04/07 19:51:15
  • Location: coolum beach,sunny coast QLD Australia
  • Status: offline
Re:new member... 2013/06/05 16:08:23 (permalink)
+1 (1)
i got the bee R in, and cant get it to work, has anybody installed one before, i am using a plug and play ecu, but i think that should not make a difference. here is the pin out on the ecu http://www.mr2forum.org/forum/index.php?/topic/251-9091-mr2-turbo-ecu-pinout/ it is the same as mine. here is a basic how to. http://www.driftworks.com/forum/faq-new-members-please-read/76001-bee-r-rev-limiter-fitting-guide.html. and here is the pin  out plans http://www.geocities.jp/beer_imai_sp...evlimitter.pdf


any help would be great
#131
JDM_GT
MR2 Aficionado
  • Total Posts : 200
  • Scores: 10
  • Reward points: 3477
  • Joined: 2011/04/07 19:51:15
  • Location: coolum beach,sunny coast QLD Australia
  • Status: offline
Re:new member... 2016/04/25 12:33:54 (permalink)
+2 (2)

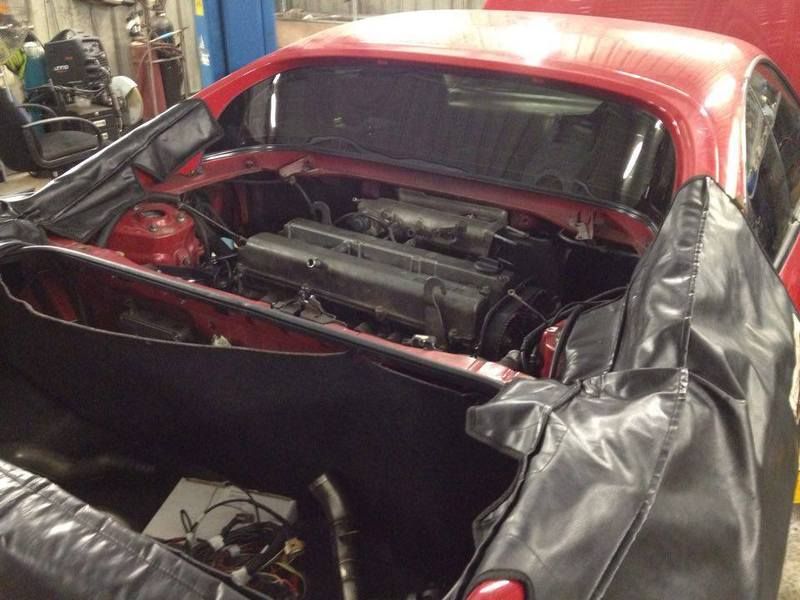

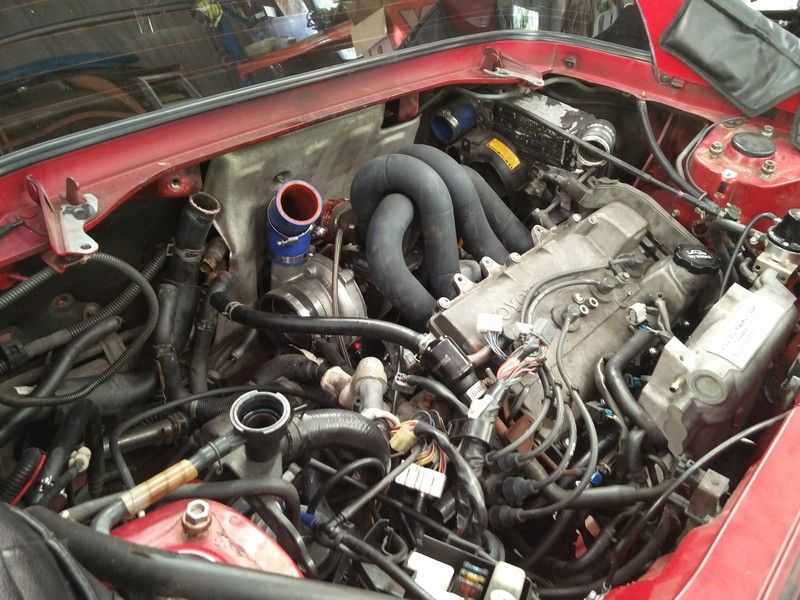

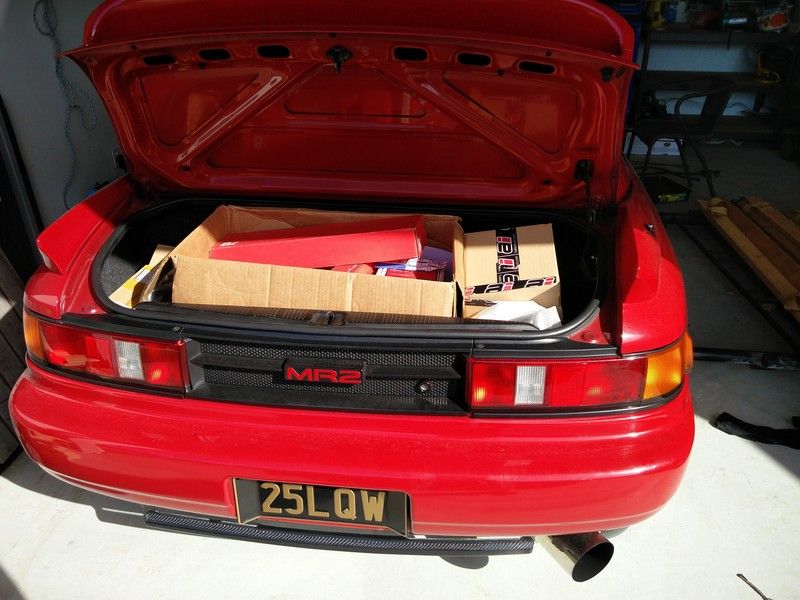

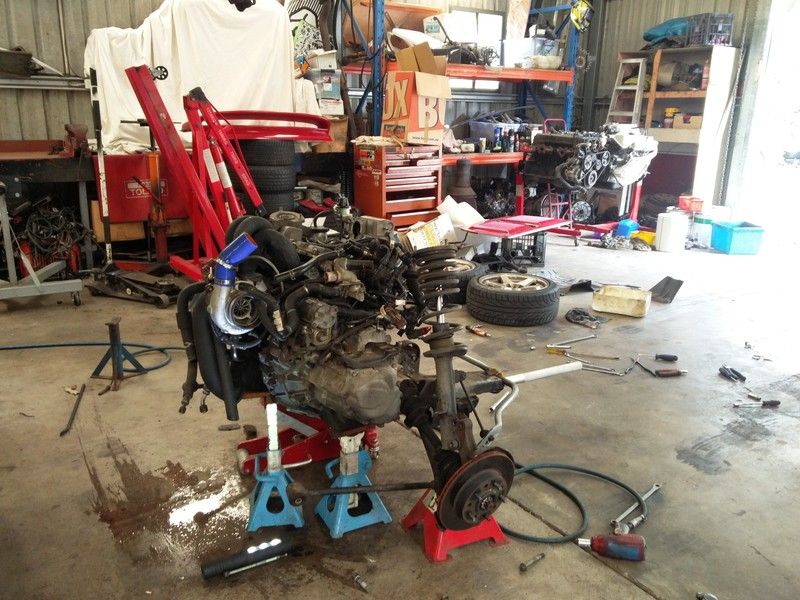

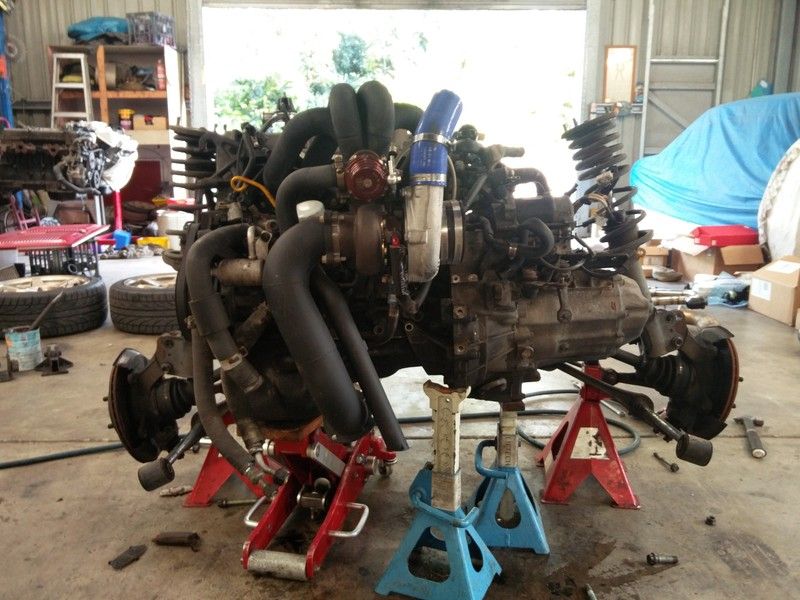

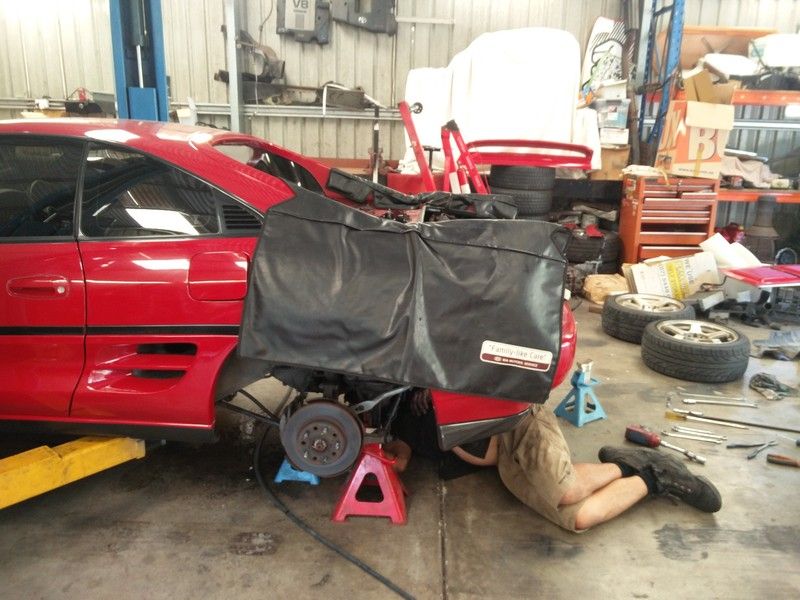

UPDATE TIME. nearly 3 years later and i started the build yesterday, dropped the motor/rear sub frame/ shocks in just over 2 hours. anyway ill let the pics do the talking.

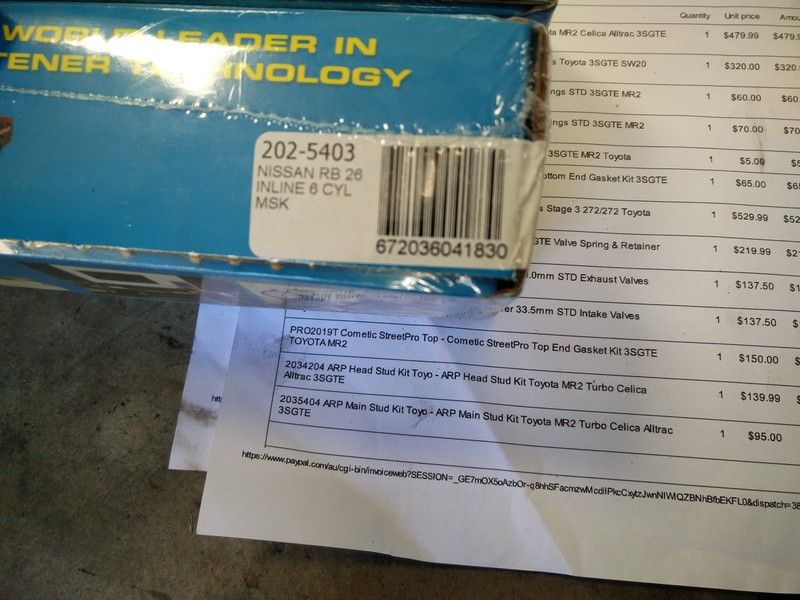

One problem is that when i bought most of my engine parts nearly 3 years ago i did not check everything, they sent me out RB26 main studs, which sucks, but if they wont replace them no biggie cause theRB26 cost nearly 3x more.

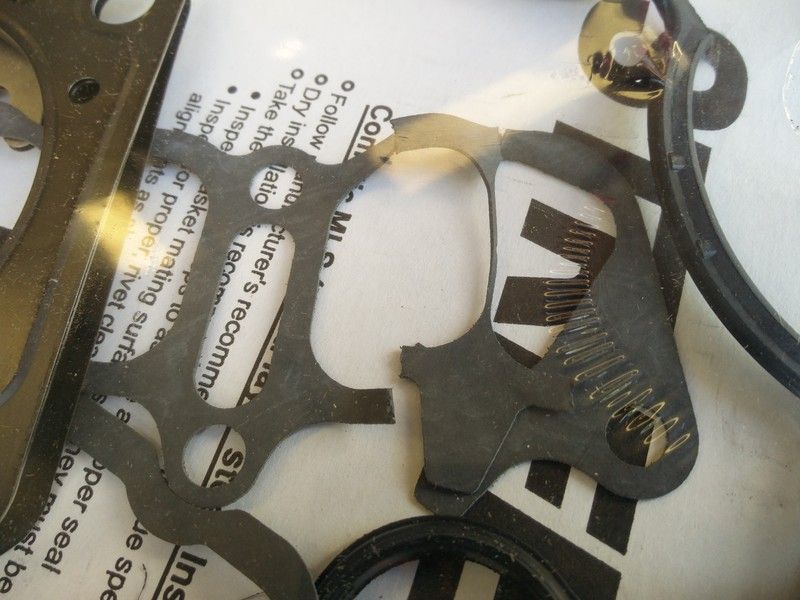

Another is the cheap thin paper gaskets the "cometic" kit comes with. they look terrible, might have to buy some OEM ones for a few things.

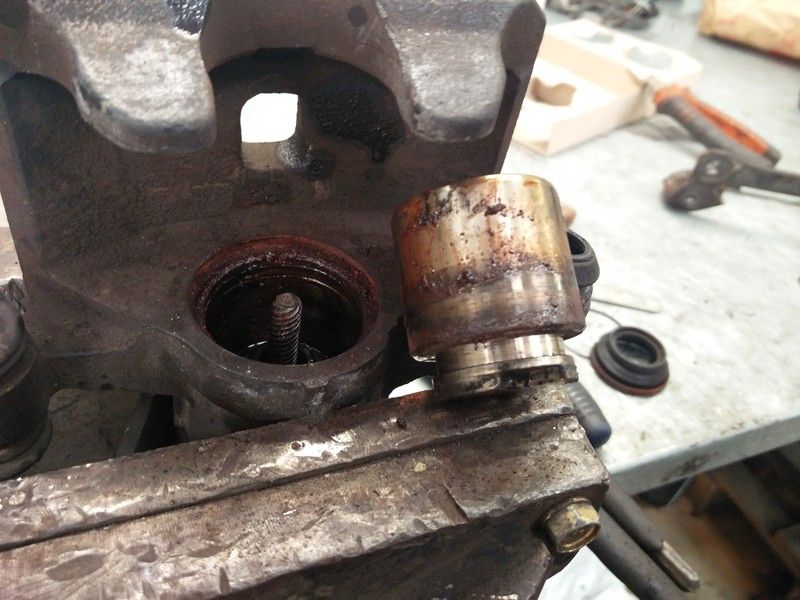

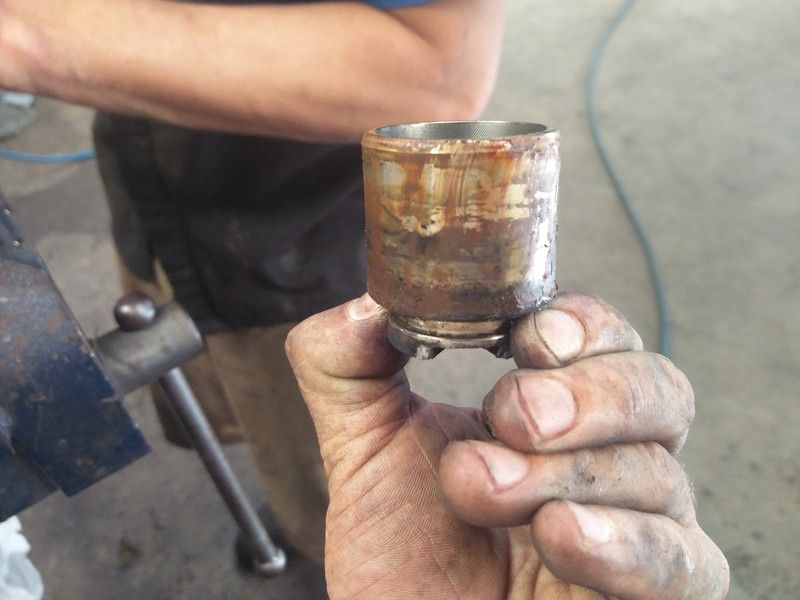

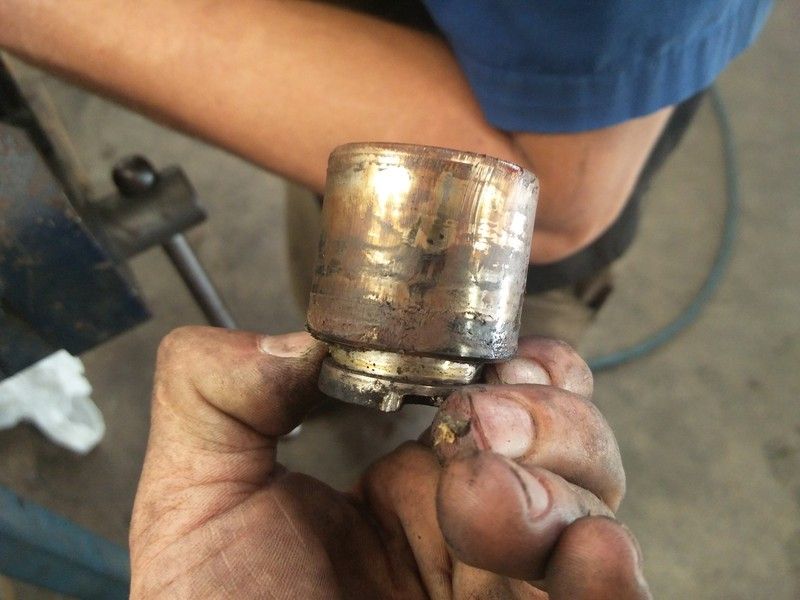

Had a look at my rear brakes because my rear left wheel was heating up when driving, the piston looked nasty, all clogged up with rusty old grease mess, pulled both rear calipers apart and gave them a clean/re grease

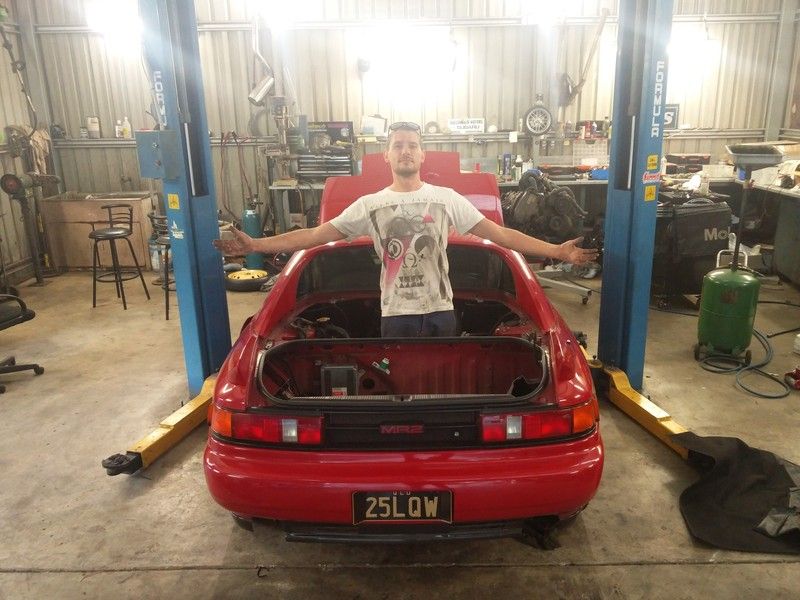

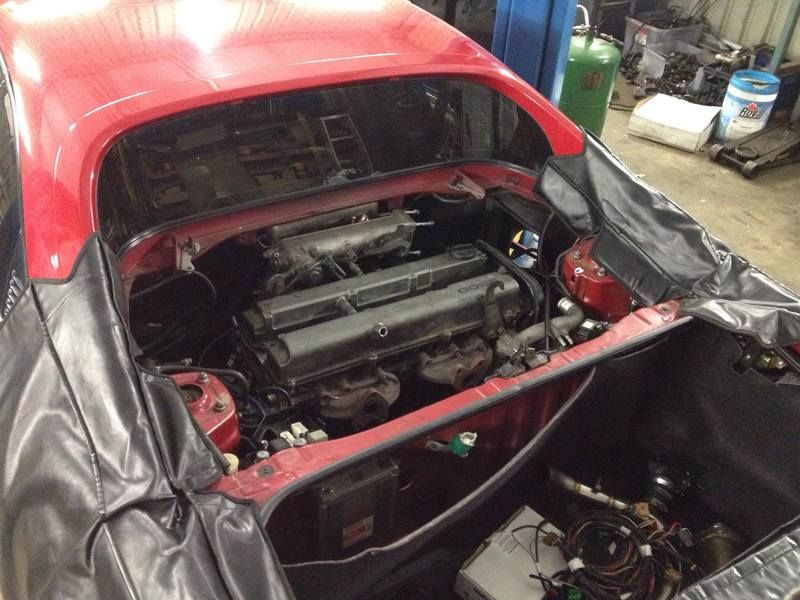

The good old standing in engine bay pic

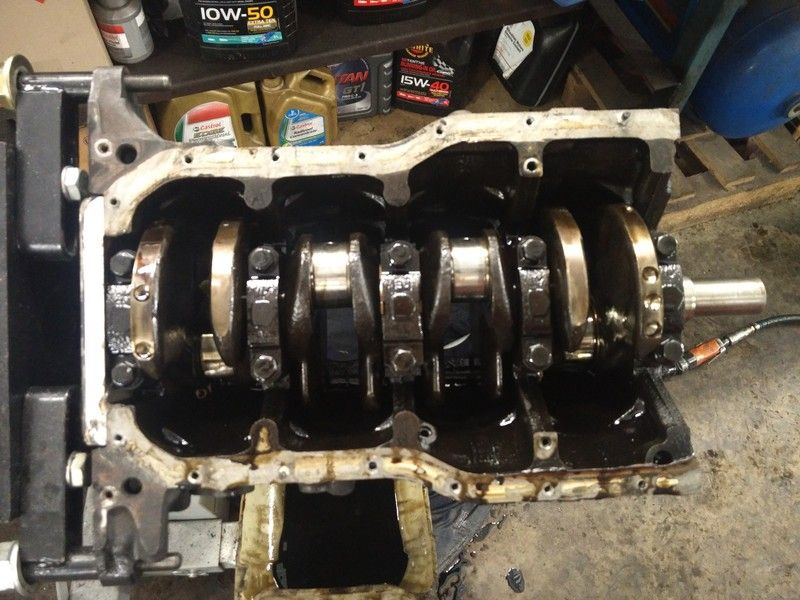

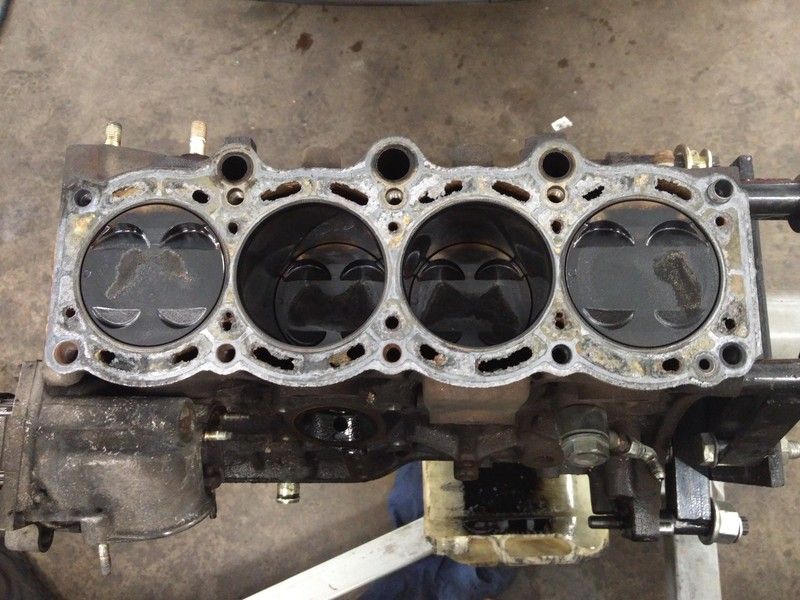

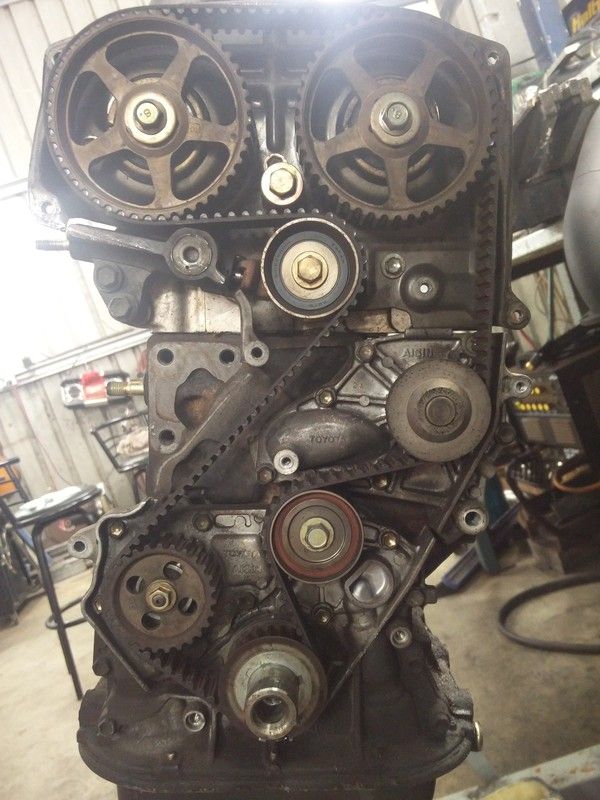

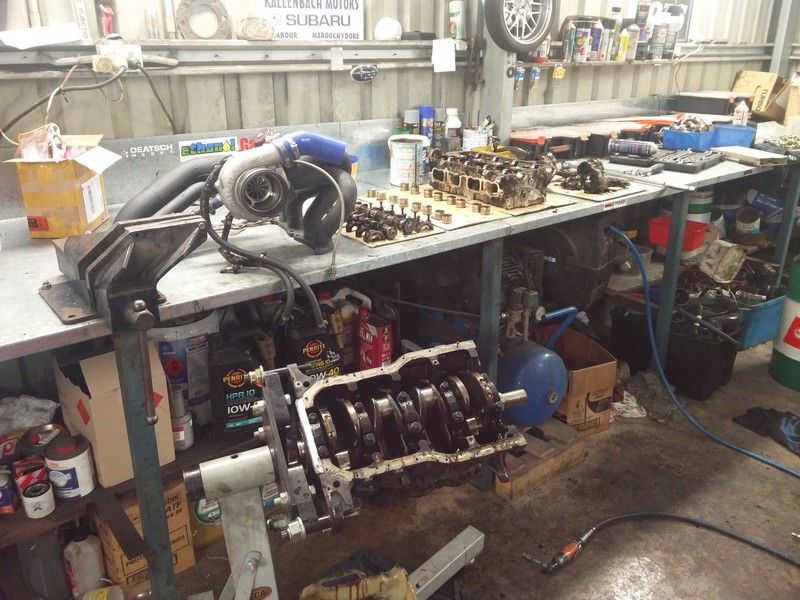

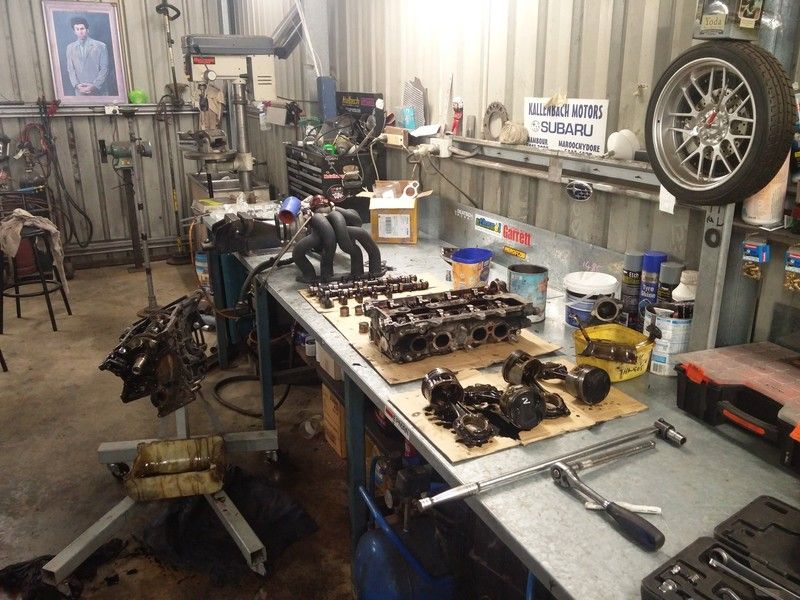

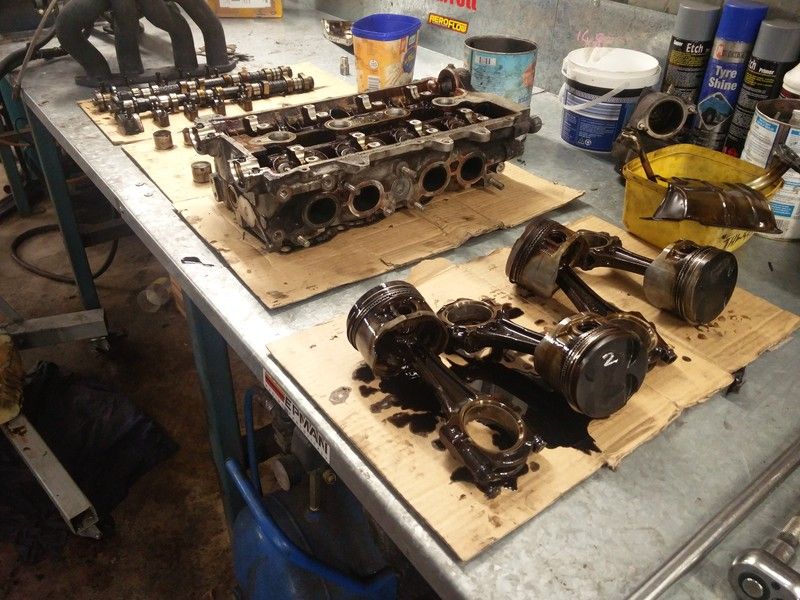

motor looked ok a bit of carbon here and there, the water galleries were clogged up a bit, prob due to lack of service, (was holding out to do this build, turns out took a bit longer than planned) hehe

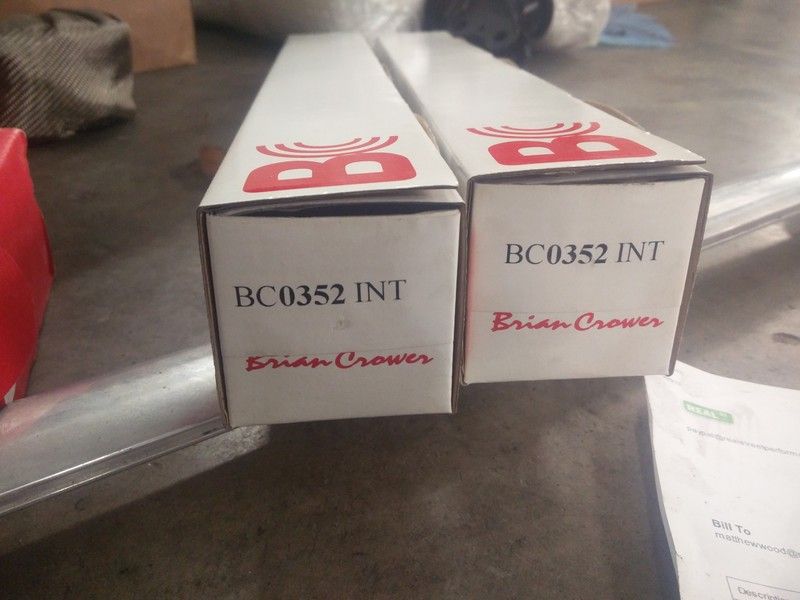

Went to check the cams and found that i had 2 intake cams in the box, at first i was pissed but after someone told me that the BC cams are like that and doing my own research i cant find anything that says its not, if anyone who has installed BC cams before could let me know cheers.

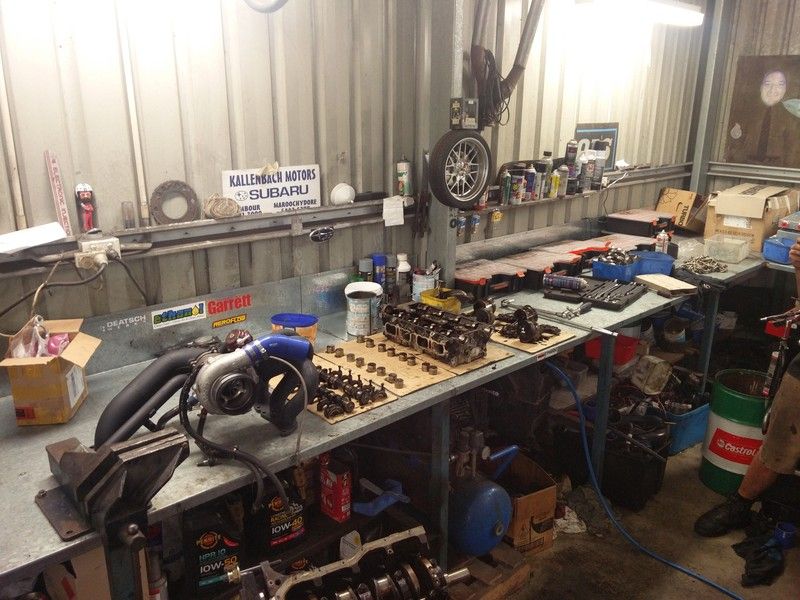

All this took a day, very impressed with my brother who is helping me out, anyone who watched MCM might reconise the garage. we also had a 1JZ there so we popped it in for some pics, TROLL the internet for a day, it went nuts on MR2OC. haha we tried to fit a 1UZ but couldn't get it in there.






Next is waiting to sort out main stud issue then off to machine shop.
post edited by JDM_GT - 2016/04/25 12:41:53
#132
5SGTE
MR2 Deity
  • Total Posts : 1909
  • Scores: 163
  • Reward points: 4724
  • Joined: 2011/04/07 19:51:15
  • Location: qld Australia
  • Status: offline
Re:new member... 2016/04/25 18:42:38 (permalink)
+1 (1)
Was going to say a recognised this shed, Alan's from memory?
#133
Rob
MR2 Master
  • Total Posts : 265
  • Scores: 30
  • Reward points: 3073
  • Joined: 2011/04/07 19:51:15
  • Location: Brisbane Queensland Australia
  • Status: offline
Re:new member... 2016/04/26 08:45:55 (permalink)
0
lol I think there is still a lot of yanks waiting to see your build thread on the 1j

its all about Carbon Fibre
91 MR2 GT Hard top
83 Porsche 911 SC Convertible

MR2 OWNERS CLUB QLD - RUN COORDINATOR
#134
JDM_GT
MR2 Aficionado
  • Total Posts : 200
  • Scores: 10
  • Reward points: 3477
  • Joined: 2011/04/07 19:51:15
  • Location: coolum beach,sunny coast QLD Australia
  • Status: offline
Re:new member... 2016/04/26 09:10:27 (permalink)
+1 (1)
Turbosmart shared it on their fb. It's so funny. I mean it's not impossible but prob going cost like 50k to just get it to fit with custom gearbox and everything that goes with it. Cause there is a pic of the motor sitting in Bay some people actually believe it. My bro posted it on a public fb page so it's getting around now. Lol
