RE: SW20 track car back on track
2011/01/09 13:53:02
(permalink)

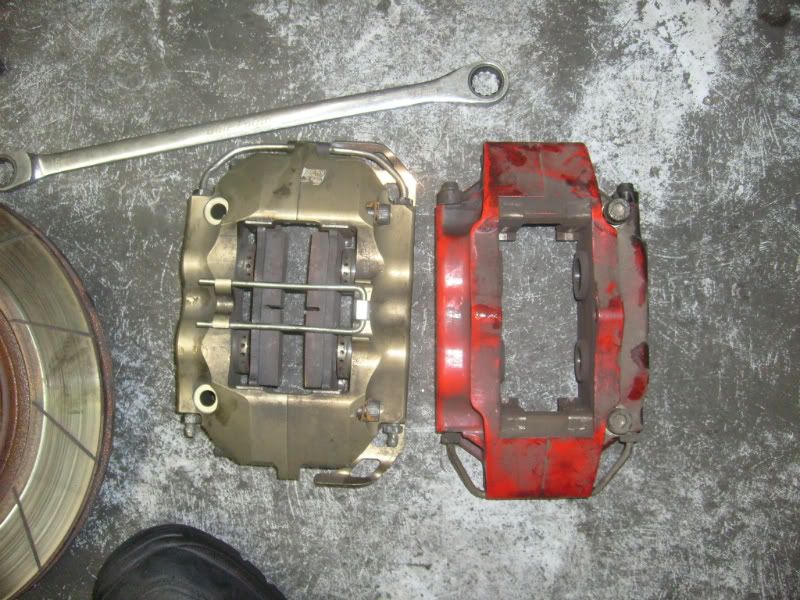

The titanium pistons are usually pretty easy to spot, as the whole piston isn't made from titanium, usually it will just be the tips of the pistons that come into contact with the pads. You can tell pretty easily, as shown on the brembo caliper on the left, as opposed to the AP caliper on the right:  If the caliper pistons have the titanium inserts in them, the backing shims for the pads won't be necissary.
|
B24
Supporter
- Total Posts : 2405
- Scores: 278
- Reward points: 5936
- Joined: 2011/04/07 19:51:15
- Location: Sydney NSW Australia
- Status: offline
RE: SW20 track car back on track
2011/01/09 15:35:39
(permalink)
Thanks mate, I dont have the inserts in my set up.
|
B24
Supporter
- Total Posts : 2405
- Scores: 278
- Reward points: 5936
- Joined: 2011/04/07 19:51:15
- Location: Sydney NSW Australia
- Status: offline
RE: SW20 track car back on track
2011/01/10 19:45:25
(permalink)
Finally picked up the front tie rod links to all but remove bump steer on the MR2. The goal was to have the links follow the line of the lower control arm but looks like I have made these 5mm too short to suit the 32mm RCA's. I can move to a smaller RCA to correct it but first try it out to see what happens. This pic is the comparison between the first upgrade and my new high tensile custom units. These are a harder steel than the orginal units.  This is the before and after shot of installation. The changes are obvious. Was pretty excited when I picked these up then installed this afternoon.
|
B24
Supporter
- Total Posts : 2405
- Scores: 278
- Reward points: 5936
- Joined: 2011/04/07 19:51:15
- Location: Sydney NSW Australia
- Status: offline
RE: SW20 track car back on track
2011/01/10 19:48:38
(permalink)
Also received the new inlet flange for the plenum. Now this was quite a little gift too! More information on the build is also found in the Engines / Exhausts / Gearboxes / Differentials thread.
|
Bionikal
MR2 Scholar
- Total Posts : 1003
- Scores: -171
- Reward points: 2607
- Joined: 2011/04/07 19:51:15
- Status: offline
RE: SW20 track car back on track
2011/01/10 20:03:15
(permalink)
|
B24
Supporter
- Total Posts : 2405
- Scores: 278
- Reward points: 5936
- Joined: 2011/04/07 19:51:15
- Location: Sydney NSW Australia
- Status: offline
RE: SW20 track car back on track
2011/01/10 20:47:26
(permalink)
|
B24
Supporter
- Total Posts : 2405
- Scores: 278
- Reward points: 5936
- Joined: 2011/04/07 19:51:15
- Location: Sydney NSW Australia
- Status: offline
RE: SW20 track car back on track
2011/01/10 20:48:16
(permalink)
I moved the pics to another album.
|
2hardtop
MR2 Aficionado
- Total Posts : 547
- Scores: 4
- Reward points: 0
- Joined: 2011/04/07 19:51:15
- Location: NSW Australia
- Status: offline
RE: SW20 track car back on track
2011/01/10 22:25:17
(permalink)
wow! that is a massive drop.
|
surok
MR2 Scholar
- Total Posts : 2252
- Scores: -31
- Reward points: 4416
- Joined: 2011/04/07 19:51:15
- Location: Albania
- Status: offline
RE: SW20 track car back on track
2011/01/10 23:01:11
(permalink)
it should be really nice to drive now with that length, maybe the car can go lower now too? it is a bit of a truck
|
B24
Supporter
- Total Posts : 2405
- Scores: 278
- Reward points: 5936
- Joined: 2011/04/07 19:51:15
- Location: Sydney NSW Australia
- Status: offline
RE: SW20 track car back on track
2011/01/11 20:34:14
(permalink)
quote:
Originally posted by 2hardtop
wow! that is a massive drop.
I know! Even recieved a phone call about it. What is going on there? If you look around at Jim Richards' muscle car master Ford, the same can be found. Also Rick Shaw's nurburgring 24hr car, Steve Anslow RX7 FD V8, Bosenjacks record holding RX7 FD to name a few. It will not break or bend due to the materials and my bump steer will be at a very comfortable level. If anyone wants a set, just drop a line. Received the braided clutch line, slave cylinder and AP clutch shim plate today so when I return from Canberra, will refit the clutch and gearbox. Wont be running at EC this week but will get out for a run in a few weeks.
|
B24
Supporter
- Total Posts : 2405
- Scores: 278
- Reward points: 5936
- Joined: 2011/04/07 19:51:15
- Location: Sydney NSW Australia
- Status: offline
RE: SW20 track car back on track
2011/01/11 20:35:06
(permalink)
quote:
Originally posted by surok
it should be really nice to drive now with that length, maybe the car can go lower now too? it is a bit of a truck
I know, but I am trying to improve...
|
B24
Supporter
- Total Posts : 2405
- Scores: 278
- Reward points: 5936
- Joined: 2011/04/07 19:51:15
- Location: Sydney NSW Australia
- Status: offline
RE: SW20 track car back on track
2011/01/15 11:27:37
(permalink)
quote:
Originally posted by Bud
quote:
Originally posted by B24
quote:
Originally posted by 2hardtop
wow! that is a massive drop.
I know! Even recieved a phone call about it. What is going on there?
If you look around at Jim Richards' muscle car master Ford, the same can be found. Also Rick Shaw's nurburgring 24hr car, Steve Anslow RX7 FD V8, Bosenjacks record holding RX7 FD to name a few.
It will not break or bend due to the materials and my bump steer will be at a very comfortable level. If anyone wants a set, just drop a line.
Received the braided clutch line, slave cylinder and AP clutch shim plate today so when I return from Canberra, will refit the clutch and gearbox. Wont be running at EC this week but will get out for a run in a few weeks.
Hi Steve,
I'm keen on a pair. What kind of $$ are we talking about? Just give me a range at this stage if you haven't worked it out yet.
Thanks
If you are looking at the drop links, ball joint and sleeve, it will cost about $350 Thats CroMo drop link and 6061 sleeve If you need RCA's I can sort these as well. They are about $350. Cheers
|
B24
Supporter
- Total Posts : 2405
- Scores: 278
- Reward points: 5936
- Joined: 2011/04/07 19:51:15
- Location: Sydney NSW Australia
- Status: offline
RE: SW20 track car back on track
2011/01/15 11:28:47
(permalink)
quote:
Originally posted by surok
bud, there will be a whole line of track tested team B24 RACING suspension components soon :)
Richard my friend, you are just full of secrets! These wont be ready just yet but not too far away.
|
surok
MR2 Scholar
- Total Posts : 2252
- Scores: -31
- Reward points: 4416
- Joined: 2011/04/07 19:51:15
- Location: Albania
- Status: offline
RE: SW20 track car back on track
2011/01/15 11:35:29
(permalink)
i deleted mine, you delete yours :p
|
IMR22C
MR2 Aficionado
- Total Posts : 673
- Scores: 13
- Reward points: 3577
- Joined: 2011/04/07 19:51:15
- Location: Newcastle NSW Australia
- Status: offline
RE: SW20 track car back on track
2011/01/15 16:48:39
(permalink)
quote:
Originally posted by surok
i deleted mine, you delete yours :p
Too late Richard... Better work quick guys, people are expecting :P
|
