2gr-fe info
hey mods, hoping that this could be made a sticky, mainly to help people for future references,
ill start by contributing this link

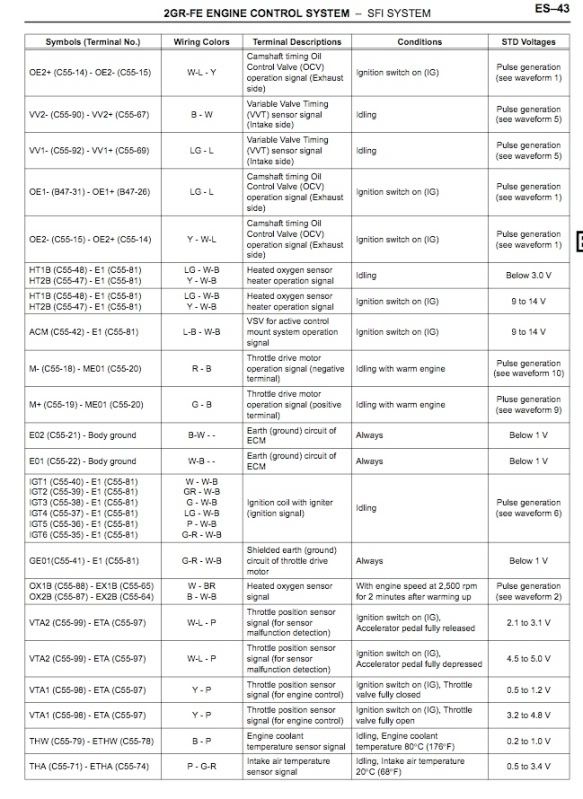

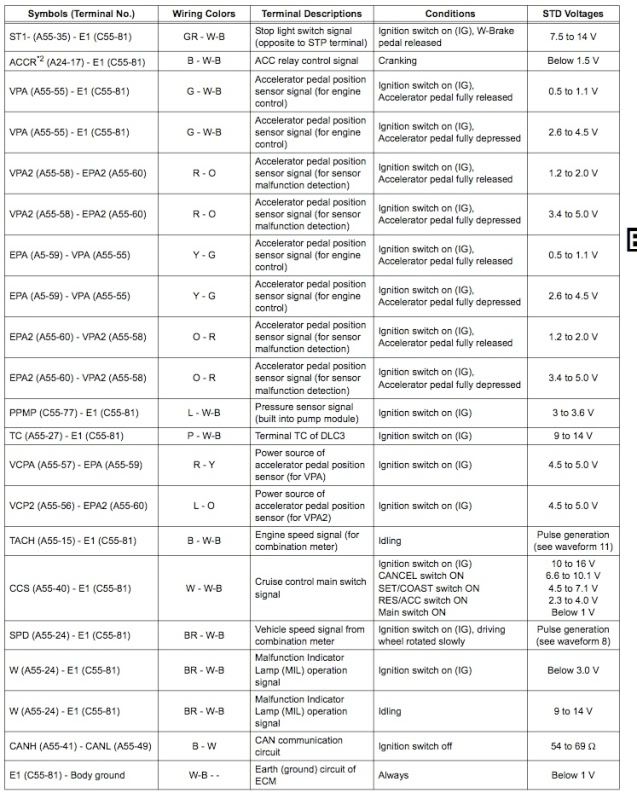

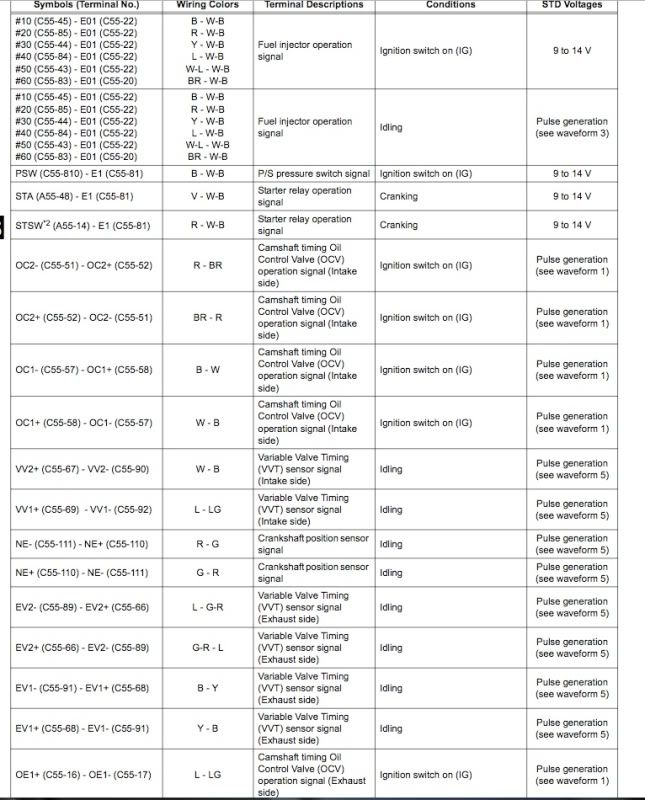

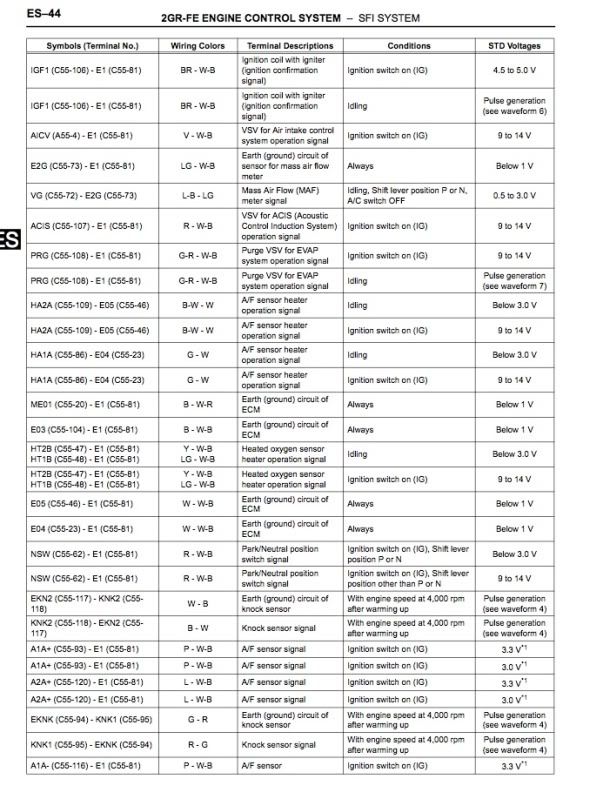

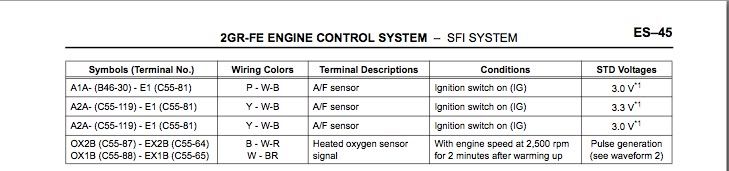

it has pretty much all the wiring diagram info for the 2gr
as soon as i start my build i will also try to add a walk through sort of thing in regards to doing such a swap
http://www.scribd.com/doc/28959346/2GR-FE-Engine-Control-System
cut and paste link into web browser
also a link to a pretty well documented swap
http://mr2oc.com/showthread.php?t=332390
list of things needed from the wreckers/ donor car
- 2GRFE engine
- ECU
- Immobilizer computer (hides between the A/C and the firewall in the Avalon. requires full dash disassembly to get to)
- Immobilizer antenna. This just snaps onto the key cylinder and has a half dozen wires or so going to it
- OBDII connector. (Located at the driver's knees)
- Engine harness, this includes connector A, B & C to the ECU. no need for any of the fuse boxes.
- wiring harness pigtails for ECU connector D & E, the immobilizer pigtail & the immobilizer antenna pigtail
- THE IMMOBILIZER KEY. (this can be worked around but it takes a very cooperative dealer and it still is quite the pain in the rear)
