SW20_3sgte
MR2 Scholar
- Total Posts : 1337
- Scores: 14
- Reward points: 4539
- Joined: 2011/04/07 19:51:15
- Location: Rowville, Victoria
- Status: offline
RE: 3SGE NA Thread - Current Topic 3SGE HKS CAMS
2010/10/22 23:43:19
(permalink)
Wow what an awesome bunch of replies thanks everyone :)
Senol - I look forward to seeing what sort of results you may be able to net.
I remember seeing a 5sfe in america making about 110kw atw with a port and polish, extractors and exhaust. That would be out of 2.2 litre.
I would think 95-100kw was more than capable with a mild Camshaft and
In Terry's writeup he mentioned that the stock ecu would manage to about 270 degree cams (without too much lift of course).
I am quite happy with the performance of the gen 2 3sge and while I could have bought the Turbo model I still have strong goals to see this through :)
|
MCT_MR2
MR2 Deity
- Total Posts : 626
- Scores: 104
- Reward points: 4232
- Joined: 2011/04/07 19:51:15
- Location: Melbourne Victoria Australia
- Status: offline
RE: 3SGE NA Thread - Current Topic 3SGE HKS CAMS
2010/10/22 23:47:35
(permalink)
quote:
Originally posted by SW20_3sge
In Terry's writeup he mentioned that the stock ecu would manage to about 270 degree cams (without too much lift of course).
The thing that will determine whether or not the stock ecu will run it or not is whether or not you have a steady vacum at idle for the ecu to read (hence the not too much lift part.) Maybe contact Terry (he is around on the forum) and he might be able to advise you on what kind of lift you should be looking for, and also the lobe seperation angle to try and aim for.
|
Senol
MR2 Scholar
- Total Posts : 1111
- Scores: 21
- Reward points: 2497
- Joined: 2011/04/07 19:51:15
- Location: Brisbane Queensland Australia
- Status: offline
RE: 3SGE NA Thread - Current Topic 3SGE HKS CAMS
2010/10/23 00:07:46
(permalink)
This reminds me of when I was looking for which type of differential to purchase. I will never buy anything until I do enough research etc. You should do everything "once", so make sure it's what you want and it's right. You will probably do your mods before myself. But I like to plan/ask questions for future referance. It also saves money :)
Ultimately I'd love a 1mzfe conversion, but you can't really get away with that on green p's. (waits for being flamed for being a p-plater that wants more power) yeah.. I hate p-platers in general too.
|
just_ace
Moderator
- Total Posts : 2508
- Scores: 89
- Reward points: 4598
- Joined: 2011/04/07 19:51:15
- Location: perth wa Australia
- Status: offline
RE: 3SGE NA Thread - Current Topic 3SGE HKS CAMS
2010/10/23 02:21:00
(permalink)

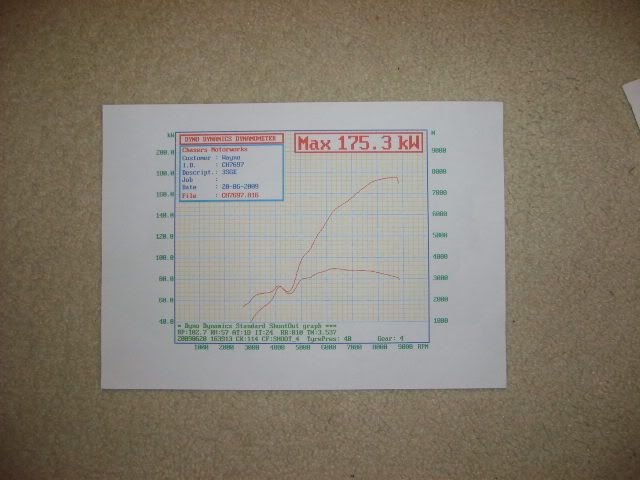

IMHO i don't see how a gen2 will get up to gen3 power without at least some CAM's and a decent zuast. you need to stretch the power band to make more HP, the gen3 has 9.8mm lift on the intake cam and 252 duration along with 10.3CR and bigger intake ports and TB. here's the beams dyno. as you can see there's not much goin on till you rev it.
|
kameleon
Supporter
- Total Posts : 2733
- Scores: 106
- Reward points: 6018
- Joined: 2011/04/07 19:51:15
- Location: melbourne vic Australia
- Status: offline
RE: 3SGE NA Thread - Current Topic 3SGE HKS CAMS
2010/10/23 09:28:53
(permalink)
Thats glen (w w Wayne Kerr) dyno, i remember that day he made that he then switched cams and went back to 150-160 rwkws lol. He used to call my friends workshop and ask questions as my friend builds alot of 3sge's for racing (gen2/3 and beams)
btw it's a blacktop in an old celica.
|
Senol
MR2 Scholar
- Total Posts : 1111
- Scores: 21
- Reward points: 2497
- Joined: 2011/04/07 19:51:15
- Location: Brisbane Queensland Australia
- Status: offline
RE: 3SGE NA Thread - Current Topic 3SGE HKS CAMS
2010/10/23 09:30:36
(permalink)
I didn't realise that the gen3 was that different to the gen2 motor. Does anyone have a link to in depth technical information for both motors? And I wouldn't bother trying to make as much power as a beams with a gen2. It would cost more than an entire conversion..
|
IMR22C
MR2 Aficionado
- Total Posts : 673
- Scores: 13
- Reward points: 3577
- Joined: 2011/04/07 19:51:15
- Location: Newcastle NSW Australia
- Status: offline
RE: 3SGE NA Thread - Current Topic 3SGE HKS CAMS
2010/10/23 10:49:54
(permalink)
Well the difference in power between the Gen2 and Gen3 3SGE's I thought was mainly down to the intake manifold?
|
Senol
MR2 Scholar
- Total Posts : 1111
- Scores: 21
- Reward points: 2497
- Joined: 2011/04/07 19:51:15
- Location: Brisbane Queensland Australia
- Status: offline
RE: 3SGE NA Thread - Current Topic 3SGE HKS CAMS
2010/10/23 11:21:35
(permalink)
quote:
Originally posted by IMR22C
Well the difference in power between the Gen2 and Gen3 3SGE's I thought was mainly down to the intake manifold?
Thats what i thought :S The power difference is at max 10kw isn't it?
|
IMR22C
MR2 Aficionado
- Total Posts : 673
- Scores: 13
- Reward points: 3577
- Joined: 2011/04/07 19:51:15
- Location: Newcastle NSW Australia
- Status: offline
RE: 3SGE NA Thread - Current Topic 3SGE HKS CAMS
2010/10/23 17:35:29
(permalink)
|
surok
MR2 Scholar
- Total Posts : 2252
- Scores: -31
- Reward points: 4416
- Joined: 2011/04/07 19:51:15
- Location: Albania
- Status: offline
RE: 3SGE NA Thread - Current Topic 3SGE HKS CAMS
2010/10/23 17:36:24
(permalink)
|
just_ace
Moderator
- Total Posts : 2508
- Scores: 89
- Reward points: 4598
- Joined: 2011/04/07 19:51:15
- Location: perth wa Australia
- Status: offline
RE: 3SGE NA Thread - Current Topic 3SGE HKS CAMS
2010/10/23 17:51:44
(permalink)
quote:
Originally posted by kameleon
Thats glen (w w Wayne Kerr) dyno, i remember that day he made that he then switched cams and went back to 150-160 rwkws lol. He used to call my friends workshop and ask questions as my friend builds alot of 3sge's for racing (gen2/3 and beams)
btw it's a blacktop in an old celica.
if that's the case then i feel sorry for the guy that was supplied the dyno sheet, as he paid alot of money to guy i think name is glenn and it was a redtop beams which was supposedly set up in an old celice for tuning purposes then supposedly sent back over here(wa) to be put back in the st184.
|
just_ace
Moderator
- Total Posts : 2508
- Scores: 89
- Reward points: 4598
- Joined: 2011/04/07 19:51:15
- Location: perth wa Australia
- Status: offline
RE: 3SGE NA Thread - Current Topic 3SGE HKS CAMS
2010/10/23 17:55:45
(permalink)
quote:
Originally posted by IMR22C
Well the difference in power between the Gen2 and Gen3 3SGE's I thought was mainly down to the intake manifold?
well no. the intake manifolds are different but so are the heads, CR, CAM's. the gen3 NA heads are the same port design as the gen3 turbo heads. the gen2 ports are smaller than all other 3s heads. tho this doesn't mean they lack flow. they have a more down draught port compared to the gen3 port.
|
MRTurbo
SA Moderator
- Total Posts : 2894
- Scores: 81
- Reward points: 4791
- Joined: 2011/04/07 19:51:15
- Location: Adelaide SA Australia
- Status: offline
RE: 3SGE NA Thread - Current Topic 3SGE HKS CAMS
2010/10/25 10:03:11
(permalink)
quote:
Originally posted by SW20_3sge
I am quite happy with the performance of the gen 2 3sge and while I could have bought the Turbo model I still have strong goals to see this through :)
But have you driven a turbo one? I recon your opinion would change
|
Senol
MR2 Scholar
- Total Posts : 1111
- Scores: 21
- Reward points: 2497
- Joined: 2011/04/07 19:51:15
- Location: Brisbane Queensland Australia
- Status: offline
RE: 3SGE NA Thread - Current Topic 3SGE HKS CAMS
2010/10/26 20:35:22
(permalink)
quote:
Originally posted by MRTurbo
quote:
Originally posted by SW20_3sge
I am quite happy with the performance of the gen 2 3sge and while I could have bought the Turbo model I still have strong goals to see this through :)
But have you driven a turbo one? I recon your opinion would change
hey now don't be a tease some of us can't legally :(
|
MRTurbo
SA Moderator
- Total Posts : 2894
- Scores: 81
- Reward points: 4791
- Joined: 2011/04/07 19:51:15
- Location: Adelaide SA Australia
- Status: offline
RE: 3SGE NA Thread - Current Topic 3SGE HKS CAMS
2010/10/27 10:07:04
(permalink)
quote:
Originally posted by Senol
hey now don't be a tease some of us can't legally :(
Then you're in the wrong State. [:p]
|
